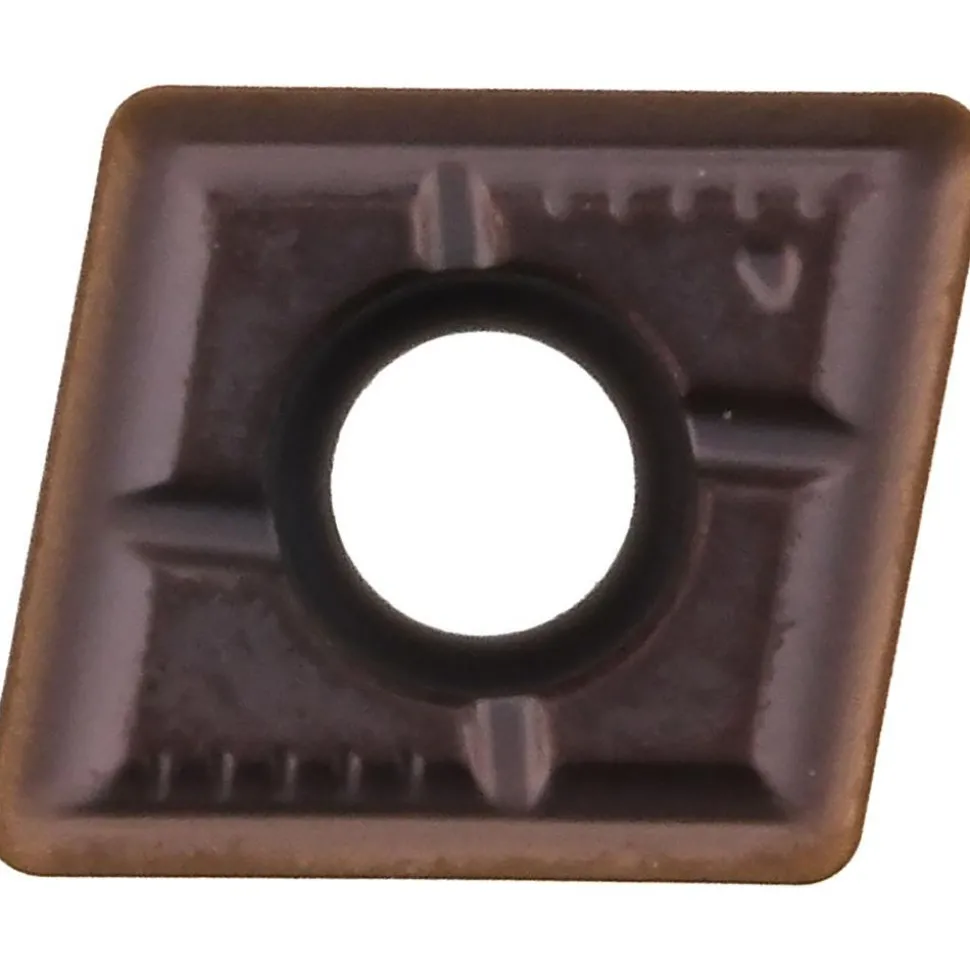

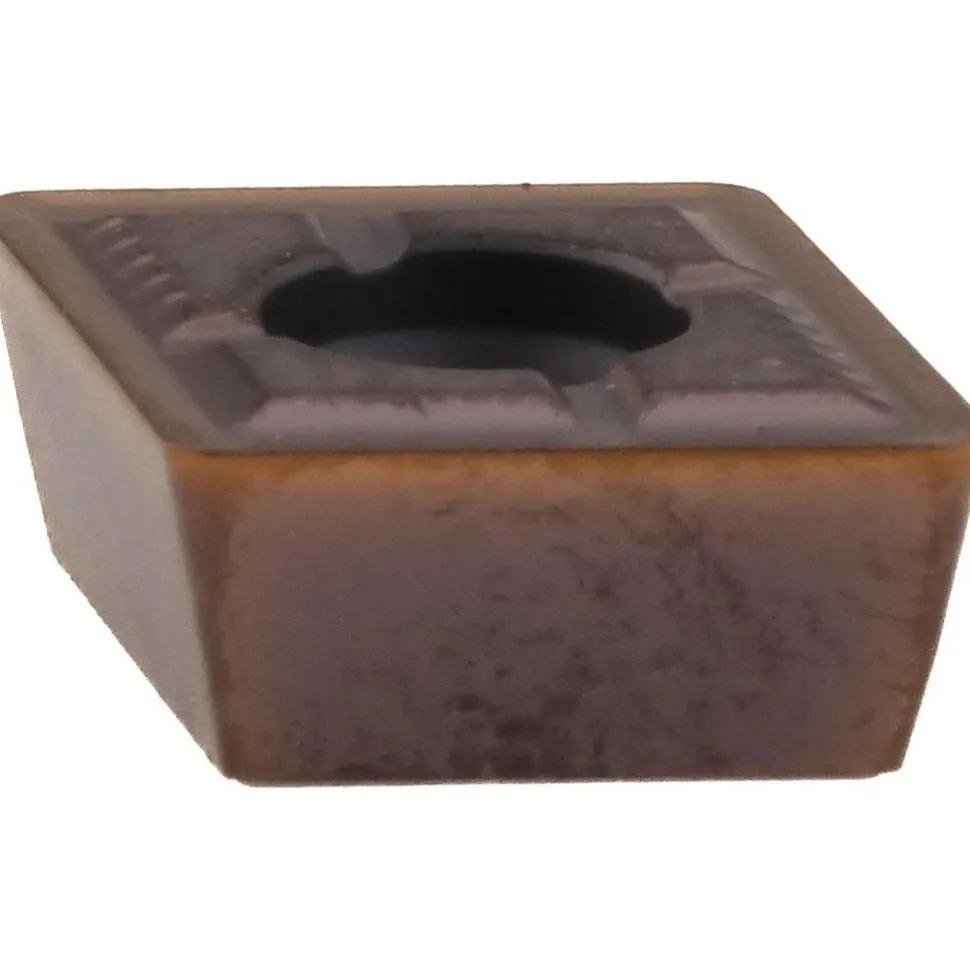

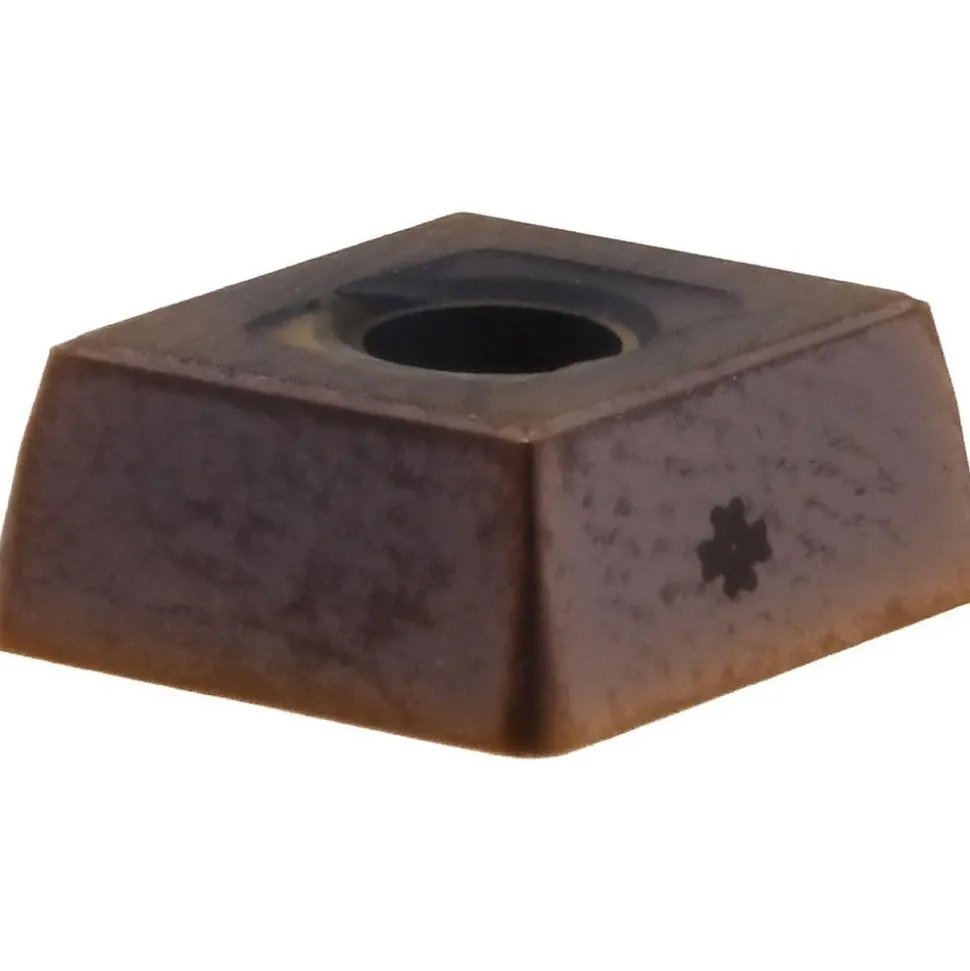

Indexable Drill Insert: WDXT073506G ACP300, Carbide

Original price was: 14,00 $.Current price is: 10,89 $.

Specifications

Insert Style: WDXT	Insert Material: Carbide
Manufacturer Grade: ACP300	Inscribed Circle (Decimal Inch): 0.2953
Corner Radius (Decimal Inch): 0.0236	Chipbreaker: G
Shape: Parallelogram	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; K; M; N	Insert Size: 073506
Width (Decimal Inch – 4 Decimals): 0.2953	Length (Decimal Inch – 4 Decimals): 0.2953
Thickness (Decimal Inch – 4 Decimals): 0.1378	Coating/Finish: AlCrN; TiAlN
Insert Size Code: 07	Insert Hand: Right Hand
UNSPSC Code: 23242105	Country of Origin: Japan
Insert Style: WDXT
Insert Material: Carbide
Manufacturer Grade: ACP300
Inscribed Circle (Decimal Inch): 0.2953
Corner Radius (Decimal Inch): 0.0236
Chipbreaker: G
Shape: Parallelogram
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; K; M; N
Insert Size: 073506
Width (Decimal Inch – 4 Decimals): 0.2953
Length (Decimal Inch – 4 Decimals): 0.2953
Thickness (Decimal Inch – 4 Decimals): 0.1378
Coating/Finish: AlCrN; TiAlN
Insert Size Code: 07
Insert Hand: Right Hand
UNSPSC Code: 23242105
Country of Origin: Japan
