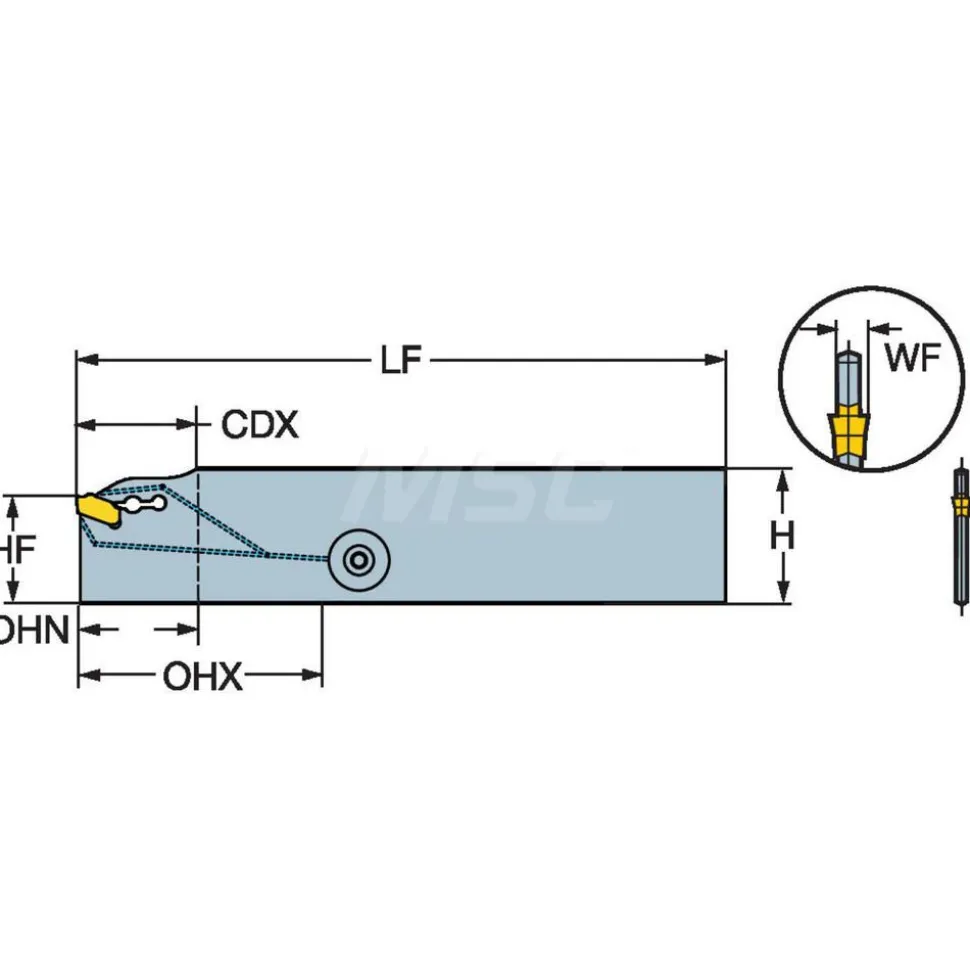

Indexable Grooving Blade: 1.2559″ High, Neutral

130,89 $

Specifications

Cutting Direction: Neutral	Blade Style: QD-NN1..C..A
Blade Height (mm): 31.90	Blade Height (Decimal Inch): 1.2559
Blade Width (Decimal Inch): 0.1100	Blade Width (mm): 2.67
Maximum Depth of Cut (Decimal Inch): 2.3622	Maximum Depth of Cut (mm): 60.00
Insert Holding Method: Clamp	Maximum Insert Width (mm): 2.68
Maximum Insert Width (Decimal Inch): 0.1055	Compatible Insert Style: QD-NN1..C..A
Series: CoroCut QD	Compatible Cartridge Size: 25
Cutting Tool Application: Parting	Blade Overall Length (mm): 150.00
Blade Overall Length (Decimal Inch): 5.9055	Manufacturers Catalog Number: 6634642
Insert Seat Size: G	Cartridge Size: 25
Single Or Double End: Single	UNSPSC Code: 27112809
Country of Origin: Sweden
Cutting Direction: Neutral
Blade Style: QD-NN1..C..A
Blade Height (mm): 31.90
Blade Height (Decimal Inch): 1.2559
Blade Width (Decimal Inch): 0.1100
Blade Width (mm): 2.67
Maximum Depth of Cut (Decimal Inch): 2.3622
Maximum Depth of Cut (mm): 60.00
Insert Holding Method: Clamp
Maximum Insert Width (mm): 2.68
Maximum Insert Width (Decimal Inch): 0.1055
Compatible Insert Style: QD-NN1..C..A
Series: CoroCut QD
Compatible Cartridge Size: 25

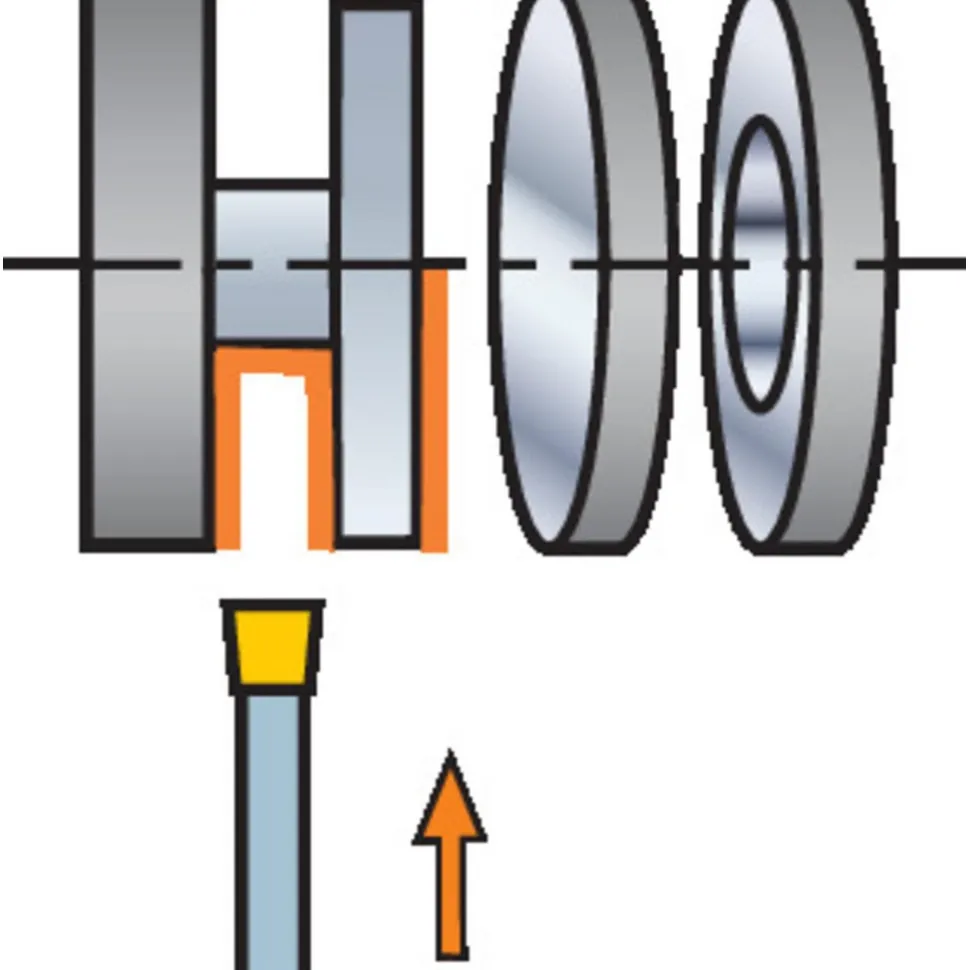

Cutting Tool Application: Parting
Blade Overall Length (mm): 150.00
Blade Overall Length (Decimal Inch): 5.9055
Manufacturers Catalog Number: 6634642
Insert Seat Size: G
Cartridge Size: 25
Single Or Double End: Single
UNSPSC Code: 27112809
Country of Origin: Sweden
