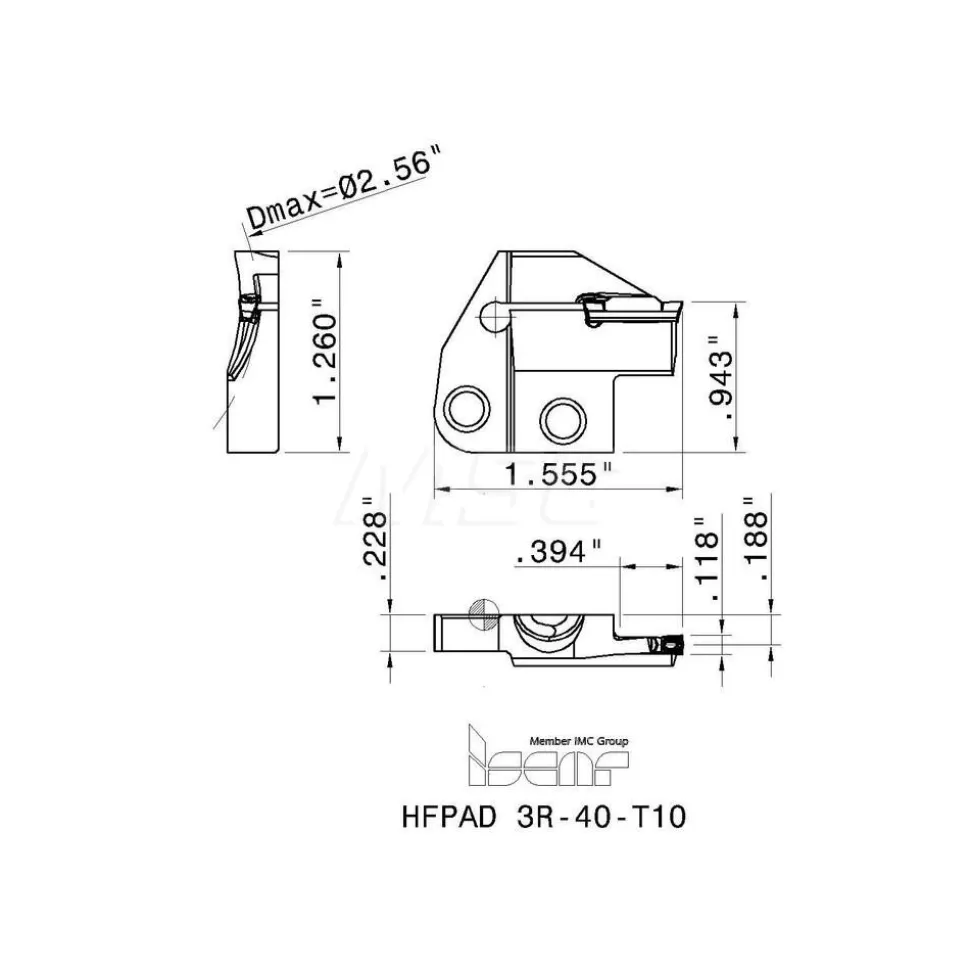

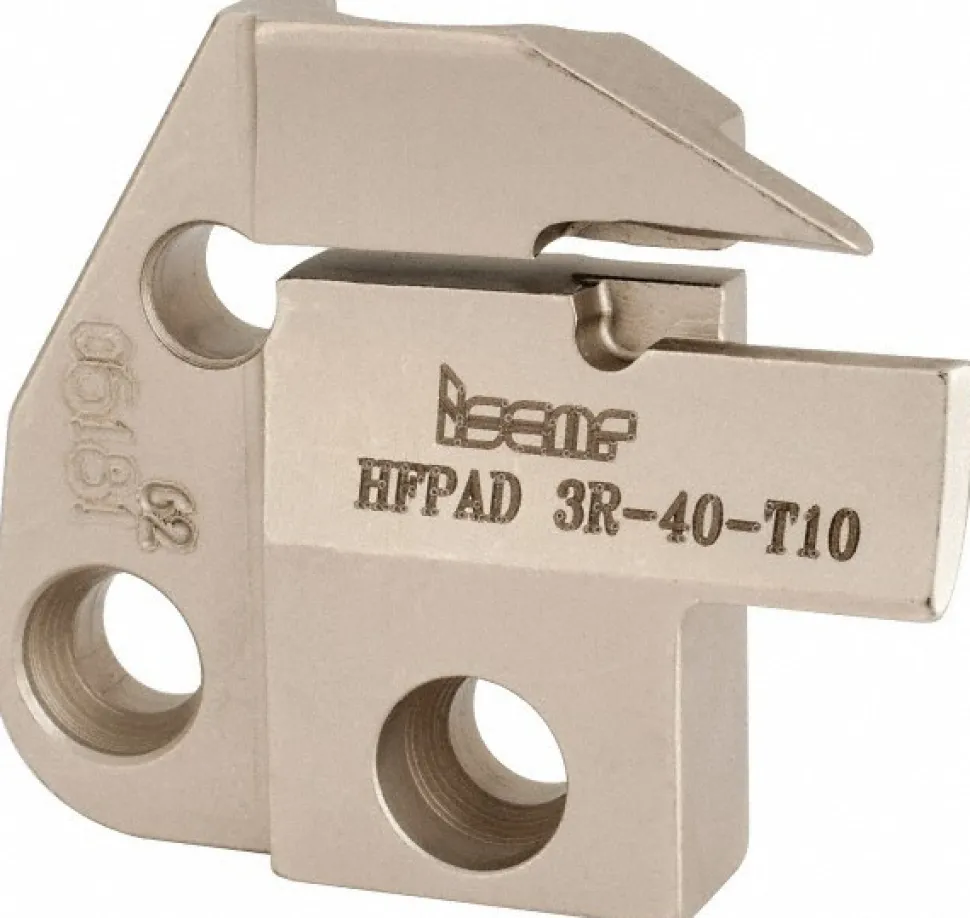

Indexable Grooving Blade: 1.2598″ High, Right Hand, 0.1181″ Min Width
120,99 $
Specifications
| Cutting Direction: Right Hand | Minimum Groove Width (Decimal Inch): 0.1181 |
| Minimum Groove Width (mm): 3.00 | Blade Style: HFPAD |
| Blade Height (mm): 32.00 | Blade Height (Decimal Inch): 1.2598 |
| Blade Width (Decimal Inch): 0.2300 | Blade Width (mm): 5.80 |
| Maximum Depth of Cut (Decimal Inch): 0.3937 | Maximum Depth of Cut (mm): 10.00 |
| Minimum Workpiece Diameter (Decimal Inch): 1.5748 | Minimum Workpiece Diameter (mm): 40.00 |
| Maximum Workpiece Diameter (Decimal Inch): 2.5591 | Maximum Workpiece Diameter (mm): 65.00 |
| Compatible Insert Style: GRIP; HGN-J; HGN-UT; HGPL; HGN-C | Series: Modular Grip |
| Overall Length (mm): 39.50 | Overall Length (Decimal Inch): 1.5551 |
| Cutting Tool Application: Grooving; Turning; Parting | Standards: ISO 13399 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| Cutting Direction: Right Hand | |
| Minimum Groove Width (Decimal Inch): 0.1181 | |
| Minimum Groove Width (mm): 3.00 | |
| Blade Style: HFPAD | |
| Blade Height (mm): 32.00 | |
| Blade Height (Decimal Inch): 1.2598 | |
| Blade Width (Decimal Inch): 0.2300 | |
| Blade Width (mm): 5.80 | |
| Maximum Depth of Cut (Decimal Inch): 0.3937 | |
| Maximum Depth of Cut (mm): 10.00 | |
| Minimum Workpiece Diameter (Decimal Inch): 1.5748 | |
| Minimum Workpiece Diameter (mm): 40.00 | |
| Maximum Workpiece Diameter (Decimal Inch): 2.5591 | |
| Maximum Workpiece Diameter (mm): 65.00 | |
| Compatible Insert Style: GRIP; HGN-J; HGN-UT; HGPL; HGN-C | |
| Series: Modular Grip | |
| Overall Length (mm): 39.50 | |
| Overall Length (Decimal Inch): 1.5551 | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 64249121 |
| Mfr# | 2550113 |
