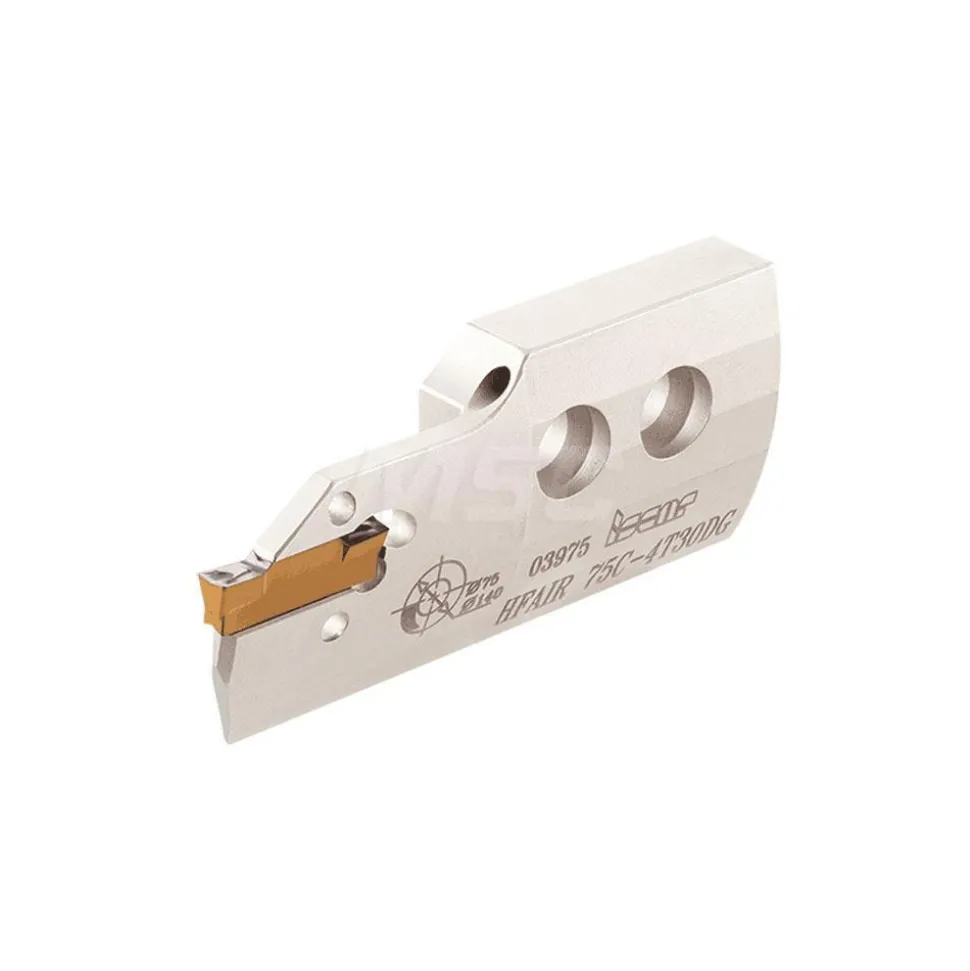

Indexable Grooving Blade: Right Hand, 0.1575″ Min Width
Original price was: 287,00 $.124,99 $Current price is: 124,99 $.
Specifications
| Cutting Direction: Right Hand | Minimum Groove Width (Decimal Inch): 0.1575 |
| Minimum Groove Width (mm): 4.00 | Blade Style: HFAI |
| Blade Width (Decimal Inch): 0.4300 | Blade Width (mm): 10.90 |
| Maximum Depth of Cut (Decimal Inch): 1.1811 | Maximum Depth of Cut (mm): 30.00 |
| Minimum Workpiece Diameter (Decimal Inch): 2.9500 | Minimum Workpiece Diameter (mm): 75.00 |
| Maximum Workpiece Diameter (Decimal Inch): 5.5100 | Maximum Workpiece Diameter (mm): 140.00 |
| Compatible Insert Style: HFPR/L; HFPR/L (Full Radius) | Series: Heliface |
| Overall Length (mm): 68.50 | Overall Length (Decimal Inch): 2.6969 |
| Cutting Tool Application: Grooving; Turning; Parting | Standards: ISO 13399 |
| Maximum Groove Width (Decimal Inch): 0.1575 | Maximum Groove Width (mm): 4.00 |
| Complete Insert Compatibility: HFPR 4020; HFPR 4004 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| Cutting Direction: Right Hand | |
| Minimum Groove Width (Decimal Inch): 0.1575 | |
| Minimum Groove Width (mm): 4.00 | |
| Blade Style: HFAI | |
| Blade Width (Decimal Inch): 0.4300 | |
| Blade Width (mm): 10.90 | |
| Maximum Depth of Cut (Decimal Inch): 1.1811 | |
| Maximum Depth of Cut (mm): 30.00 | |
| Minimum Workpiece Diameter (Decimal Inch): 2.9500 | |
| Minimum Workpiece Diameter (mm): 75.00 | |
| Maximum Workpiece Diameter (Decimal Inch): 5.5100 | |
| Maximum Workpiece Diameter (mm): 140.00 | |
| Compatible Insert Style: HFPR/L; HFPR/L (Full Radius) | |
| Series: Heliface | |
| Overall Length (mm): 68.50 | |
| Overall Length (Decimal Inch): 2.6969 | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| Maximum Groove Width (Decimal Inch): 0.1575 | |
| Maximum Groove Width (mm): 4.00 | |
| Complete Insert Compatibility: HFPR 4020; HFPR 4004 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 30646145 |
| Mfr# | 2500725 |
