Sale!

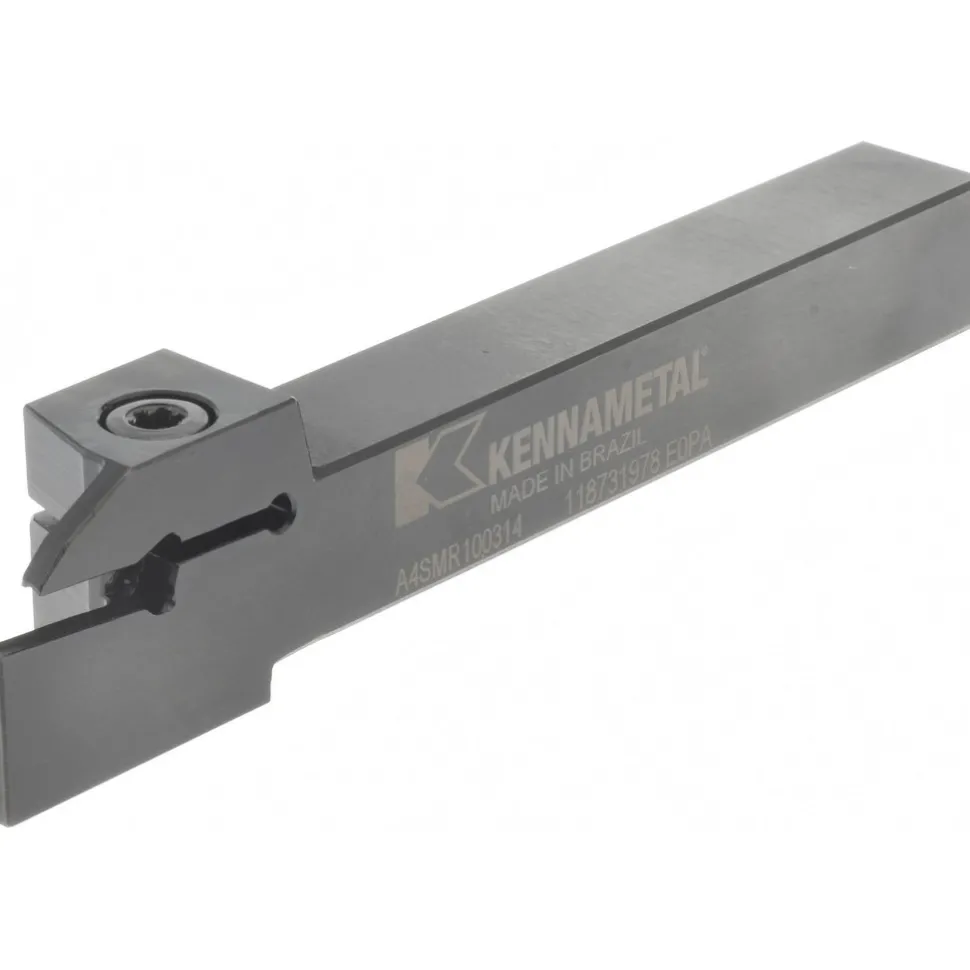

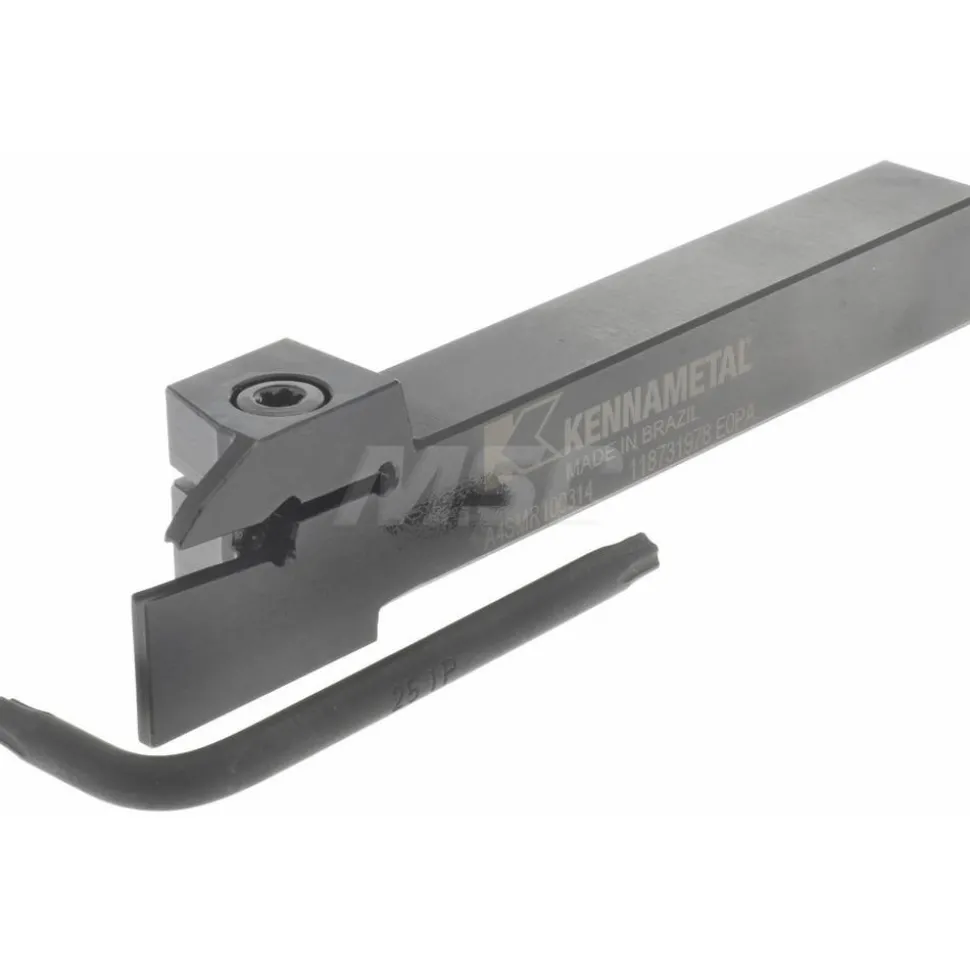

Indexable Grooving-Cutoff Toolholder: A4SMR100314, 3 mm Min Groove Width, 14 mm Max Depth of Cut, Right Hand
Original price was: 227,00 $.128,89 $Current price is: 128,89 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.5500 | Maximum Depth of Cut (mm): 14.00 |
| Minimum Groove Width (Decimal Inch): 0.1180 | Minimum Groove Width (mm): 3.00 |
| Toolholder Style: A4SM | Insert Holding Method: Clamp |
| Insert Compatibility: A4..03.. | Shank Height (mm): 15.88 |
| Shank Height (Inch): 5/8 | Shank Height (Decimal Inch): 0.6250 |
| Shank Length (mm): 92.00 | Shank Length (Decimal Inch): 3.6220 |
| Shank Width/Diameter (Decimal Inch): 0.6250 | Shank Width/Diameter (mm): 15.88 |
| Shank Width/Diameter (Inch): 5/8 | Series: A4 |
| Overall Length (mm): 127.00 | Full Radius Insert: No |
| Head Height (Decimal Inch): 1.0300 | Head Height (mm): 26.20 |
| Head Length (Decimal Inch): 1.3800 | Head Length (mm): 35.00 |
| Insert Seat Size: 3.0 | Coating Classification: Kennametal |
| MSC/Manufacturer Number: A4SMR/L100314 | Coolant Through: No |
| UNSPSC Code: 23153308 | |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.5500 | |
| Maximum Depth of Cut (mm): 14.00 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: A4SM | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: A4..03.. | |
| Shank Height (mm): 15.88 | |
| Shank Height (Inch): 5/8 | |
| Shank Height (Decimal Inch): 0.6250 | |
| Shank Length (mm): 92.00 | |
| Shank Length (Decimal Inch): 3.6220 | |
| Shank Width/Diameter (Decimal Inch): 0.6250 | |
| Shank Width/Diameter (mm): 15.88 | |
| Shank Width/Diameter (Inch): 5/8 | |
| Series: A4 | |
| Overall Length (mm): 127.00 | |
| Full Radius Insert: No | |
| Head Height (Decimal Inch): 1.0300 | |
| Head Height (mm): 26.20 | |
| Head Length (Decimal Inch): 1.3800 | |
| Head Length (mm): 35.00 | |
| Insert Seat Size: 3.0 | |
| Coating Classification: Kennametal | |
| MSC/Manufacturer Number: A4SMR/L100314 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 |
| MSC# | 01310929 |
| Mfr# | 1953177 |
| Big Book# | 903 |
