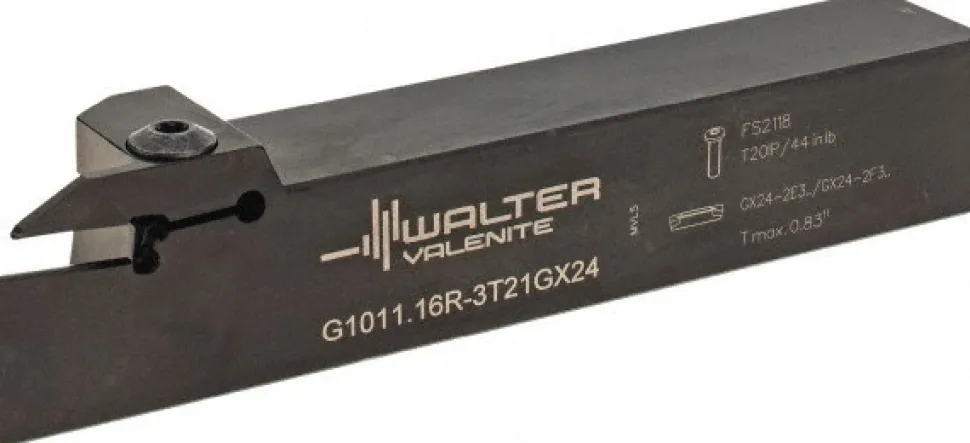

Indexable Grooving-Cutoff Toolholder: G1011.16R-3T2, 3 to 3.18 mm Groove Width, 21.01 mm Max Depth of Cut, Right Hand
Original price was: 254,00 $.140,99 $Current price is: 140,99 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.8270 | Maximum Depth of Cut (mm): 21.01 |
| Maximum Groove Width (Decimal Inch): 0.1250 | Maximum Groove Width (mm): 3.18 |
| Minimum Groove Width (Decimal Inch): 0.1180 | Minimum Groove Width (mm): 3.00 |
| Toolholder Style: G1011 | Insert Holding Method: Screw |
| Compatible Insert Size Code: GX24-2E3/F3 | Insert Compatibility: GX24-2E3/F3.. |
| Shank Height (mm): 25.40 | Shank Height (Decimal Inch): 1.0000 |
| Shank Length (mm): 110.00 | Shank Length (Decimal Inch): 4.3307 |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Width/Diameter (mm): 25.40 |
| Series: G1011 | Overall Length (mm): 150.01 |
| Overall Length (Decimal Inch): 5.9060 | Cutting Tool Application: Grooving; Cut-Off |
| Full Radius Insert: No | Back of Bar to Cutting Edge (Decimal Inch): 1.0160 |
| Head Length (Decimal Inch): 1.5750 | Head Length (mm): 40.01 |
| Primary Workpiece Material: Universal | Primary Workpiece Material Code: P; S; H; K; M; N |
| Complete Insert Compatibility: GX24-2E300N030-GD3; GX24-2E300N150-RD4; GX24-2E300N03-UF4; GX24-2E300N02-CF6; GX24-2E300N03-UD6; GX24-2E300N030-UA4; GX24-2E300N020-CE4; GX24-2E300N030-UF4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N15-RD4; GX24-2E300N03-GD3; GX24-2E300N03-GD6 | Insert Corner Radius (Decimal Inch): 0.0630 |
| Coolant Through: No | UNSPSC Code: 23153308 |
| Country of Origin: Romania | |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.8270 | |
| Maximum Depth of Cut (mm): 21.01 | |
| Maximum Groove Width (Decimal Inch): 0.1250 | |
| Maximum Groove Width (mm): 3.18 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: G1011 | |
| Insert Holding Method: Screw | |
| Compatible Insert Size Code: GX24-2E3/F3 | |
| Insert Compatibility: GX24-2E3/F3.. | |
| Shank Height (mm): 25.40 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (mm): 110.00 | |
| Shank Length (Decimal Inch): 4.3307 | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (mm): 25.40 | |
| Series: G1011 | |
| Overall Length (mm): 150.01 | |
| Overall Length (Decimal Inch): 5.9060 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Full Radius Insert: No | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0160 | |
| Head Length (Decimal Inch): 1.5750 | |
| Head Length (mm): 40.01 | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Complete Insert Compatibility: GX24-2E300N030-GD3; GX24-2E300N150-RD4; GX24-2E300N03-UF4; GX24-2E300N02-CF6; GX24-2E300N03-UD6; GX24-2E300N030-UA4; GX24-2E300N020-CE4; GX24-2E300N030-UF4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N15-RD4; GX24-2E300N03-GD3; GX24-2E300N03-GD6 | |
| Insert Corner Radius (Decimal Inch): 0.0630 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Romania |
| MSC# | 71970131 |
| Mfr# | 5622791 |
