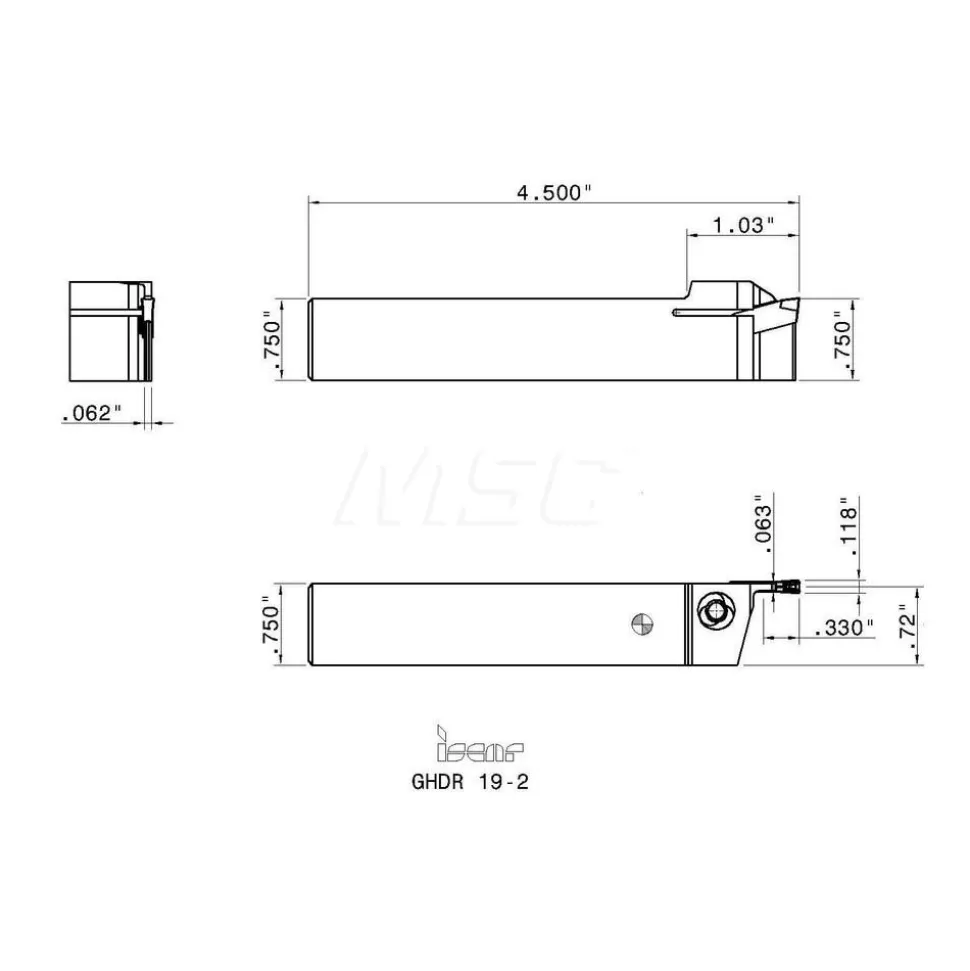

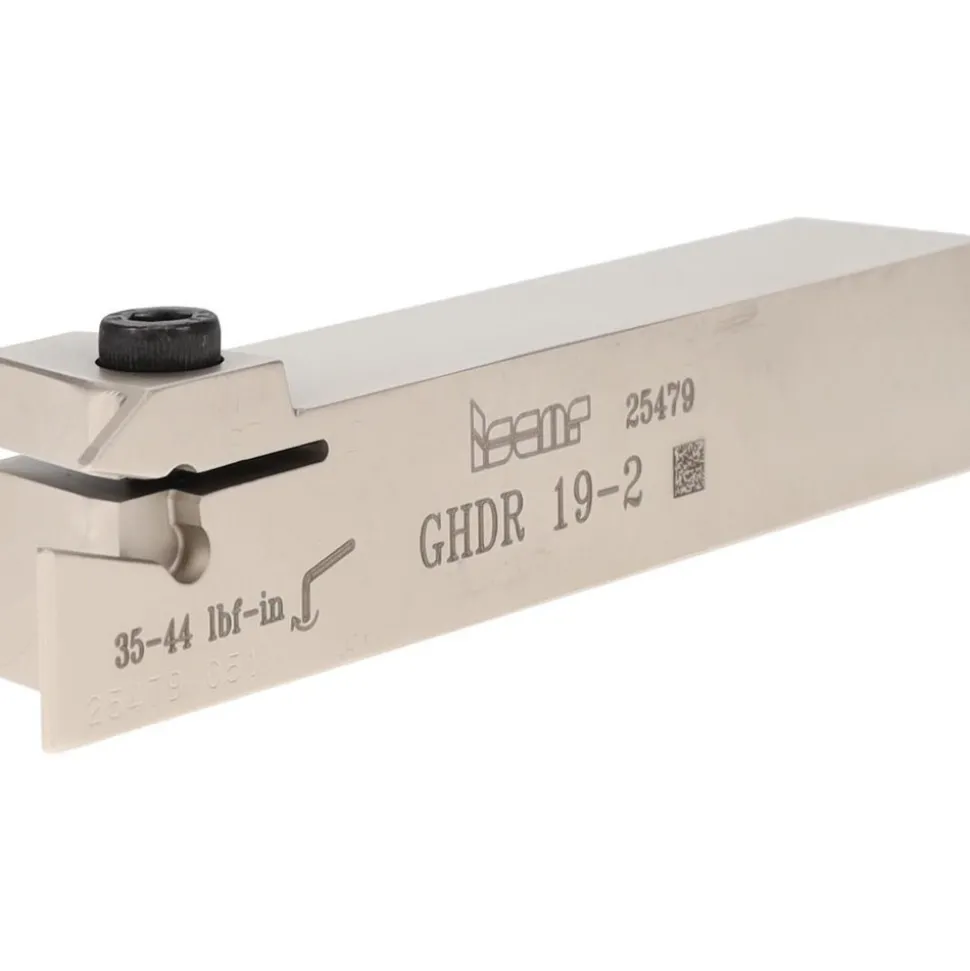

Indexable Grooving-Cutoff Toolholder: GHDR 19-2, 0.016 to 1/8″ Groove Width, 0.33″ Max Depth of Cut, Right Hand
Original price was: 201,00 $.120,89 $Current price is: 120,89 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.3300 | Maximum Groove Width (Decimal Inch): 0.1250 |
| Minimum Groove Width (Decimal Inch): 0.0160 | Toolholder Style: GHD |
| Insert Holding Method: Clamp | Compatible Insert Size Code: GIP-UN; GIPY; GPV; GIM-W-RA/LA; TIP-P-BSPT; GIMY-F; GIA-K; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; GIG; TIP-P-UN; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; GIP (full radius W); TIP-MT; GITM; GIP (flat top W); GIM-W |
| Insert Compatibility: GI..; GPV..; TIP.. | Shank Height (Decimal Inch): 0.7500 |
| Shank Length (Decimal Inch): 4.5000 | Shank Width/Diameter (Decimal Inch): 0.7500 |
| Shank Width/Diameter (Inch): 3/4 | Series: Cut Grip |
| Overall Length (Decimal Inch): 4.5000 | Cutting Tool Application: Grooving; Cut-Off |
| Full Radius Insert: No | Head Length (Decimal Inch): 1.0300 |
| Standards: ISO 13399 | MSC/Manufacturer Number: GHDR/L 19-2 |
| Coolant Through: No | UNSPSC Code: 23153308 |
| Country of Origin: Israel | |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.3300 | |
| Maximum Groove Width (Decimal Inch): 0.1250 | |
| Minimum Groove Width (Decimal Inch): 0.0160 | |
| Toolholder Style: GHD | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: GIP-UN; GIPY; GPV; GIM-W-RA/LA; TIP-P-BSPT; GIMY-F; GIA-K; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; GIG; TIP-P-UN; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; GIP (full radius W); TIP-MT; GITM; GIP (flat top W); GIM-W | |
| Insert Compatibility: GI..; GPV..; TIP.. | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Length (Decimal Inch): 4.5000 | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Series: Cut Grip | |
| Overall Length (Decimal Inch): 4.5000 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Full Radius Insert: No | |
| Head Length (Decimal Inch): 1.0300 | |
| Standards: ISO 13399 | |
| MSC/Manufacturer Number: GHDR/L 19-2 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 60784303 |
| Mfr# | 2800152 |
| Big Book# | 886 |
