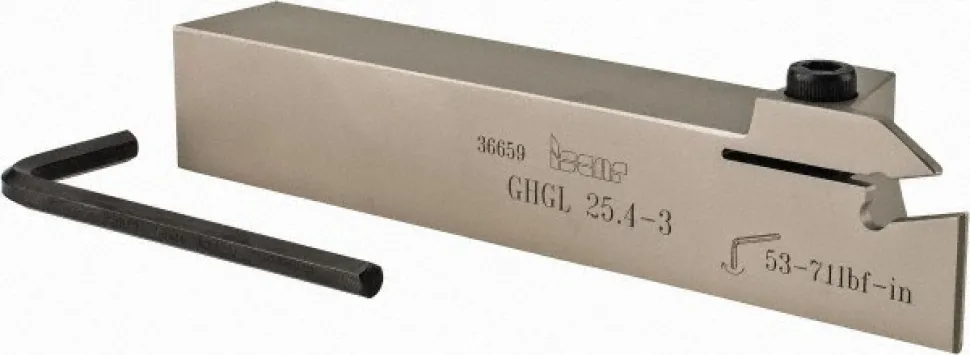

Indexable Grooving-Cutoff Toolholder: GHGL 25.4-3, 0.118 to 0.157″ Groove Width, Left Hand
130,99 $
Specifications
| Internal or External: External | Hand of Holder: Left Hand |
| Maximum Groove Width (Decimal Inch): 0.1570 | Minimum Groove Width (Decimal Inch): 0.1180 |
| Toolholder Style: GHG | Insert Holding Method: Clamp |
| Compatible Insert Size Code: GIPY; GIM-W-RA/LA; TIP-P-BSPT; GIF-E; GIMY-F; GIA-K; GIMF; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; TIP-P-UN; GIF; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; TIP-MT; GITM; GIM-W | Insert Compatibility: GI..; TIP |
| Shank Height (Decimal Inch): 1.0000 | Shank Length (Decimal Inch): 4.5800 |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Width/Diameter (Inch): 1 |
| Series: Cut Grip | Overall Length (Decimal Inch): 6.0000 |
| Cutting Tool Application: Grooving; Cut-Off | Back of Bar to Cutting Edge (Decimal Inch): 0.9500 |
| Head Length (Decimal Inch): 1.4200 | Standards: ISO 13399 |
| Manufacturers Catalog Number: GHGL 25.4-3 | Complete Insert Compatibility: GIA 4.00K-0.40; GIF 4.45-0.15; GIF 3.98-0.20; GIA 4.00K-0.80; GIF 3.74-0.20; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.00E-0.40; GIF 4.23-0.10; GIF 4.78-2.39; GIA 5.00K-0.80; GIA 3.00K-0.40; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 4.78-0.55; GIF 3.56-0.20 |
| Insert Seat Size: 0.1 | Coolant Through: No |
| UNSPSC Code: 23153308 | Country of Origin: Israel |
| Internal or External: External | |
| Hand of Holder: Left Hand | |
| Maximum Groove Width (Decimal Inch): 0.1570 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Toolholder Style: GHG | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: GIPY; GIM-W-RA/LA; TIP-P-BSPT; GIF-E; GIMY-F; GIA-K; GIMF; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; TIP-P-UN; GIF; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; TIP-MT; GITM; GIM-W | |
| Insert Compatibility: GI..; TIP | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (Decimal Inch): 4.5800 | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (Inch): 1 | |
| Series: Cut Grip | |
| Overall Length (Decimal Inch): 6.0000 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.9500 | |
| Head Length (Decimal Inch): 1.4200 | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: GHGL 25.4-3 | |
| Complete Insert Compatibility: GIA 4.00K-0.40; GIF 4.45-0.15; GIF 3.98-0.20; GIA 4.00K-0.80; GIF 3.74-0.20; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.00E-0.40; GIF 4.23-0.10; GIF 4.78-2.39; GIA 5.00K-0.80; GIA 3.00K-0.40; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 4.78-0.55; GIF 3.56-0.20 | |
| Insert Seat Size: 0.1 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 60785466 |
| Mfr# | 2800242 |
