Sale!
Indexable Grooving-Cutoff Toolholder: LF123G079-12B, 3 to 4 mm Groove Width, 20.07 mm Max Depth of Cut, Left Hand
Original price was: 253,00 $.128,89 $Current price is: 128,89 $.

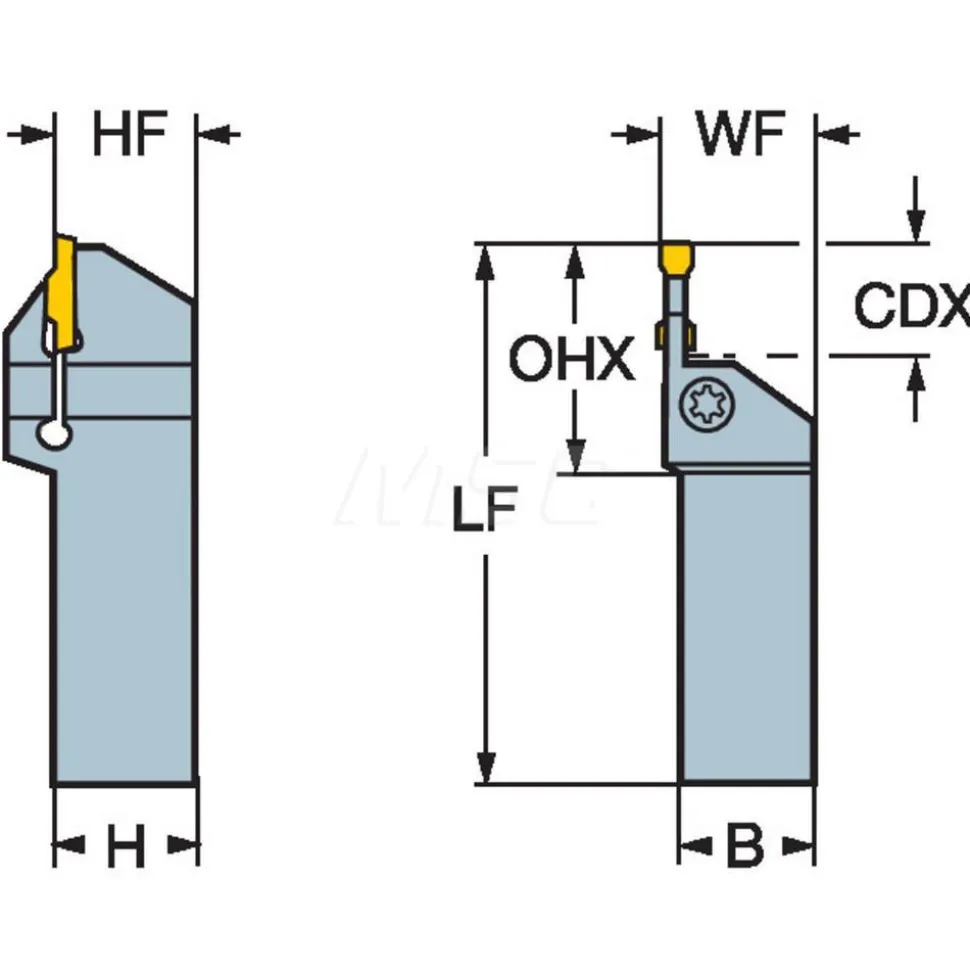

Specifications
| Internal or External: External | Hand of Holder: Left Hand |
| Maximum Depth of Cut (Decimal Inch): 0.7900 | Maximum Depth of Cut (mm): 20.07 |
| Maximum Groove Width (mm): 4.00 | Minimum Groove Width (Decimal Inch): 0.1181 |
| Minimum Groove Width (mm): 3.00 | Toolholder Style: LF123..B |

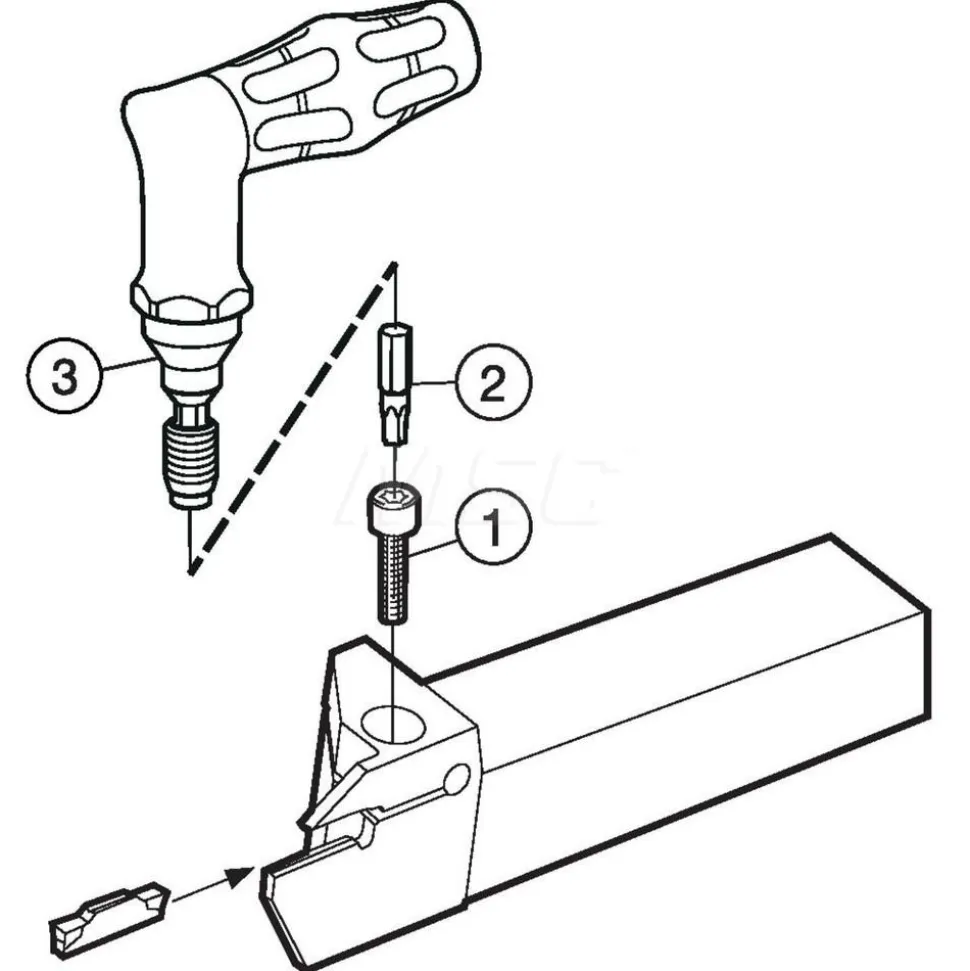

| Insert Holding Method: Clamp | Compatible Insert Size Code: N123G2 |
| Insert Compatibility: N123G2-0300-CM | Shank Height (mm): 19.05 |
| Shank Height (Inch): 3/4 | Shank Height (Decimal Inch): 0.7500 |
| Shank Length (mm): 104.65 | Shank Length (Decimal Inch): 4.1200 |
| Shank Width/Diameter (Decimal Inch): 0.7500 | Shank Width/Diameter (mm): 19.05 |
| Shank Width/Diameter (Inch): 3/4 | Series: CoroCut 1-2 |

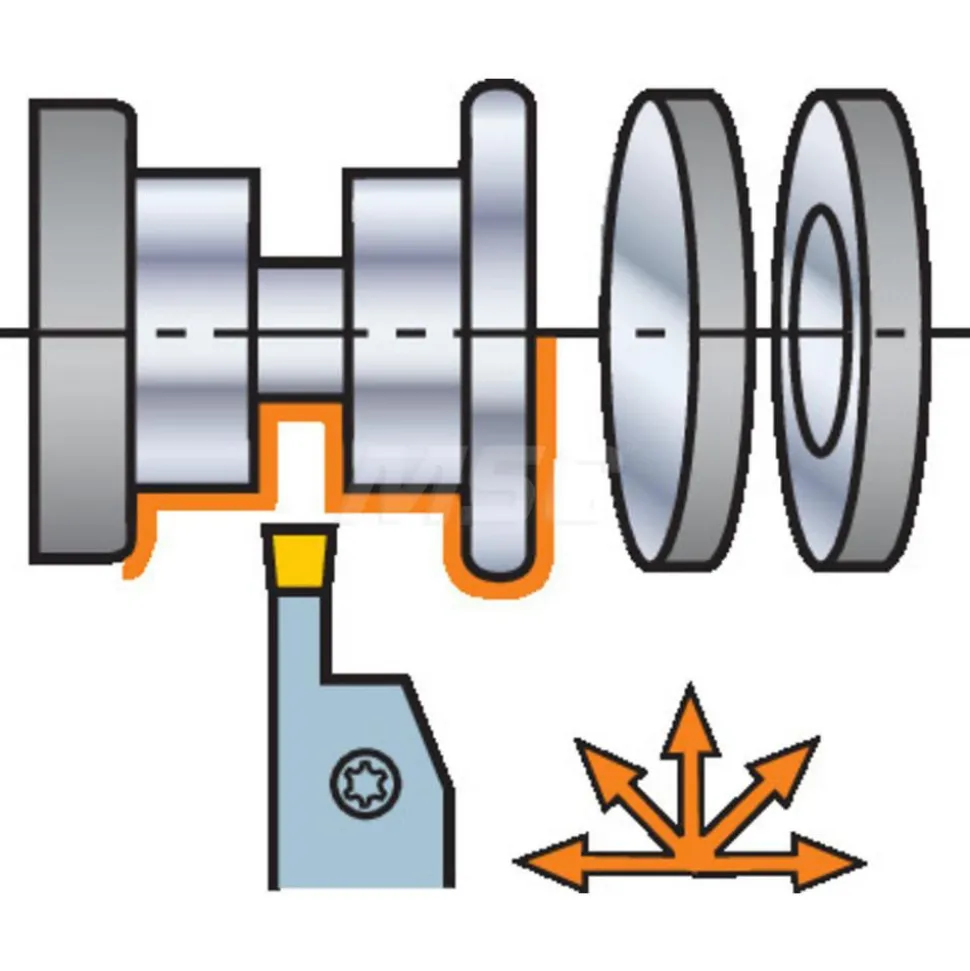

| Overall Length (mm): 127.00 | Cutting Tool Application: Grooving; Cut-Off; Parting |
| Maximum Overhang (Inch): 0.8800 | Back of Bar to Cutting Edge (Decimal Inch): 5.0000 |
| Head Height (Decimal Inch): 0.7500 | Head Height (mm): 19.05 |
| Head Length (Decimal Inch): 0.7500 | Head Length (mm): 19.05 |
| Manufacturers Catalog Number: LF123G079-12B | Coolant Through: No |
| UNSPSC Code: 27112809 | Country of Origin: VARIOUS |
| Internal or External: External | |
| Hand of Holder: Left Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.7900 | |
| Maximum Depth of Cut (mm): 20.07 | |
| Maximum Groove Width (mm): 4.00 | |
| Minimum Groove Width (Decimal Inch): 0.1181 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: LF123..B | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: N123G2 | |
| Insert Compatibility: N123G2-0300-CM | |
| Shank Height (mm): 19.05 | |
| Shank Height (Inch): 3/4 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Length (mm): 104.65 | |
| Shank Length (Decimal Inch): 4.1200 | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (mm): 19.05 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Series: CoroCut 1-2 | |
| Overall Length (mm): 127.00 | |
| Cutting Tool Application: Grooving; Cut-Off; Parting | |
| Maximum Overhang (Inch): 0.8800 | |
| Back of Bar to Cutting Edge (Decimal Inch): 5.0000 | |
| Head Height (Decimal Inch): 0.7500 | |
| Head Height (mm): 19.05 | |
| Head Length (Decimal Inch): 0.7500 | |
| Head Length (mm): 19.05 | |
| Manufacturers Catalog Number: LF123G079-12B | |
| Coolant Through: No | |
| UNSPSC Code: 27112809 | |
| Country of Origin: VARIOUS |
| MSC# | 57341158 |
| Mfr# | 5733413 |
