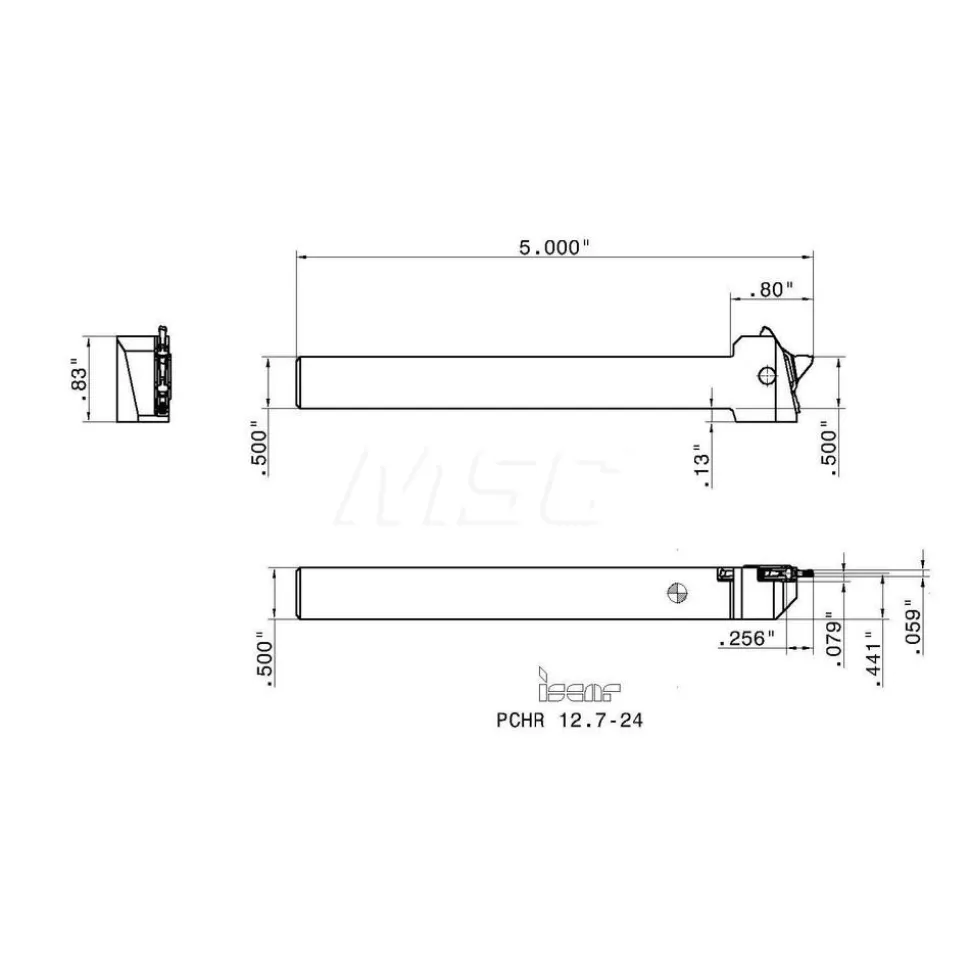

Indexable Grooving-Cutoff Toolholder: PCHR 12.7-24, 0.0197 to 1/8″ Groove Width, 0.256″ Max Depth of Cut, Right Hand
109,99 $
Specifications
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.2560 |
| Maximum Groove Width (Decimal Inch): 0.1250 | Minimum Groove Width (Decimal Inch): 0.0197 |
| Toolholder Style: PCH | Insert Holding Method: Screw |
| Compatible Insert Size Code: PENTA 24-ISO; PENTA 24N-C; PENTA 24-UN; PENTA 24N-PF/P; PENTA 24R-C; PENTA 24-WT; PENTA 24N-J; PENTA 24-BSPT; PENTA 24R/L-Z; PENTA 24-MT; PENTA 24R-P; PENTA 24N-PF; PENTA 24-NPT; PENTA 24N-Z; PENTA 24-W; PENTA 24R/L-J | Insert Compatibility: PENTA 24… |
| Shank Height (Decimal Inch): 0.5000 | Shank Length (Decimal Inch): 4.2000 |
| Shank Width/Diameter (Decimal Inch): 0.5000 | Shank Width/Diameter (Inch): 1/2 |
| Series: PentaCut | Overall Length (Decimal Inch): 5.0000 |
| Cutting Tool Application: Grooving; Cut-Off | Full Radius Insert: No |
| Head Length (Decimal Inch): 0.8000 | Standards: ISO 13399 |
| MSC/Manufacturer Number: PCHR/L 12.7-24 | Coolant Through: No |
| UNSPSC Code: 23153308 | Country of Origin: Israel |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.2560 | |
| Maximum Groove Width (Decimal Inch): 0.1250 | |
| Minimum Groove Width (Decimal Inch): 0.0197 | |
| Toolholder Style: PCH | |
| Insert Holding Method: Screw | |
| Compatible Insert Size Code: PENTA 24-ISO; PENTA 24N-C; PENTA 24-UN; PENTA 24N-PF/P; PENTA 24R-C; PENTA 24-WT; PENTA 24N-J; PENTA 24-BSPT; PENTA 24R/L-Z; PENTA 24-MT; PENTA 24R-P; PENTA 24N-PF; PENTA 24-NPT; PENTA 24N-Z; PENTA 24-W; PENTA 24R/L-J | |
| Insert Compatibility: PENTA 24… | |
| Shank Height (Decimal Inch): 0.5000 | |
| Shank Length (Decimal Inch): 4.2000 | |
| Shank Width/Diameter (Decimal Inch): 0.5000 | |
| Shank Width/Diameter (Inch): 1/2 | |
| Series: PentaCut | |
| Overall Length (Decimal Inch): 5.0000 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Full Radius Insert: No | |
| Head Length (Decimal Inch): 0.8000 | |
| Standards: ISO 13399 | |
| MSC/Manufacturer Number: PCHR/L 12.7-24 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 05206750 |
| Mfr# | 2301625 |
| Big Book# | 892 |
