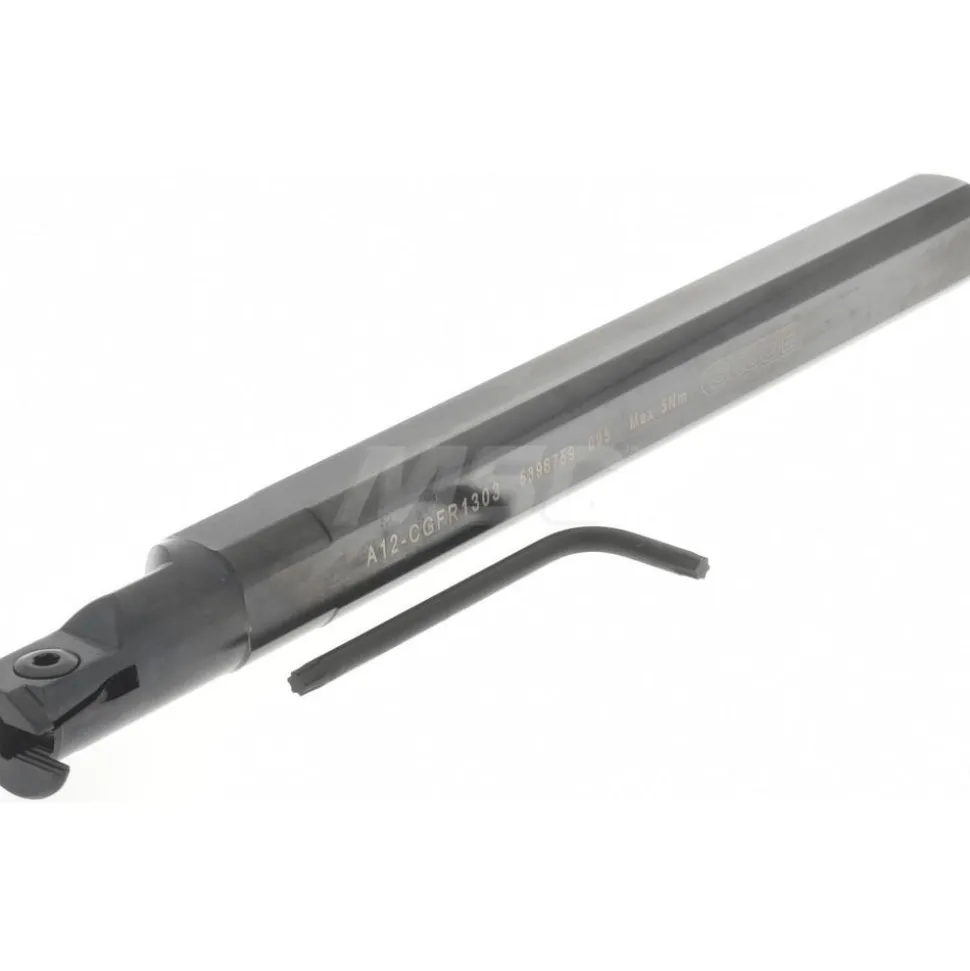

Indexable Grooving Toolholder: A12CGFR1303, Right Hand
134,89 $
Specifications
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.2160 |
| Minimum Groove Width (Decimal Inch): 0.1180 | Toolholder Style: A..-CGHR |
| Maximum Groove Width (Decimal Inch): 0.1180 | Insert Holding Method: Clamp |
| Insert Compatibility: LC..1303.. | Compatible Insert Size Code: LC1303 |
| Shank Height (mm): 17.10 | Shank Height (Decimal Inch): 0.6710 |
| Series: Multi-Directional Turning (MDT) | Shank Length (mm): 152.10 |
| Shank Length (Decimal Inch): 5.9900 | Overall Length (Inch): 8 |
| Overall Length (Decimal Inch): 8.0000 | Multi-use Tool: Yes |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5700 | Center to Cutting Edge (Decimal Inch): 0.5700 |
| Minimum Hole Diameter (mm): 20.07 | Minimum Hole Diameter (Decimal Inch): 0.7900 |
| Head Height (Decimal Inch): 2.0100 | Head Length (Decimal Inch): 2.0100 |
| Head Length (mm): 51.10 | Primary Workpiece Material: Stainless Steel |
| UNSPSC Code: 23153308 | Primary Workpiece Material Code: M |
| Toolholder Material: Steel | Complete Insert Compatibility: LCMF; LC.. 1303..; LCMR |
| MSC/Manufacturer Number: A12-CGFR/L 1303 | Coolant Through: Yes |
| Country of Origin: India | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.2160 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Toolholder Style: A..-CGHR | |
| Maximum Groove Width (Decimal Inch): 0.1180 | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: LC..1303.. | |
| Compatible Insert Size Code: LC1303 | |
| Shank Height (mm): 17.10 | |
| Shank Height (Decimal Inch): 0.6710 | |
| Series: Multi-Directional Turning (MDT) | |
| Shank Length (mm): 152.10 | |
| Shank Length (Decimal Inch): 5.9900 | |
| Overall Length (Inch): 8 | |
| Overall Length (Decimal Inch): 8.0000 | |
| Multi-use Tool: Yes | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.5700 | |
| Center to Cutting Edge (Decimal Inch): 0.5700 | |
| Minimum Hole Diameter (mm): 20.07 | |
| Minimum Hole Diameter (Decimal Inch): 0.7900 | |
| Head Height (Decimal Inch): 2.0100 | |
| Head Length (Decimal Inch): 2.0100 | |
| Head Length (mm): 51.10 | |
| Primary Workpiece Material: Stainless Steel | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: M | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: LCMF; LC.. 1303..; LCMR | |
| MSC/Manufacturer Number: A12-CGFR/L 1303 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 03502671 |
| Mfr# | 00061863 |
| Big Book# | 878 |
