Indexable Grooving Toolholder: GHIR 19-4, Right Hand, 0.787″ Max Workpiece Dia
Original price was: 303,00 $.124,99 $Current price is: 124,99 $.

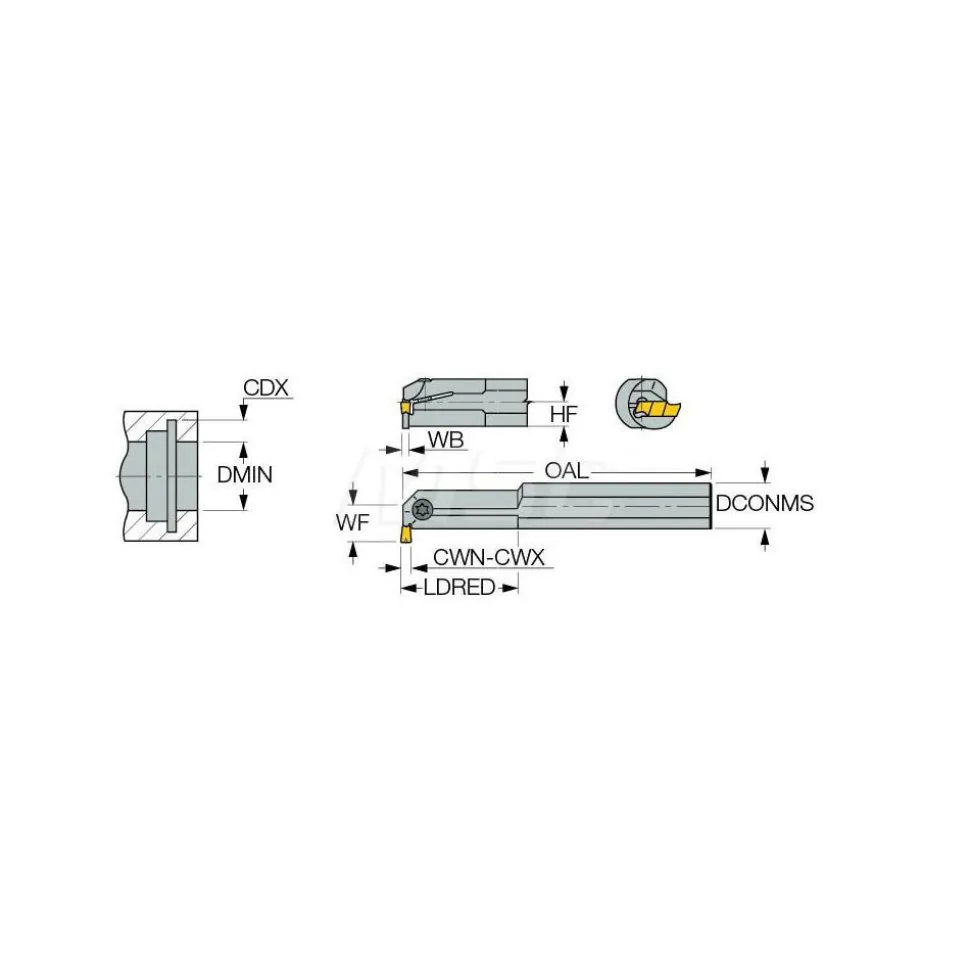

Specifications
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.1770 |
| Minimum Groove Width (Decimal Inch): 0.1180 | Toolholder Style: GHI |
| Maximum Groove Width (Decimal Inch): 0.1890 | Insert Holding Method: Screw |
| Insert Compatibility: GIFI..; GIPI..; GINI..; GIMY..; TIPI.. | Compatible Insert Size Code: GIFI-E; TIPI-MT; GIMIY; GIPI-E; GIFI; GINI-E; GIPI (Full Radius); GIPI; TIPI-WT; GIFI-E (Full Radius); GIPI-RX/LX; GIPI (Full Radius ) |
| Series: Cut Grip | Shank Length (Decimal Inch): 6.5000 |
| Shank Length (Inch): 6-1/2 | Overall Length (Decimal Inch): 8.0000 |
| Multi-use Tool: No | Maximum Workpiece Diameter (Decimal Inch): 0.7870 |
| Center to Cutting Edge (Decimal Inch): 0.5700 | Minimum Hole Diameter (Decimal Inch): 0.7870 |
| Head Length (Decimal Inch): 1.5000 | Primary Workpiece Material: Universal |
| UNSPSC Code: 23153308 | Primary Workpiece Material Code: P; S; H; K; M; N |
| Manufacturers Catalog Number: GHIR 19-4 | Toolholder Material: Steel |
| Coolant Through: No | Country of Origin: Israel |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.1770 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Toolholder Style: GHI | |
| Maximum Groove Width (Decimal Inch): 0.1890 | |
| Insert Holding Method: Screw | |
| Insert Compatibility: GIFI..; GIPI..; GINI..; GIMY..; TIPI.. | |
| Compatible Insert Size Code: GIFI-E; TIPI-MT; GIMIY; GIPI-E; GIFI; GINI-E; GIPI (Full Radius); GIPI; TIPI-WT; GIFI-E (Full Radius); GIPI-RX/LX; GIPI (Full Radius ) | |
| Series: Cut Grip | |
| Shank Length (Decimal Inch): 6.5000 | |
| Shank Length (Inch): 6-1/2 | |
| Overall Length (Decimal Inch): 8.0000 | |
| Multi-use Tool: No | |
| Maximum Workpiece Diameter (Decimal Inch): 0.7870 | |
| Center to Cutting Edge (Decimal Inch): 0.5700 | |
| Minimum Hole Diameter (Decimal Inch): 0.7870 | |
| Head Length (Decimal Inch): 1.5000 | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Manufacturers Catalog Number: GHIR 19-4 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60786605 |
| Mfr# | 2800337 |
| Big Book# | 889 |
