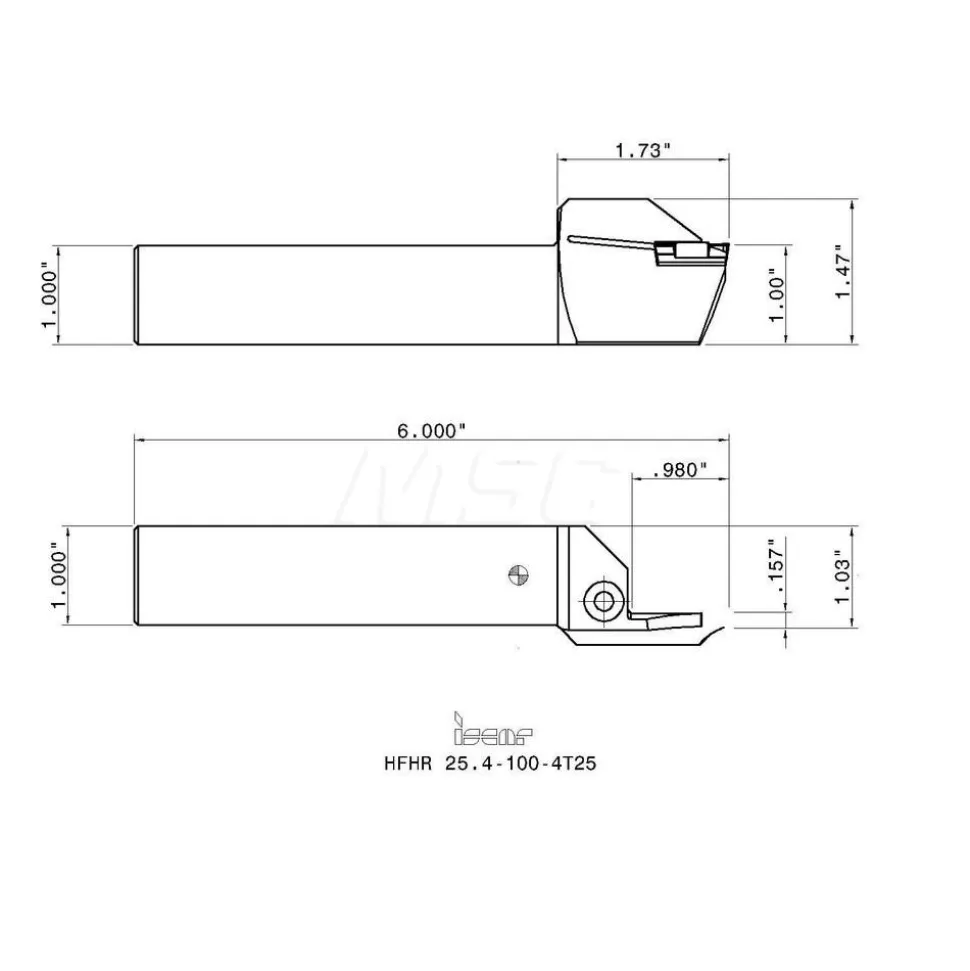

Indexable Grooving Toolholder: HFHR 25.4-100-4T25, External, Right Hand, 5.51″ Max Workpiece Dia
122,99 $
Specifications
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.9800 |
| Minimum Groove Width (Decimal Inch): 0.1570 | Toolholder Style: HFH |
| Maximum Groove Width (Decimal Inch): 0.1570 | Insert Holding Method: Clamp |
| Insert Compatibility: DGN 4..; GRIP 4..; HFPR 4004 | Compatible Insert Size Code: DGN; GRIP 4 |
| Shank Height (Decimal Inch): 1.0000 | Series: Heliface |
| Shank Length (Decimal Inch): 4.2700 | Overall Length (Decimal Inch): 6.0000 |
| Multi-use Tool: Yes | Maximum Workpiece Diameter (Decimal Inch): 5.5100 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0200 | Head Height (Decimal Inch): 1.4700 |
| Head Length (Decimal Inch): 1.7300 | Primary Workpiece Material: Universal |
| UNSPSC Code: 23153308 | Primary Workpiece Material Code: P; S; H; K; M; N |
| Maximum Groove Outside Diameter (Decimal Inch): 5.5100 | Minimum Axial Groove Inside Diameter (Decimal Inch): 3.9400 |
| Complete Insert Compatibility: GRIP 4020Y; DGN 4003J; DGN 4803J; DGN 4003JT; GRIP 476-080Y; DGN 4003C; GRIP 4004Y; GRIP 476-238Y; HFPR 4004; GRIP 4002Y | Coolant Through: No |
| Country of Origin: Israel | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.9800 | |
| Minimum Groove Width (Decimal Inch): 0.1570 | |
| Toolholder Style: HFH | |
| Maximum Groove Width (Decimal Inch): 0.1570 | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: DGN 4..; GRIP 4..; HFPR 4004 | |
| Compatible Insert Size Code: DGN; GRIP 4 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Heliface | |
| Shank Length (Decimal Inch): 4.2700 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: Yes | |
| Maximum Workpiece Diameter (Decimal Inch): 5.5100 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0200 | |
| Head Height (Decimal Inch): 1.4700 | |
| Head Length (Decimal Inch): 1.7300 | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Maximum Groove Outside Diameter (Decimal Inch): 5.5100 | |
| Minimum Axial Groove Inside Diameter (Decimal Inch): 3.9400 | |
| Complete Insert Compatibility: GRIP 4020Y; DGN 4003J; DGN 4803J; DGN 4003JT; GRIP 476-080Y; DGN 4003C; GRIP 4004Y; GRIP 476-238Y; HFPR 4004; GRIP 4002Y | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 52721321 |
| Mfr# | 2500209 |
