Indexable Grooving Toolholder: QS-SMALR083XHP-M, External, Right Hand
Original price was: 444,00 $.134,99 $Current price is: 134,99 $.

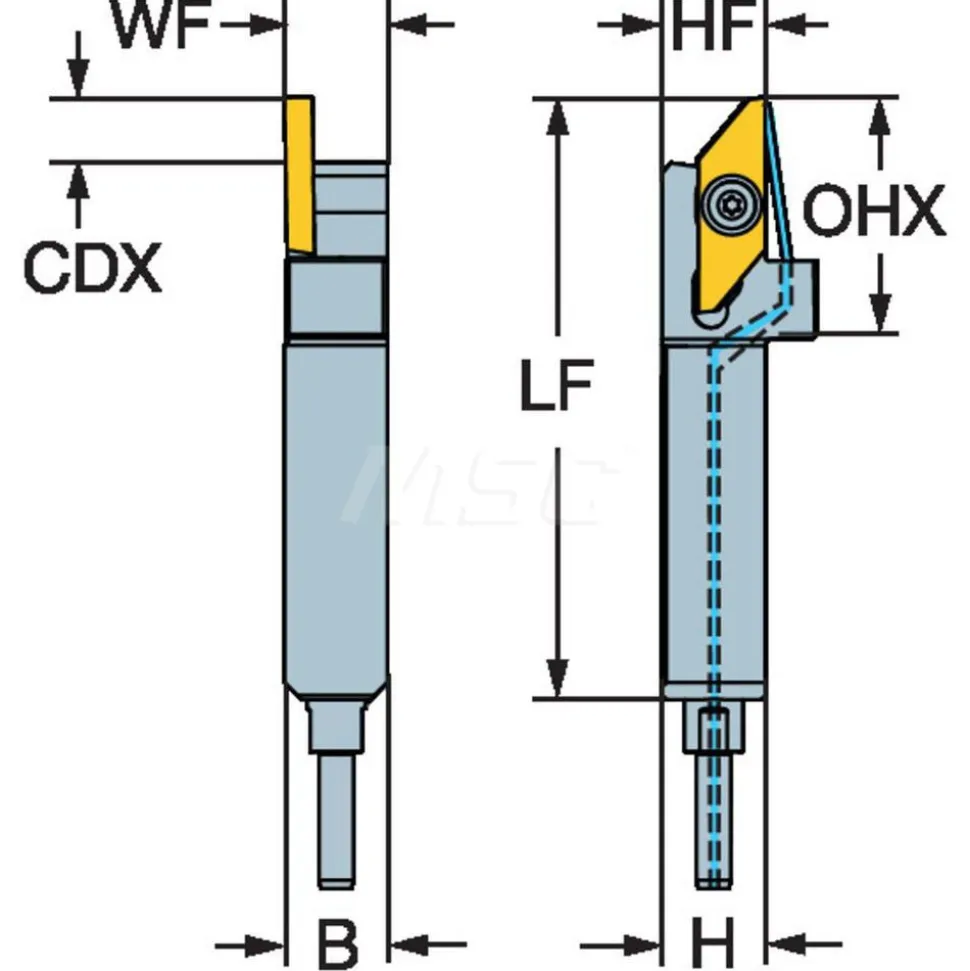

Specifications
| Toolholder Type: External Grooving | Insert Seat Size: 3 |
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.3346 |
| Maximum Depth of Cut (mm): 8.50 | Toolholder Style: QS-SMALR/L..HP |
| Insert Holding Method: Screw; Clamp | Insert Compatibility: MACR 3 200-N |
| Compatible Insert Size Code: MACR 3 200 | Shank Height (mm): 12.70 |
| Shank Height (Decimal Inch): 0.5000 | Series: Coro Cut XS |
| Overall Length (mm): 62.40 | Overall Length (Decimal Inch): 2.4567 |
| Multi-use Tool: Yes | Maximum Overhang (Inch): 1.1023 |
| Back of Bar to Cutting Edge (mm): 70.00 | Back of Bar to Cutting Edge (Decimal Inch): 2.7559 |
| Center to Cutting Edge (Decimal Inch): 0.5000 | Center to Cutting Edge (mm): 12.70 |
| Head Length (Decimal Inch): 1.1024 | Head Length (mm): 28.00 |
| UNSPSC Code: 27112809 | Maximum Bore Depth (Decimal Inch): 1.1024 |
| Toolholder Material: Steel | Complete Insert Compatibility: MACR 3 200-N |
| Coolant Through: Yes | Maximum Bore Depth (mm): 28.00 |
| Country of Origin: India | |
| Toolholder Type: External Grooving | |
| Insert Seat Size: 3 | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.3346 | |
| Maximum Depth of Cut (mm): 8.50 | |
| Toolholder Style: QS-SMALR/L..HP | |
| Insert Holding Method: Screw; Clamp | |
| Insert Compatibility: MACR 3 200-N | |
| Compatible Insert Size Code: MACR 3 200 | |
| Shank Height (mm): 12.70 | |
| Shank Height (Decimal Inch): 0.5000 | |
| Series: Coro Cut XS | |
| Overall Length (mm): 62.40 | |
| Overall Length (Decimal Inch): 2.4567 | |
| Multi-use Tool: Yes | |
| Maximum Overhang (Inch): 1.1023 | |
| Back of Bar to Cutting Edge (mm): 70.00 | |
| Back of Bar to Cutting Edge (Decimal Inch): 2.7559 | |
| Center to Cutting Edge (Decimal Inch): 0.5000 | |
| Center to Cutting Edge (mm): 12.70 | |
| Head Length (Decimal Inch): 1.1024 | |
| Head Length (mm): 28.00 | |
| UNSPSC Code: 27112809 | |
| Maximum Bore Depth (Decimal Inch): 1.1024 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: MACR 3 200-N | |
| Coolant Through: Yes | |
| Maximum Bore Depth (mm): 28.00 | |
| Country of Origin: India |
| MSC# | 49663495 |
| Mfr# | 6900611 |
