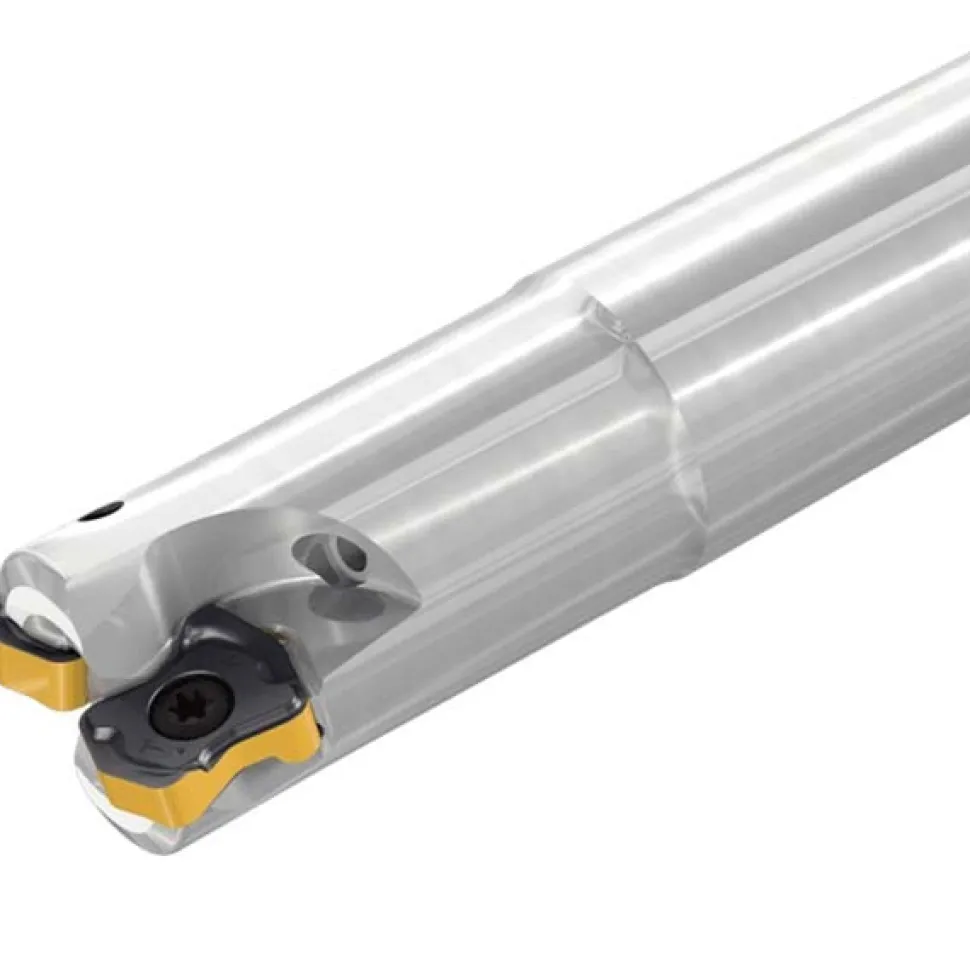

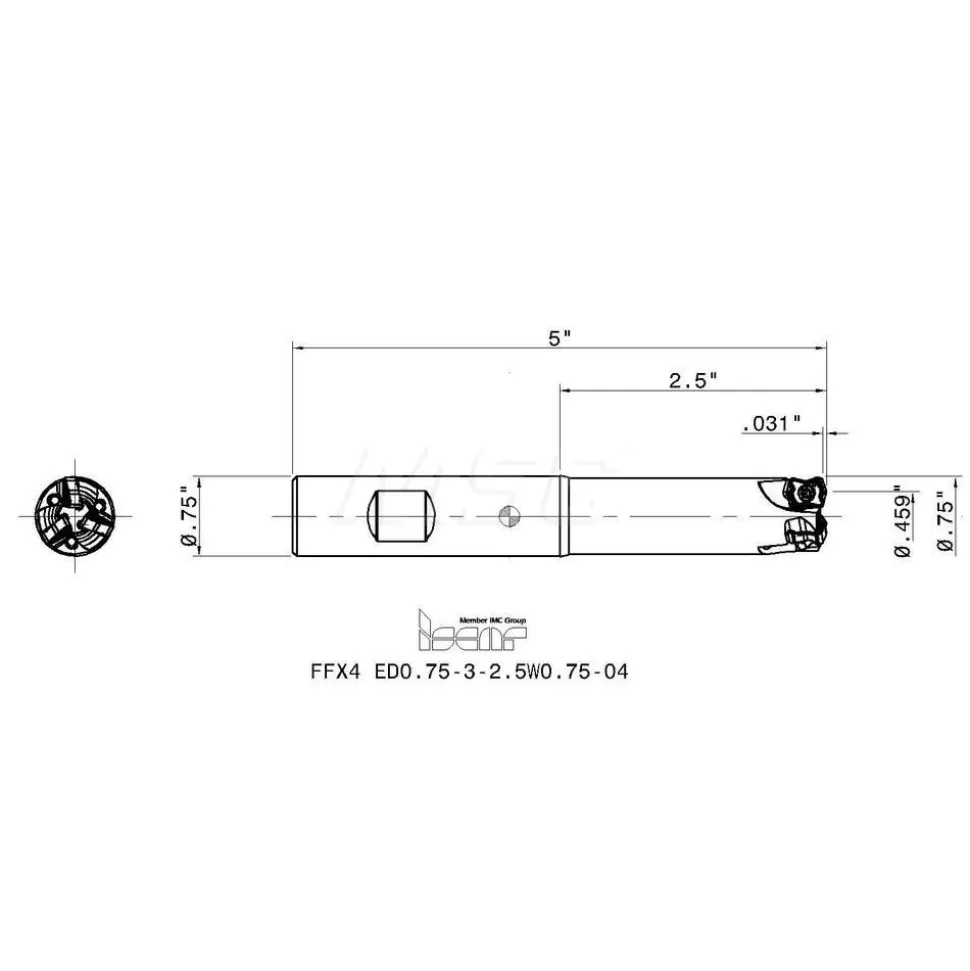

Indexable High-Feed End Mill: FFX4ED0.7532.5W0.7504, 3/4″ Cut Dia, 3/4″ Shank Dia, Weldon Flat Shank
Original price was: 456,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.4590 | Maximum Cutting Diameter (Decimal Inch): 0.7500 |
| Maximum Cutting Diameter (Inch): 3/4 | Maximum Depth of Cut (mm): 0.80 |
| Toolholder Style: FFX4 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Maximum Ramping Angle: 2.90 | Compatible Insert Style: FFX4XNMU040310T |
| Insert Holding Method: Screw | Number Of Cutter Inserts: 3 |
| Overall Length (Decimal Inch): 5.0000 | Series: Logiq 4 Feed |
| Head Length (Decimal Inch): 2.5000 | Tool Application: Milling |
| Standards: ISO 13399 | Weldon Flat: Yes |
| End Mill Type: High Feed | Number Of Flutes: 3 |
| End Mill Material: Steel | Coolant Through: Yes |
| UNSPSC Code: 27112803 | Country of Origin: Israel |
| Minimum Cutting Diameter (Decimal Inch): 0.4590 | |
| Maximum Cutting Diameter (Decimal Inch): 0.7500 | |
| Maximum Cutting Diameter (Inch): 3/4 | |
| Maximum Depth of Cut (mm): 0.80 | |
| Toolholder Style: FFX4 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Maximum Ramping Angle: 2.90 | |
| Compatible Insert Style: FFX4XNMU040310T | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 3 | |
| Overall Length (Decimal Inch): 5.0000 | |
| Series: Logiq 4 Feed | |
| Head Length (Decimal Inch): 2.5000 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Weldon Flat: Yes | |
| End Mill Type: High Feed | |
| Number Of Flutes: 3 | |
| End Mill Material: Steel | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Israel |
| MSC# | 97791909 |
| Mfr# | 3336697 |
