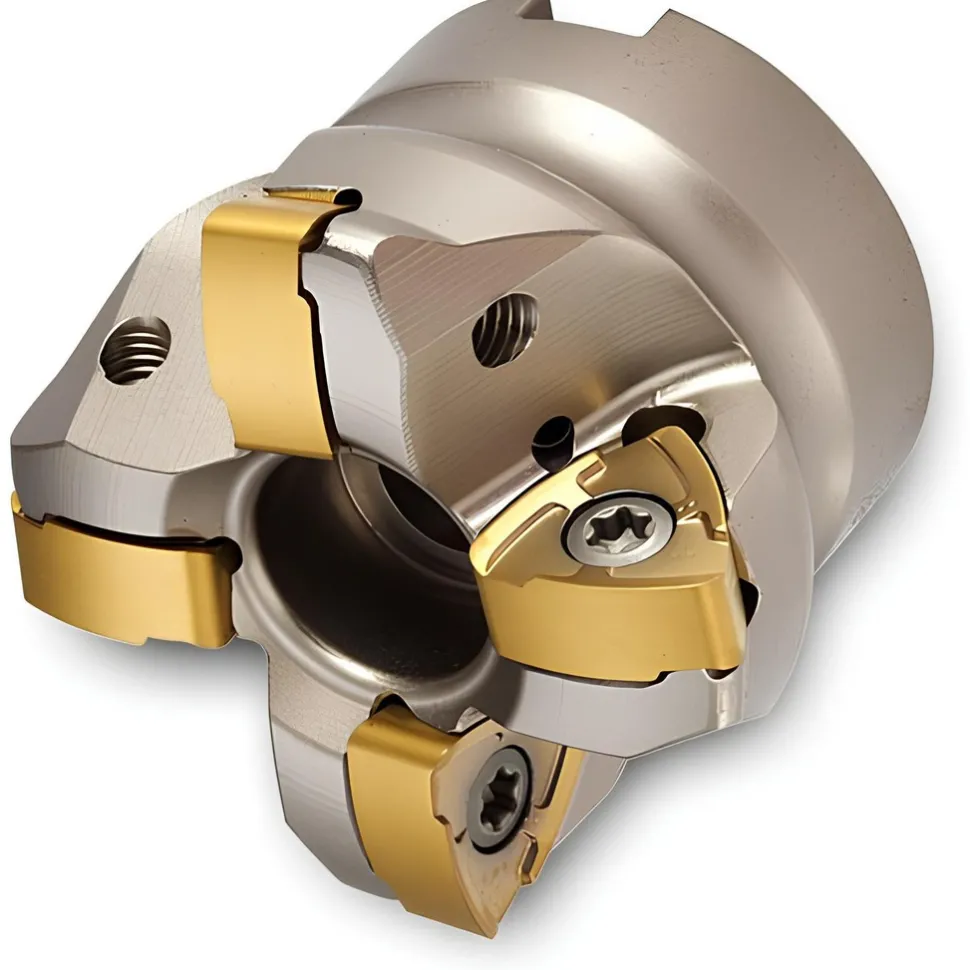

Indexable High-Feed Face Mill: 2.218 to 3″ Cut Dia, 1″ Arbor Hole
Original price was: 830,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 2.2180 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.0787 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: 1307 | Maximum Ramping Angle: 0.40 |
| Cutter Style: DG6P | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Series: DG6P |
| Keyway Width (mm): 9.65 | Overall Height (Inch): 1-3/4 |
| Overall Height (Decimal Inch): 1.7500 | Tool Application: Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance: High Performance | Primary Workpiece Material: Universal |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Coolant Through: Yes | UNSPSC Code: 27112803 |
| Minimum Cutting Diameter (Decimal Inch): 2.2180 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.0787 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: 1307 | |
| Maximum Ramping Angle: 0.40 | |
| Cutter Style: DG6P | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: DG6P | |
| Keyway Width (mm): 9.65 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Tool Application: Helical Interpolation; Plunging; Shouldering; Ramping | |
| Tool Performance: High Performance | |
| Primary Workpiece Material: Universal | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 |
| MSC# | 54697396 |
| Mfr# | 2912588 |
