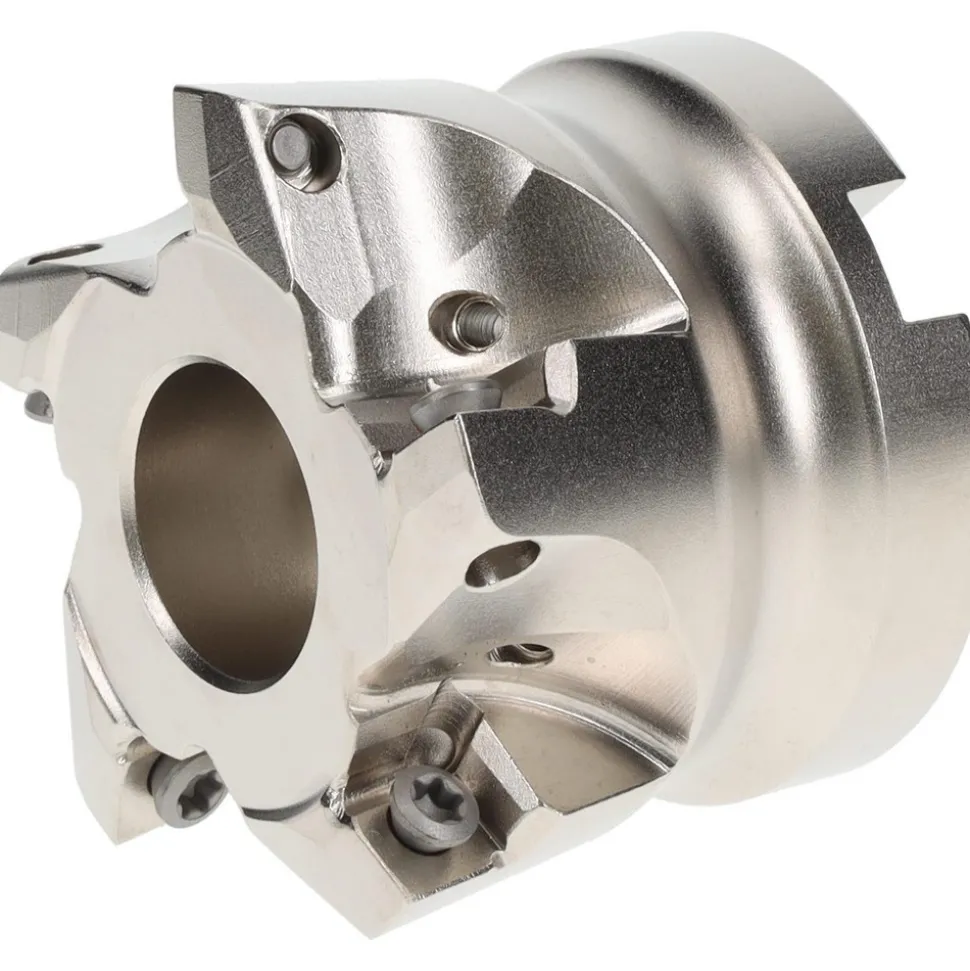

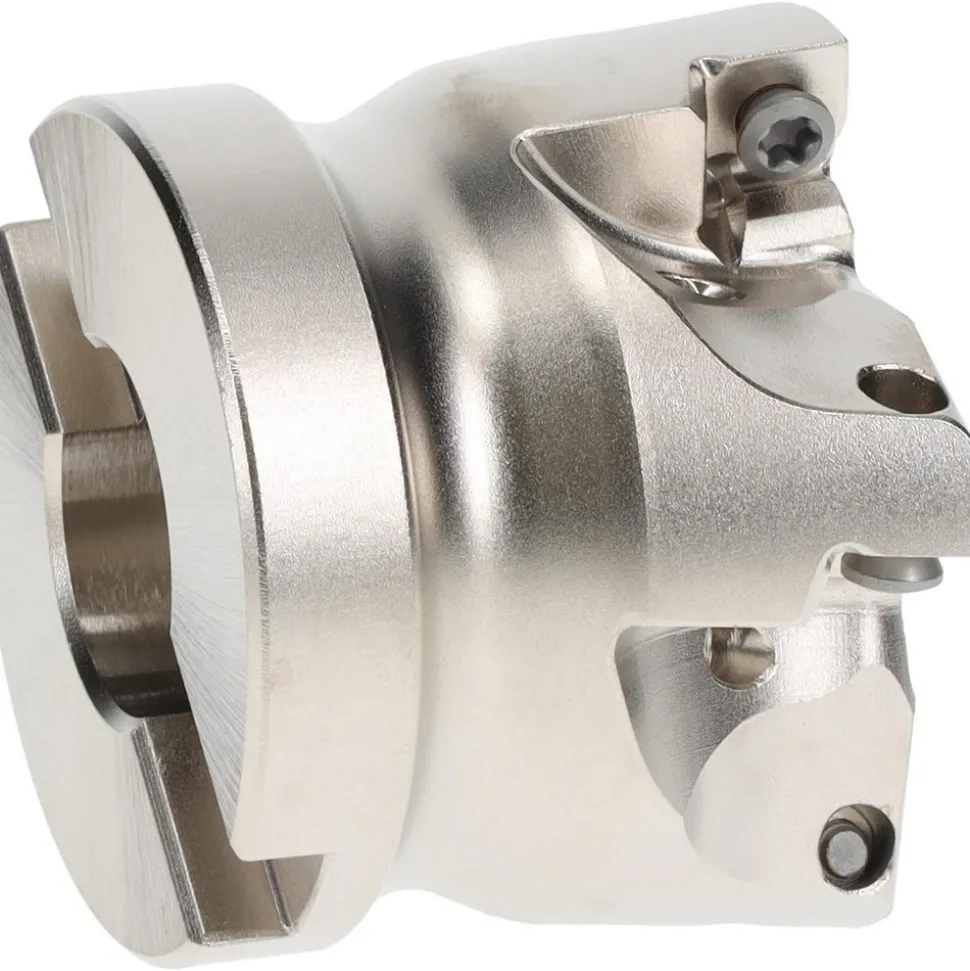

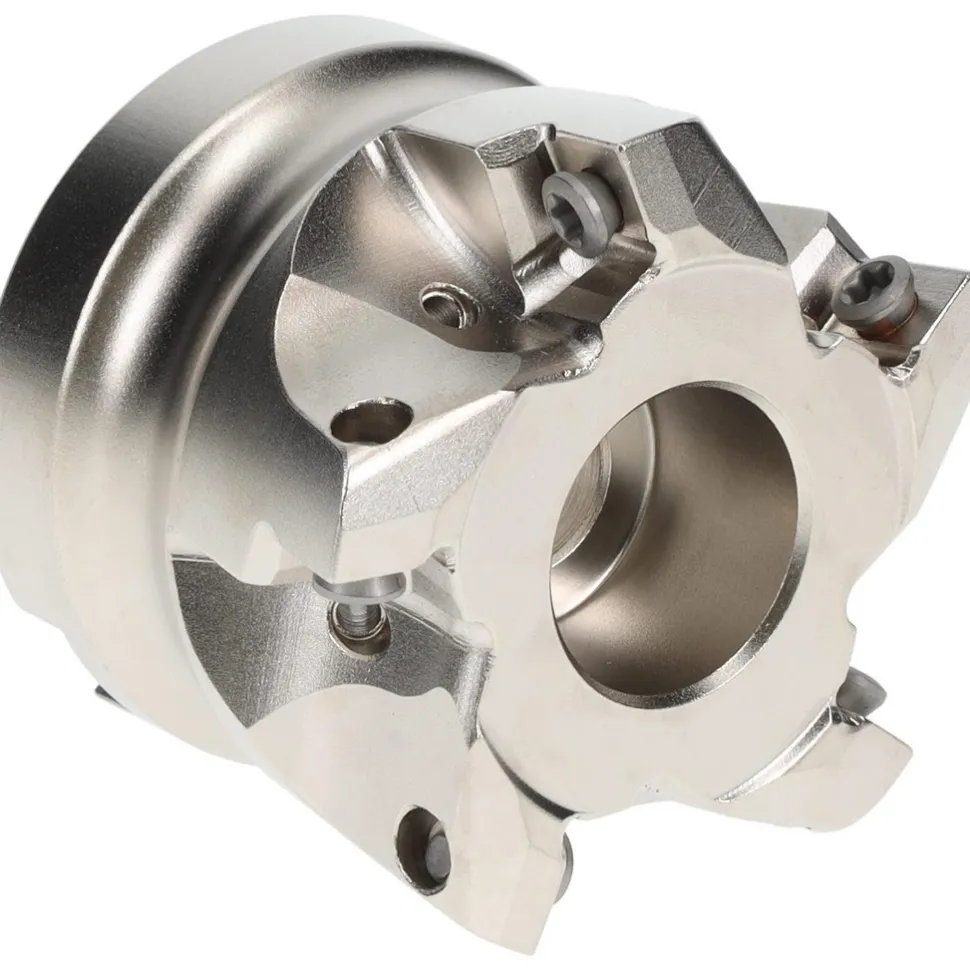

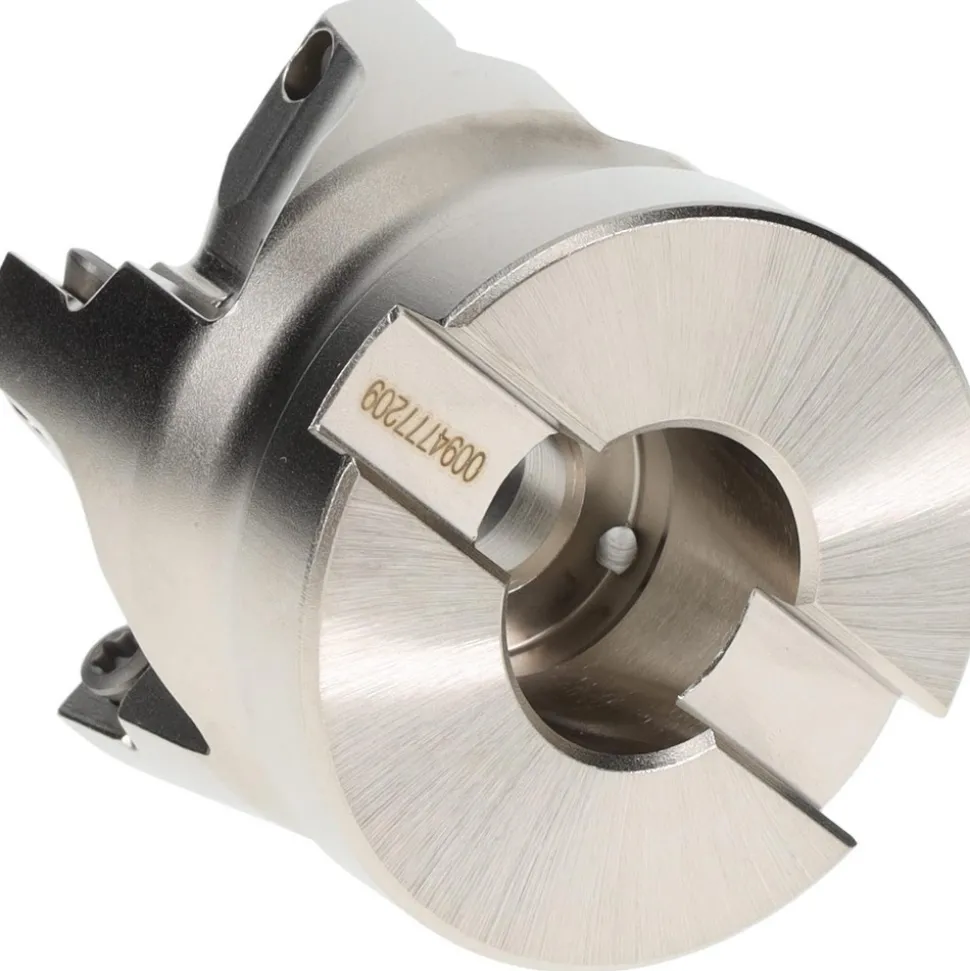

Indexable High-Feed Face Mills: Cutting Diameter (mm): 50.80; Cutting Diameter (Inch): 2
122,99 $
Specifications
| Cutting Diameter (mm): 50.80 | Cutting Diameter (Inch): 2 |
| Minimum Cutting Diameter (Decimal Inch): 2.0000 | Maximum Depth of Cut (Decimal Inch): 0.0394 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Shank Diameter (mm): 19.05 |
| Compatible Insert Size Code: 10 | Maximum Ramping Angle: 0.8 |
| Cutter Style: ASSM | Cutting Direction: Right Hand |
| Insert Compatibility: XDLX; XDLT | Insert Holding Method: Screw |
| Series: CI | Keyway Width (Decimal Inch): 0.3210 |
| Keyway Width (mm): 8.15 | Overall Height (Decimal Inch): 1.5000 |
| Maximum RPM: 23500.000 | Shank Diameter (Decimal Inch): 0.7500 |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Hub Diameter (Decimal Inch): 1.7717 | UNSPSC Code: 27112803 |
| Cutting Diameter (mm): 50.80 | |
| Cutting Diameter (Inch): 2 | |
| Minimum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.0394 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (mm): 19.05 | |
| Compatible Insert Size Code: 10 | |
| Maximum Ramping Angle: 0.8 | |
| Cutter Style: ASSM | |
| Cutting Direction: Right Hand | |
| Insert Compatibility: XDLX; XDLT | |
| Insert Holding Method: Screw | |
| Series: CI | |
| Keyway Width (Decimal Inch): 0.3210 | |
| Keyway Width (mm): 8.15 | |
| Overall Height (Decimal Inch): 1.5000 | |
| Maximum RPM: 23500.000 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Hub Diameter (Decimal Inch): 1.7717 | |
| UNSPSC Code: 27112803 |
| MSC# | 07074107 |
| Mfr# | 07074107 |
