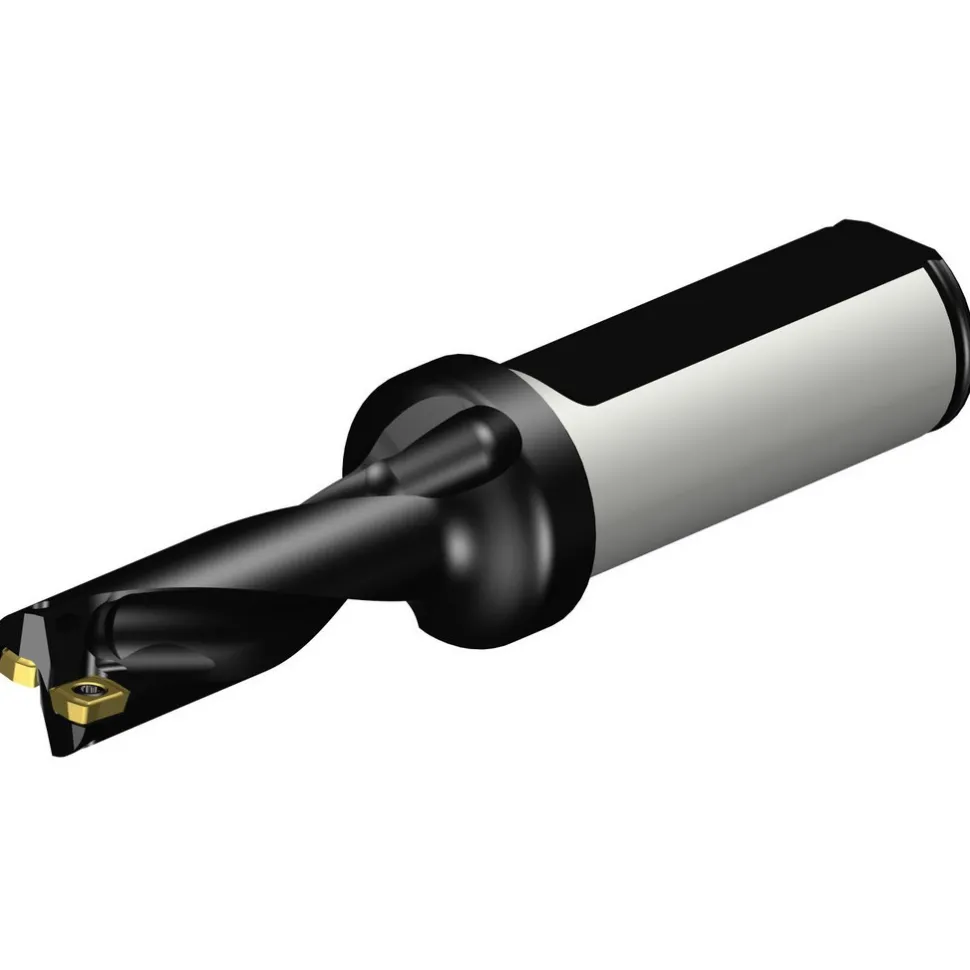

Indexable Insert Drill: 880-D1350L20-03, 13.50 mm Max Dia, 40.88 mm Max Depth, 3xD, 20.00 mm Shank Dia
128,89 $

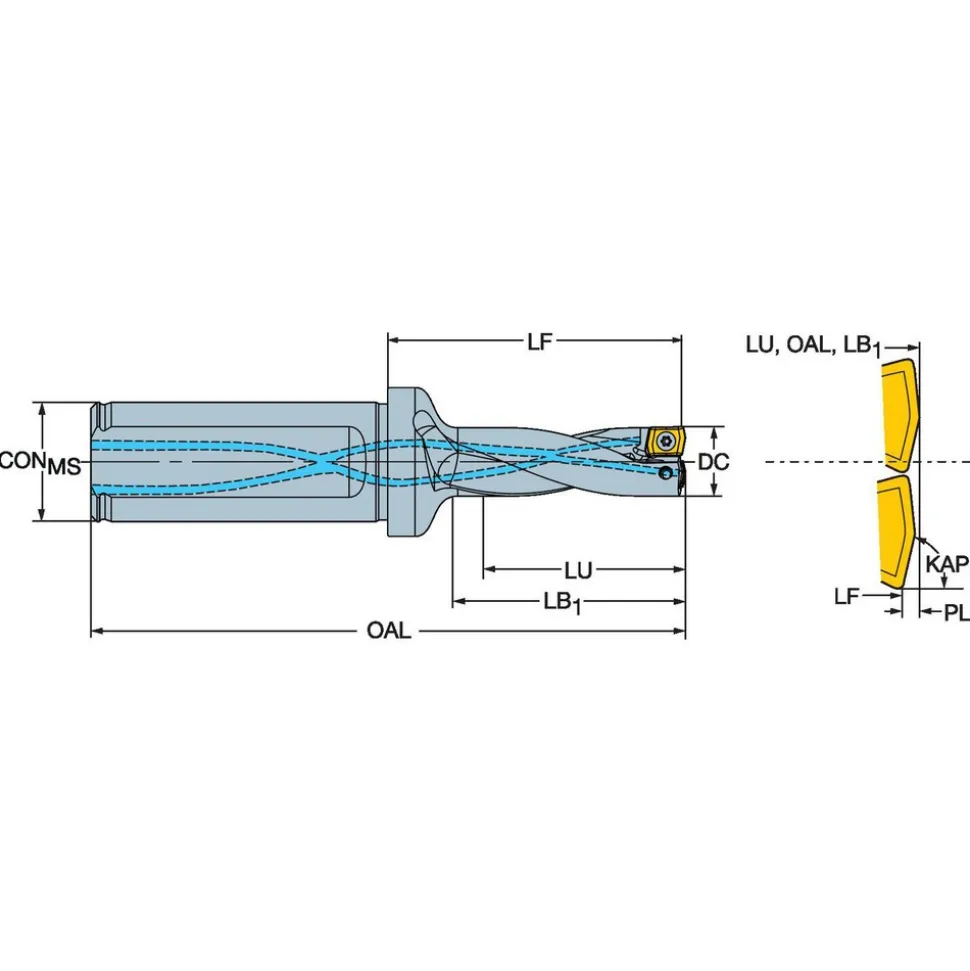

Specifications
| Compatible Drill Style: 880 | Maximum Drill Diameter (mm): 13.50 |
| Maximum Drill Diameter (Decimal Inch): 0.7874 | Maximum Drill Depth (Decimal Inch): 1.6929 |
| Maximum Drill Depth (mm): 40.88 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7874 | Shank Diameter (mm): 20.00 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | Maximum Drill Depth Range (mm): 0.00 to 50.00 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 010203; 0102W04 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Series: CoroDrill 880 |
| Flute Length (Decimal Inch): 1.6142 | Flute Length (mm): 43.00 |
| Body Length (mm): 55.62 | Body Length (Decimal Inch): 2.1898 |
| Shank Length (Decimal Inch): 1.9685 | Shank Length (mm): 50.38 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (mm): 4.80 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-0102W04-P-GR; 880-010203H-C-GR | Insert Lock Screw: 5513 020-87 |
| Coolant Through: Yes | Country of Origin: Sweden |
| Compatible Drill Style: 880 | |
| Maximum Drill Diameter (mm): 13.50 | |
| Maximum Drill Diameter (Decimal Inch): 0.7874 | |
| Maximum Drill Depth (Decimal Inch): 1.6929 | |
| Maximum Drill Depth (mm): 40.88 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7874 | |
| Shank Diameter (mm): 20.00 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Maximum Drill Depth Range (mm): 0.00 to 50.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 010203; 0102W04 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 1.6142 | |
| Flute Length (mm): 43.00 | |
| Body Length (mm): 55.62 | |
| Body Length (Decimal Inch): 2.1898 | |
| Shank Length (Decimal Inch): 1.9685 | |
| Shank Length (mm): 50.38 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (mm): 4.80 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-0102W04-P-GR; 880-010203H-C-GR | |
| Insert Lock Screw: 5513 020-87 | |
| Coolant Through: Yes | |
| Country of Origin: Sweden |
| MSC# | 76771732 |
| Mfr# | 5764969 |
