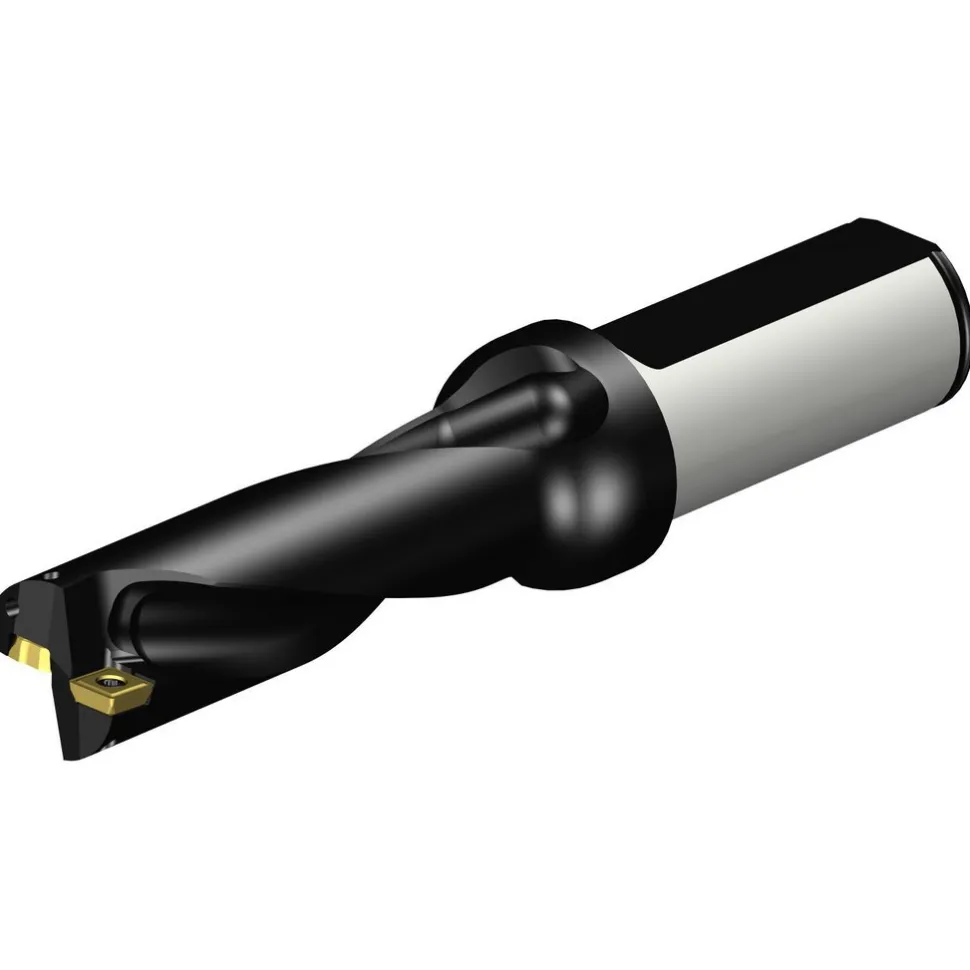

Indexable Insert Drill: 880-D2300L25-03, 23.00 mm Max Dia, 69.45 mm Max Depth, 3xD, 25.00 mm Shank Dia
136,89 $
Specifications
| Compatible Drill Style: 880 | Maximum Drill Diameter (mm): 23.00 |
| Maximum Drill Diameter (Decimal Inch): 0.9449 | Maximum Drill Depth (Decimal Inch): 2.8524 |
| Maximum Drill Depth (mm): 69.45 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Decimal Inch): 0.9843 | Shank Diameter (mm): 25.00 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | Maximum Drill Depth Range (mm): 50.00 to 75.00 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 0403W05; 040305 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Series: CoroDrill 880 |
| Flute Length (Decimal Inch): 3.3622 | Flute Length (mm): 72.00 |
| Body Length (mm): 90.55 | Body Length (Decimal Inch): 2.8346 |
| Shank Length (Decimal Inch): 2.2047 | Shank Length (mm): 56.45 |
| Tool Application: Drilling | Tool Performance: General Purpose |

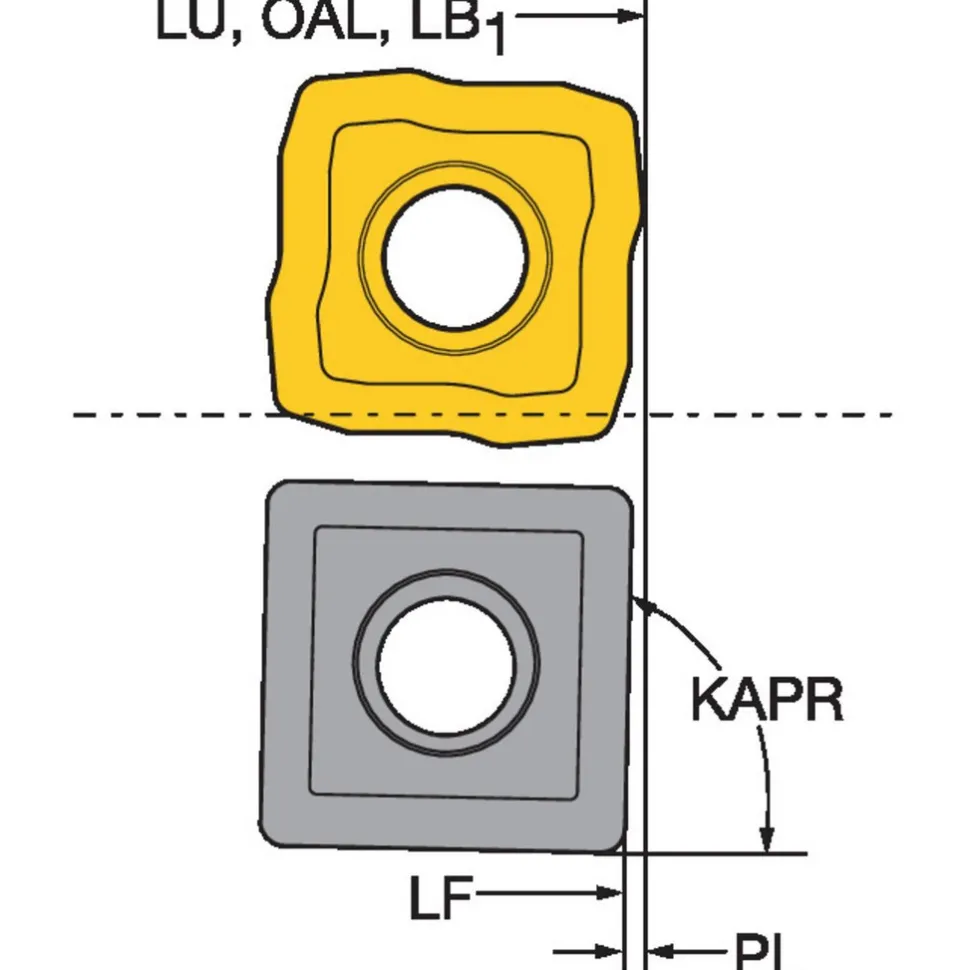

| Insert Size (Decimal Inch): 0.1102 | Insert Size (mm): 6.80; 7.40 |
| UNSPSC Code: 23291503 | Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM |

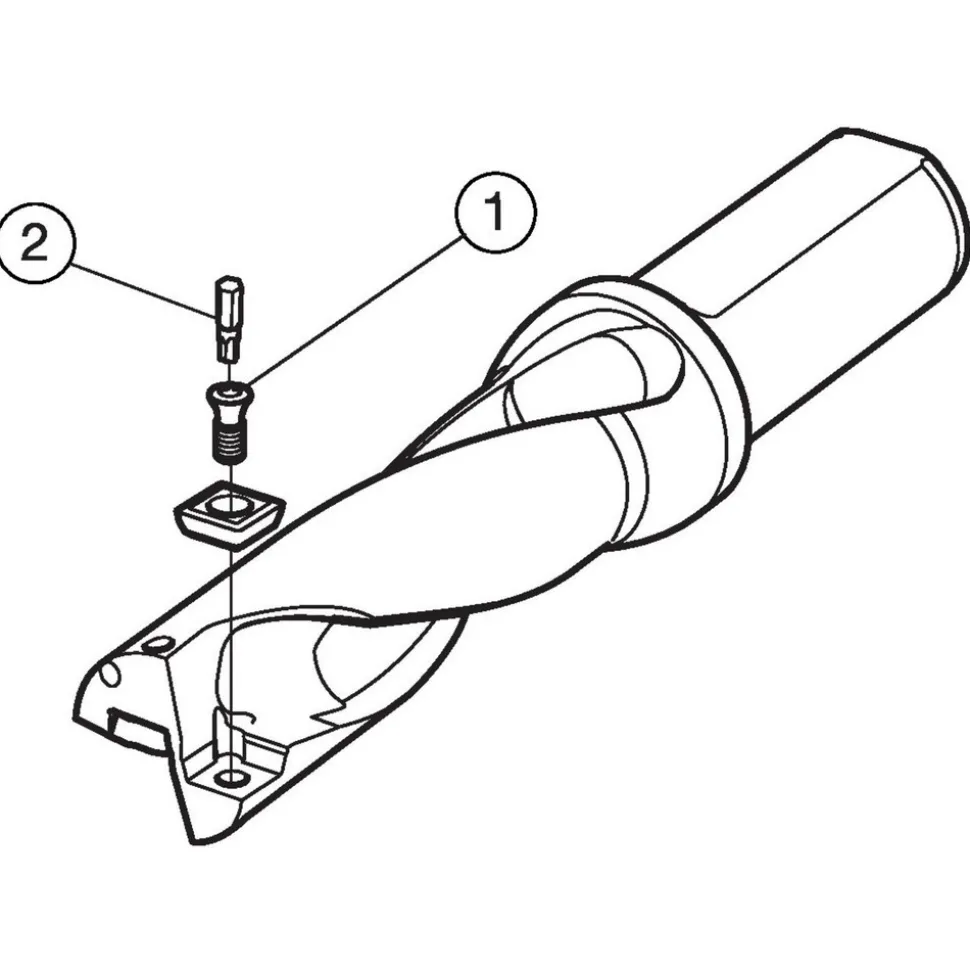

| Insert Lock Screw: 5513 020-58 | Coolant Through: Yes |
| Country of Origin: Sweden | |
| Compatible Drill Style: 880 | |
| Maximum Drill Diameter (mm): 23.00 | |
| Maximum Drill Diameter (Decimal Inch): 0.9449 | |
| Maximum Drill Depth (Decimal Inch): 2.8524 | |
| Maximum Drill Depth (mm): 69.45 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.9843 | |
| Shank Diameter (mm): 25.00 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Maximum Drill Depth Range (mm): 50.00 to 75.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 0403W05; 040305 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 3.3622 | |
| Flute Length (mm): 72.00 | |
| Body Length (mm): 90.55 | |
| Body Length (Decimal Inch): 2.8346 | |
| Shank Length (Decimal Inch): 2.2047 | |
| Shank Length (mm): 56.45 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.1102 | |
| Insert Size (mm): 6.80; 7.40 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM | |
| Insert Lock Screw: 5513 020-58 | |
| Coolant Through: Yes | |
| Country of Origin: Sweden |
| MSC# | 52060548 |
| Mfr# | 5765587 |
