Sale!

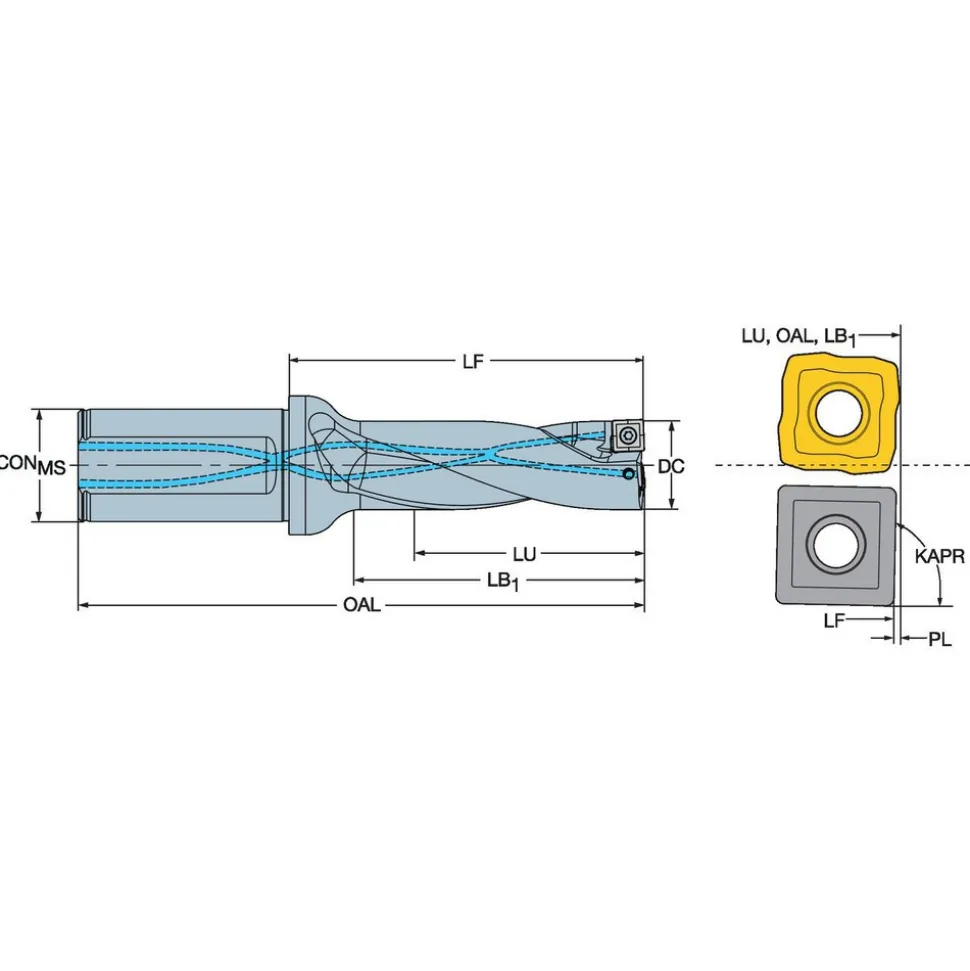

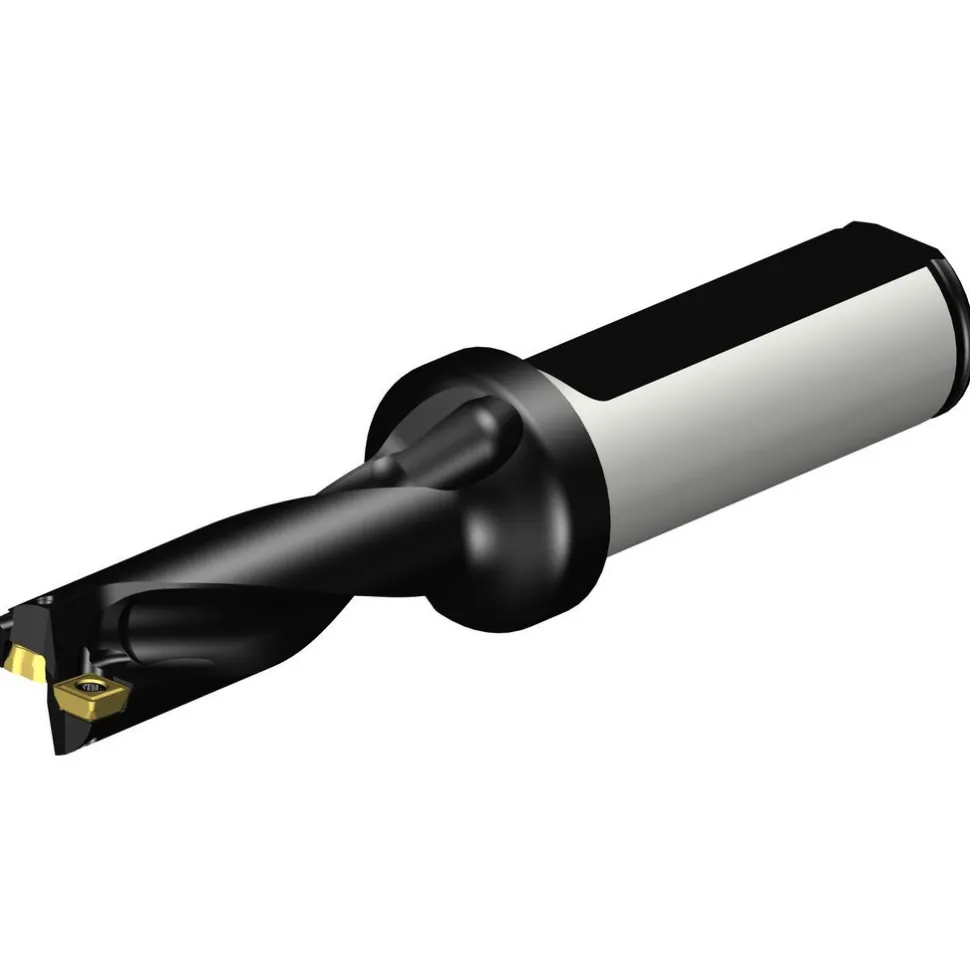

Indexable Insert Drill: A880-D0562LX19-03, 14.27 mm Max Dia, 3xD
Original price was: 687,00 $.120,89 $Current price is: 120,89 $.
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 14.27 |
| Maximum Drill Diameter (Decimal Inch): 0.5974 | Maximum Drill Depth (Decimal Inch): 1.6988 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 020204; 0202W04 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 4.2985 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 1.8110 |
| Flute Length (mm): 54.16 | Body Length (mm): 46.00 |
| Body Length (Decimal Inch): 2.3172 | Shank Length (Decimal Inch): 1.9813 |
| Shank Length (mm): 50.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2010; 0.1930 |
| Insert Size (mm): 2.40 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-0202W04H-P-GM; 880-020204H-C-GM | Insert Lock Screw: 5513 020-87 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 14.27 | |
| Maximum Drill Diameter (Decimal Inch): 0.5974 | |
| Maximum Drill Depth (Decimal Inch): 1.6988 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 020204; 0202W04 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 4.2985 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 1.8110 | |
| Flute Length (mm): 54.16 | |
| Body Length (mm): 46.00 | |
| Body Length (Decimal Inch): 2.3172 | |
| Shank Length (Decimal Inch): 1.9813 | |
| Shank Length (mm): 50.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2010; 0.1930 | |
| Insert Size (mm): 2.40 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-0202W04H-P-GM; 880-020204H-C-GM | |
| Insert Lock Screw: 5513 020-87 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 89482137 |
| Mfr# | 5723482 |
