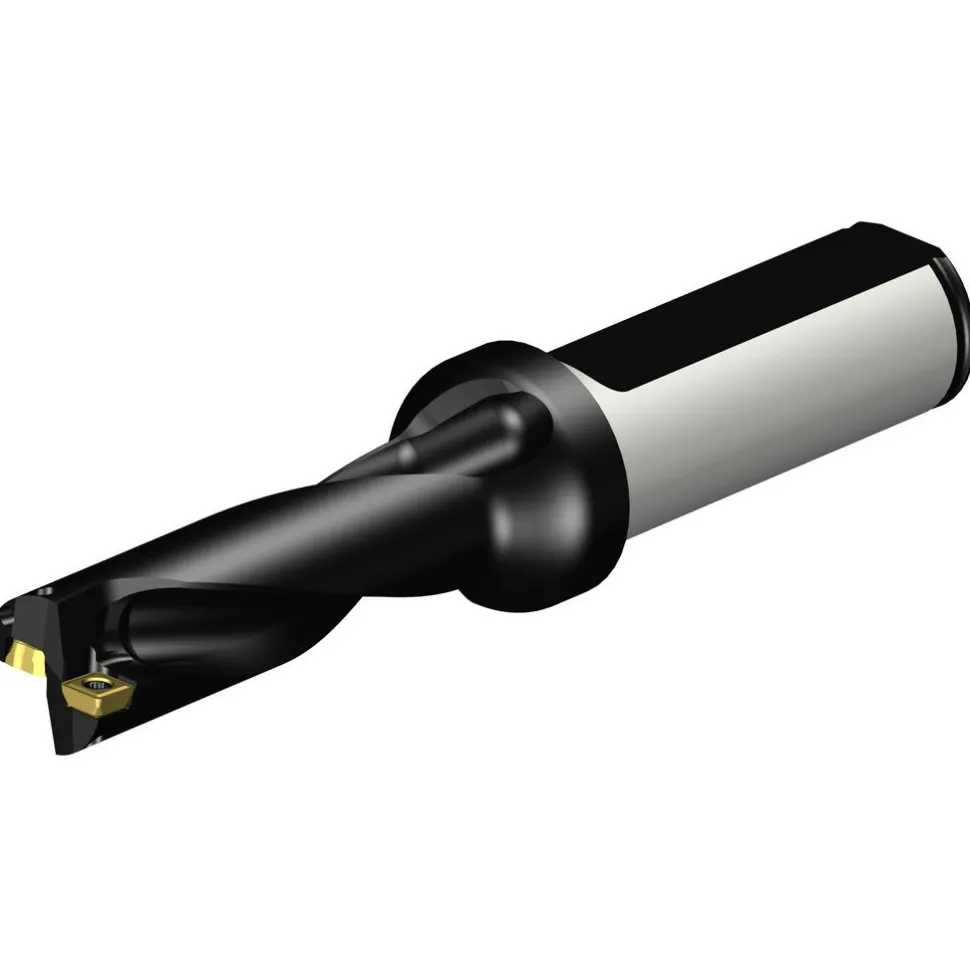

Indexable Insert Drill: A880-D0625LX19-03, 15.88 mm Max Dia, 50.80 mm Max Depth, 3xD
Original price was: 687,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 15.88 |
| Maximum Drill Diameter (Decimal Inch): 0.6446 | Maximum Drill Depth (Inch): 2 |
| Maximum Drill Depth (Decimal Inch): 1.8882 | Maximum Drill Depth (mm): 50.80 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm): 50.00 to 75.00 | Tool Material: Steel |
| Compatible Insert Style: 880 | Compatible Insert Size Code: 020204; 0202W04 |
| Drill Depth by Diameter Ratio: 3xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 4.5335 | Series: CoroDrill 880 |
| Flute Length (Decimal Inch): 2.0080 | Flute Length (mm): 60.13 |
| Body Length (mm): 51.00 | Body Length (Decimal Inch): 2.5518 |
| Shank Length (Decimal Inch): 1.9817 | Shank Length (mm): 50.00 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.2010; 0.1930 | Insert Size (mm): 2.40 |
| UNSPSC Code: 23291503 | Insert Compatibility: 880-0202W04H-P-GM; 880-020204H-C-GM |
| Insert Lock Screw: 5513 020-87 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 15.88 | |
| Maximum Drill Diameter (Decimal Inch): 0.6446 | |
| Maximum Drill Depth (Inch): 2 | |
| Maximum Drill Depth (Decimal Inch): 1.8882 | |
| Maximum Drill Depth (mm): 50.80 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Maximum Drill Depth Range (mm): 50.00 to 75.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 020204; 0202W04 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 4.5335 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 2.0080 | |
| Flute Length (mm): 60.13 | |
| Body Length (mm): 51.00 | |
| Body Length (Decimal Inch): 2.5518 | |
| Shank Length (Decimal Inch): 1.9817 | |
| Shank Length (mm): 50.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2010; 0.1930 | |
| Insert Size (mm): 2.40 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-0202W04H-P-GM; 880-020204H-C-GM | |
| Insert Lock Screw: 5513 020-87 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 33289208 |
| Mfr# | 5724476 |
