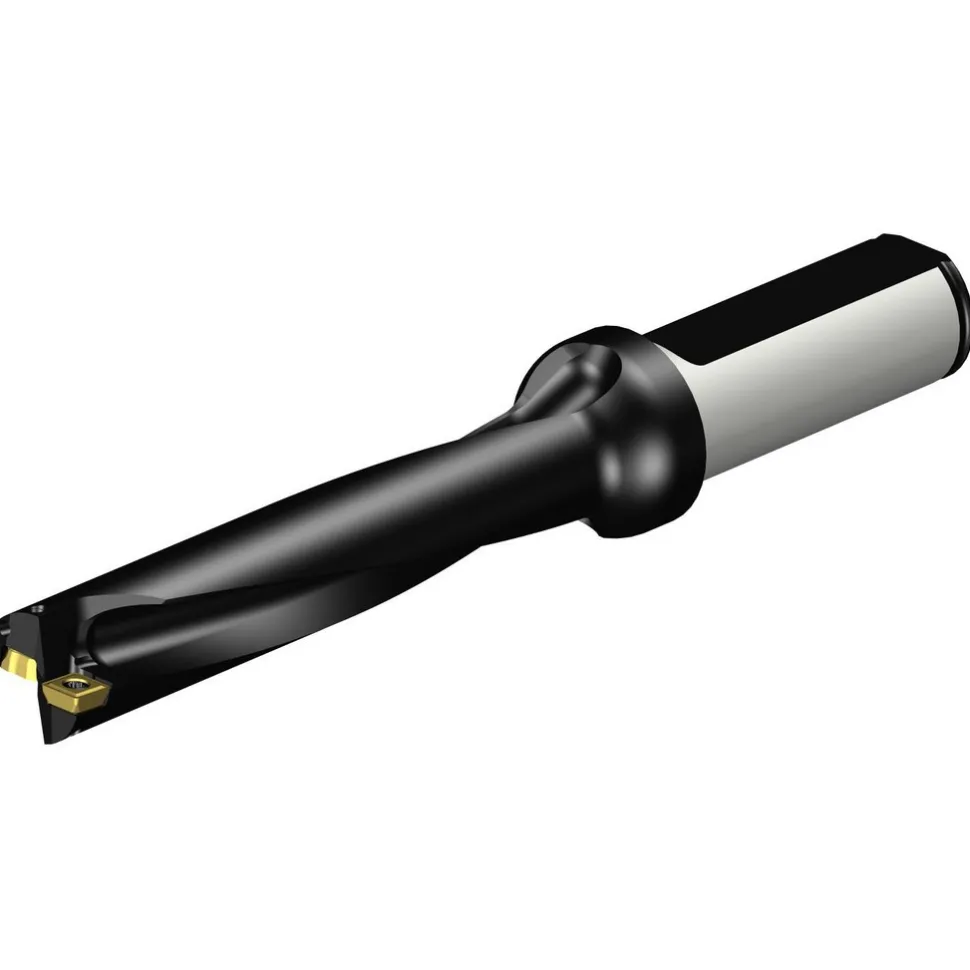

Indexable Insert Drill: A880-D0656LX19-05, 45/64″ Max Dia, 5xD, 3/4″ Shank Dia
Original price was: 859,00 $.134,99 $Current price is: 134,99 $.
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 16.66 |
| Maximum Drill Diameter (Inch): 45/64 | Maximum Drill Diameter (Decimal Inch): 0.7032 |
| Maximum Drill Depth (Decimal Inch): 3.2920 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 3/4 | Shank Diameter (Decimal Inch): 0.7500 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | Tool Material: Steel |
| Compatible Insert Style: 880 | Compatible Insert Size Code: 030305; 0303W05 |
| Drill Depth by Diameter Ratio: 5xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 5.9545 | Series: CoroDrill 880 |
| Flute Length (Decimal Inch): 3.4110 | Flute Length (mm): 96.24 |
| Body Length (mm): 86.64 | Body Length (Decimal Inch): 3.9740 |
| Shank Length (Decimal Inch): 1.9805 | Shank Length (mm): 50.00 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.2360; 0.2240 | Insert Size (mm): 2.60 |
| UNSPSC Code: 23291503 | Insert Compatibility: 880-030305H-C-GM; 880-0303W05H-P-GM |
| Insert Lock Screw: 5513 020-33 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 16.66 | |
| Maximum Drill Diameter (Inch): 45/64 | |
| Maximum Drill Diameter (Decimal Inch): 0.7032 | |
| Maximum Drill Depth (Decimal Inch): 3.2920 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 030305; 0303W05 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 5.9545 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 3.4110 | |
| Flute Length (mm): 96.24 | |
| Body Length (mm): 86.64 | |
| Body Length (Decimal Inch): 3.9740 | |
| Shank Length (Decimal Inch): 1.9805 | |
| Shank Length (mm): 50.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2360; 0.2240 | |
| Insert Size (mm): 2.60 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-030305H-C-GM; 880-0303W05H-P-GM | |
| Insert Lock Screw: 5513 020-33 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 41912692 |
| Mfr# | 5724449 |
