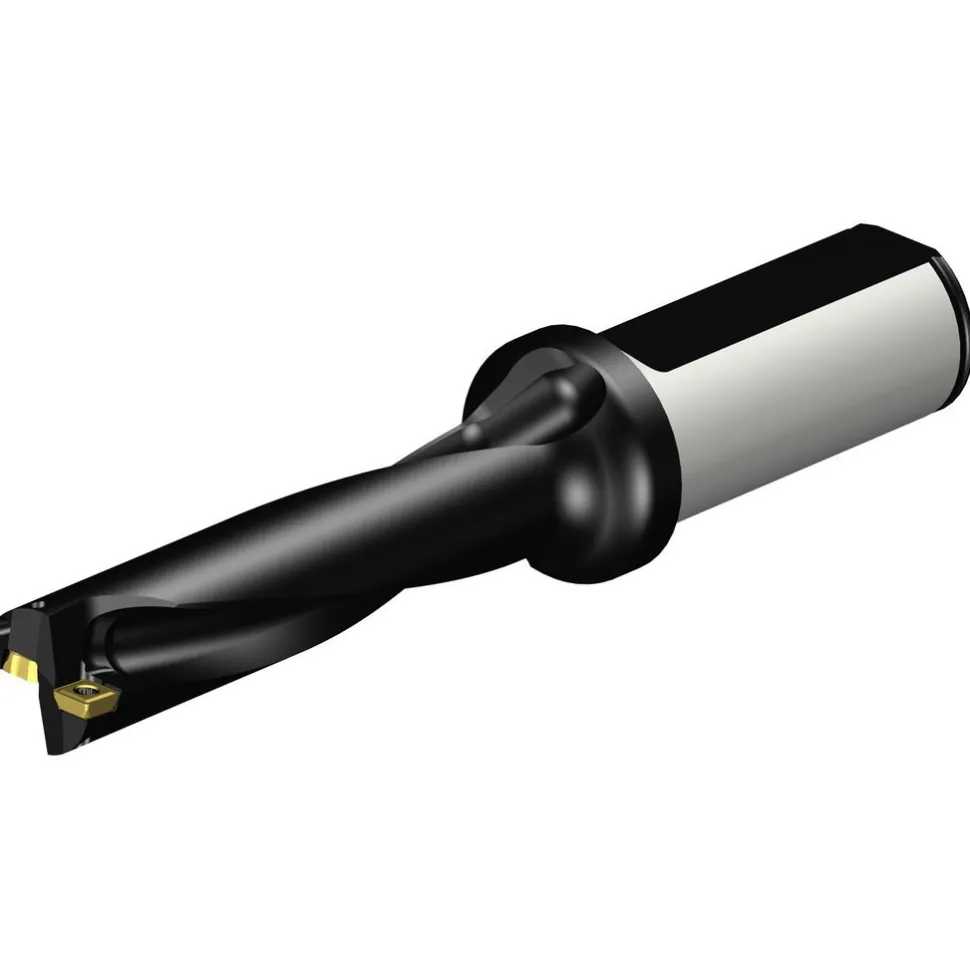

Indexable Insert Drill: A880-D0750LX25-04, 19.05 mm Max Dia, 4xD
120,89 $
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 19.05 |
| Maximum Drill Diameter (Decimal Inch): 0.7696 | Maximum Drill Depth (Decimal Inch): 3.0139 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 030305; 0303W05 | Drill Depth by Diameter Ratio: 4xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 5.9857 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 3.1490 |
| Flute Length (mm): 91.01 | Body Length (mm): 79.98 |
| Body Length (Decimal Inch): 3.7671 | Shank Length (Decimal Inch): 2.2186 |
| Shank Length (mm): 56.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2360; 0.2240 |
| Insert Size (mm): 2.60 | UNSPSC Code: 23291503 |

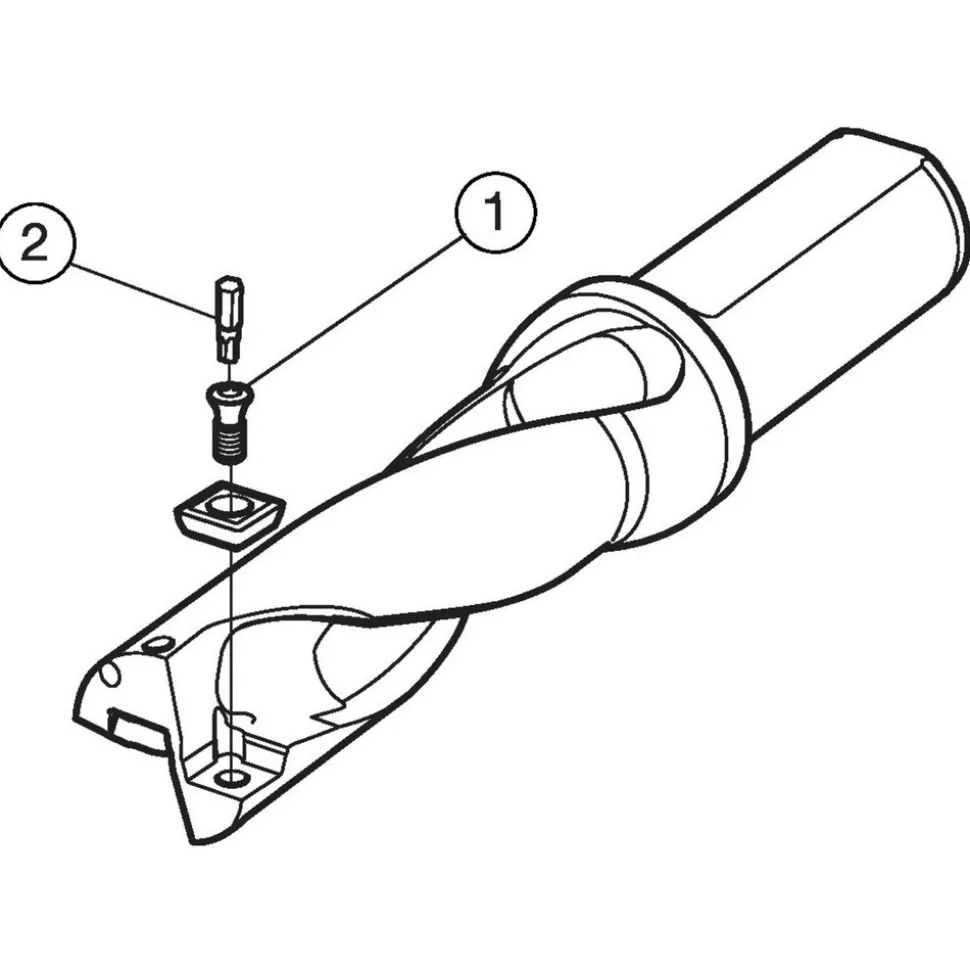

| Insert Compatibility: 880-030305H-C-GM; 880-0303W05H-P-GM | Insert Lock Screw: 5513 020-33 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 19.05 | |
| Maximum Drill Diameter (Decimal Inch): 0.7696 | |
| Maximum Drill Depth (Decimal Inch): 3.0139 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 030305; 0303W05 | |
| Drill Depth by Diameter Ratio: 4xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 5.9857 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 3.1490 | |
| Flute Length (mm): 91.01 | |
| Body Length (mm): 79.98 | |
| Body Length (Decimal Inch): 3.7671 | |
| Shank Length (Decimal Inch): 2.2186 | |
| Shank Length (mm): 56.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2360; 0.2240 | |
| Insert Size (mm): 2.60 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-030305H-C-GM; 880-0303W05H-P-GM | |
| Insert Lock Screw: 5513 020-33 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 42095703 |
| Mfr# | 5723685 |
