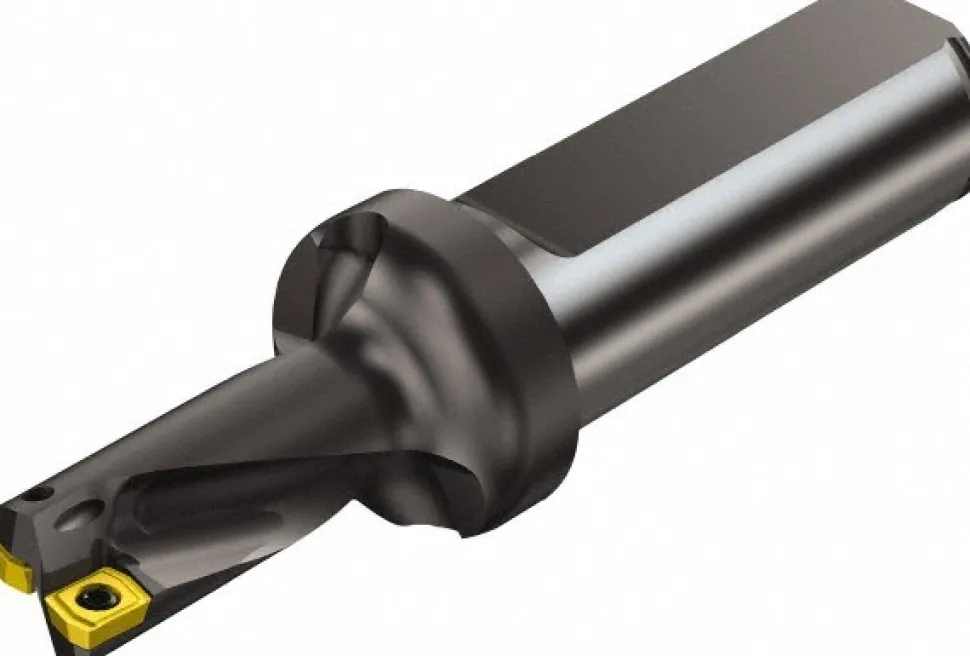

Indexable Insert Drill: A880-D0812LX25-02, 7/8″ Max Dia, 2xD, 1″ Shank Dia
128,89 $
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 20.62 |
| Maximum Drill Diameter (Inch): 7/8 | Maximum Drill Diameter (Decimal Inch): 0.8750 |
| Maximum Drill Depth (Decimal Inch): 1.6412 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1 | Shank Diameter (Decimal Inch): 1.0000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | Tool Material: Steel |
| Compatible Insert Style: 880 | Compatible Insert Size Code: 0403W05; 040305 |
| Drill Depth by Diameter Ratio: 2xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 4.6437 | Series: CoroDrill 880 |
| Flute Length (Decimal Inch): 1.7700 | Flute Length (mm): 56.93 |
| Body Length (mm): 44.96 | Body Length (Decimal Inch): 2.4218 |
| Shank Length (Decimal Inch): 2.2219 | Shank Length (mm): 56.00 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.2680; 0.2910 | Insert Size (mm): 2.80 |
| UNSPSC Code: 23291503 | Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM |
| Insert Lock Screw: 5513 020-58 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 20.62 | |
| Maximum Drill Diameter (Inch): 7/8 | |
| Maximum Drill Diameter (Decimal Inch): 0.8750 | |
| Maximum Drill Depth (Decimal Inch): 1.6412 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 0403W05; 040305 | |
| Drill Depth by Diameter Ratio: 2xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 4.6437 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 1.7700 | |
| Flute Length (mm): 56.93 | |
| Body Length (mm): 44.96 | |
| Body Length (Decimal Inch): 2.4218 | |
| Shank Length (Decimal Inch): 2.2219 | |
| Shank Length (mm): 56.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2680; 0.2910 | |
| Insert Size (mm): 2.80 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM | |
| Insert Lock Screw: 5513 020-58 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 72423635 |
| Mfr# | 5723694 |
