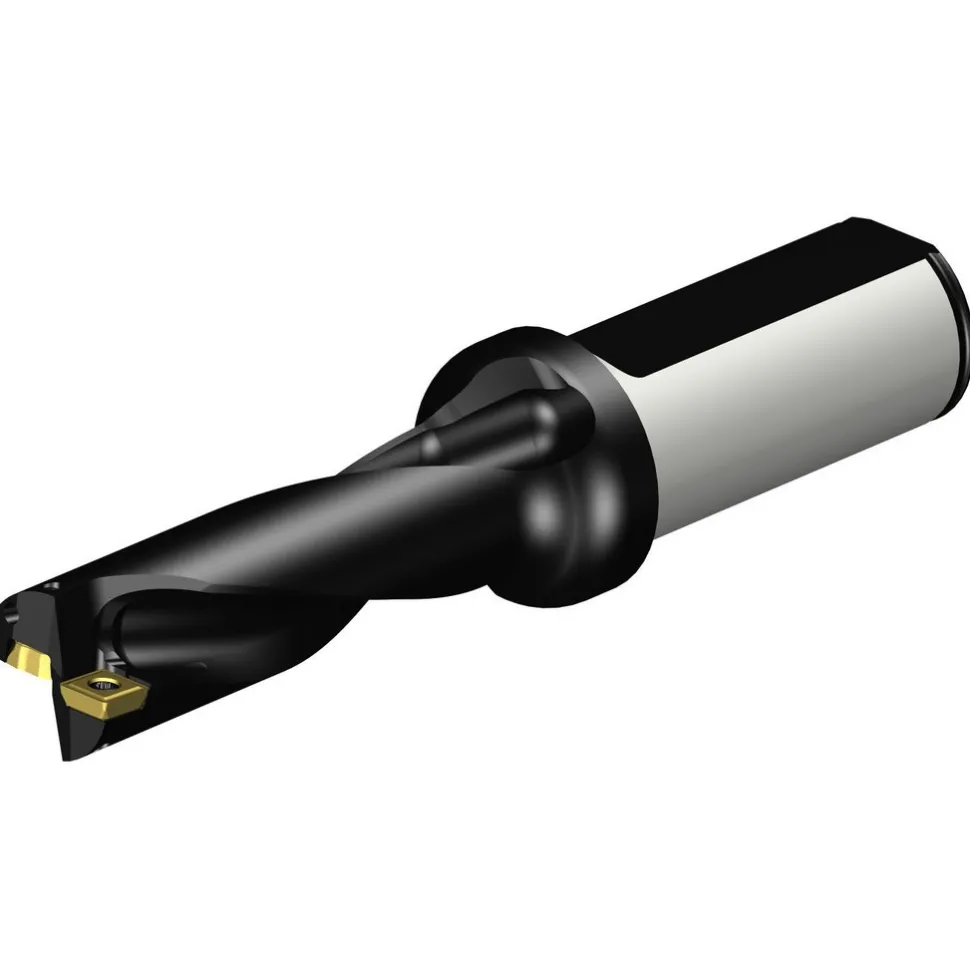

Indexable Insert Drill: A880-D0812LX25-03, 7/8″ Max Dia, 2-29/64″ Max Depth, 3xD, 1″ Shank Dia
Original price was: 763,00 $.138,99 $Current price is: 138,99 $.

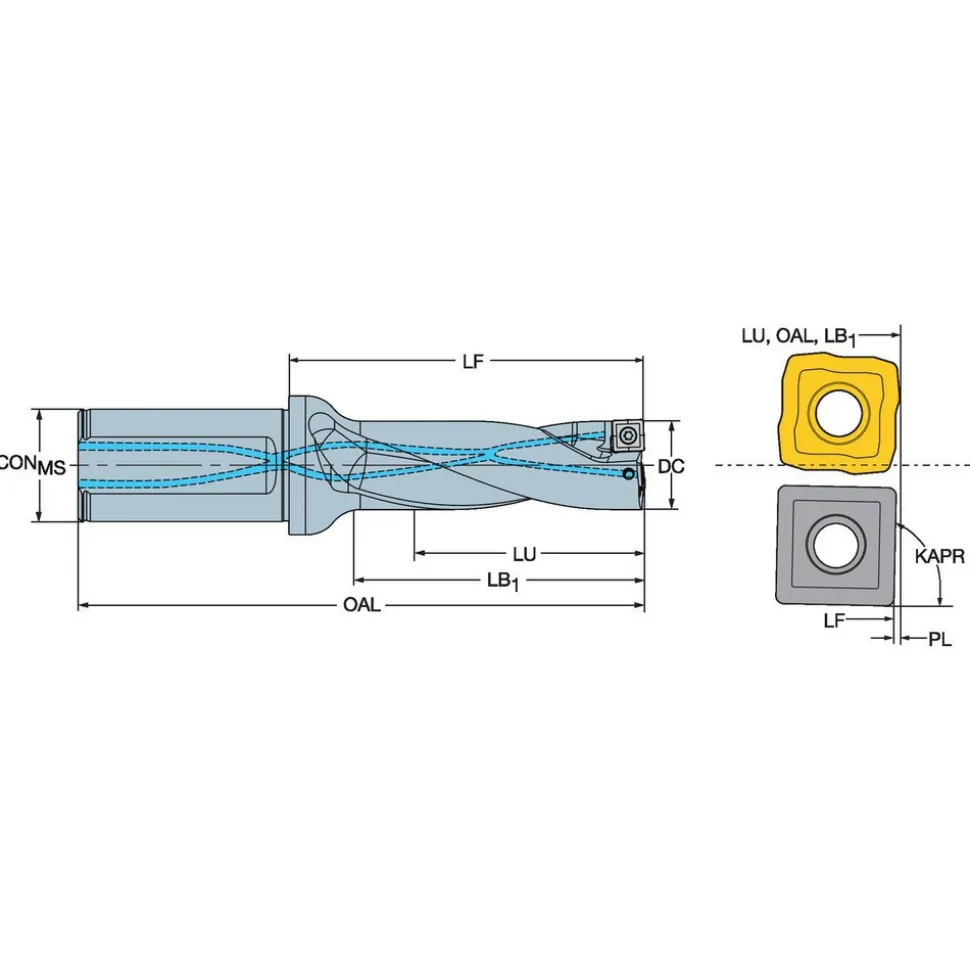

Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 20.62 |
| Maximum Drill Diameter (Inch): 7/8 | Maximum Drill Diameter (Decimal Inch): 0.8750 |
| Maximum Drill Depth (Inch): 2-29/64 | Maximum Drill Depth (Decimal Inch): 2.4532 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 0403W05; 040305 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 5.4717 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 2.5980 |
| Flute Length (mm): 77.96 | Body Length (mm): 65.99 |
| Body Length (Decimal Inch): 3.2498 | Shank Length (Decimal Inch): 2.2219 |
| Shank Length (mm): 56.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2680; 0.2910 |
| Insert Size (mm): 2.80 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM | Insert Lock Screw: 5513 020-58 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 20.62 | |
| Maximum Drill Diameter (Inch): 7/8 | |
| Maximum Drill Diameter (Decimal Inch): 0.8750 | |
| Maximum Drill Depth (Inch): 2-29/64 | |
| Maximum Drill Depth (Decimal Inch): 2.4532 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 0403W05; 040305 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 5.4717 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 2.5980 | |
| Flute Length (mm): 77.96 | |
| Body Length (mm): 65.99 | |
| Body Length (Decimal Inch): 3.2498 | |
| Shank Length (Decimal Inch): 2.2219 | |
| Shank Length (mm): 56.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2680; 0.2910 | |
| Insert Size (mm): 2.80 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM | |
| Insert Lock Screw: 5513 020-58 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 52060951 |
| Mfr# | 5723696 |
