Sale!

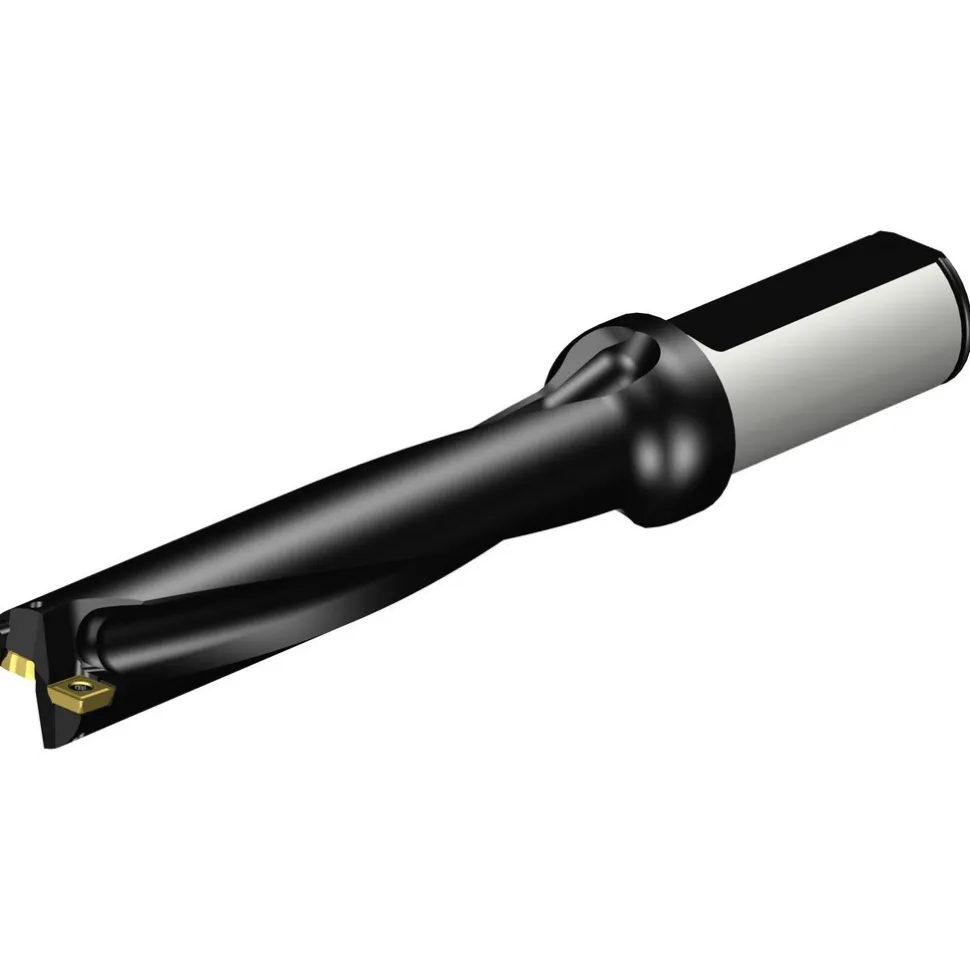

Indexable Insert Drill: A880-D0875LX25-05, 22.23 mm Max Dia, 114.46 mm Max Depth, 5xD
Original price was: 954,00 $.122,99 $Current price is: 122,99 $.

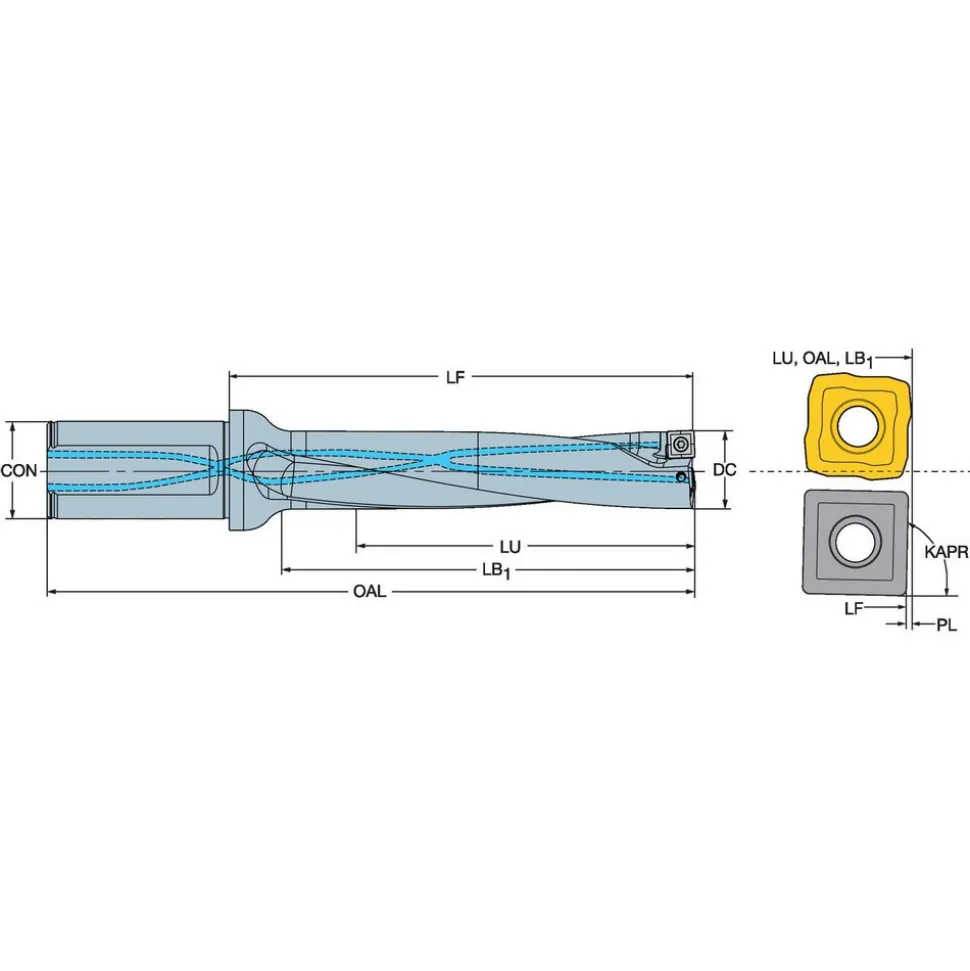

Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 22.23 |
| Maximum Drill Diameter (Decimal Inch): 0.9206 | Maximum Drill Depth (Decimal Inch): 4.3901 |
| Maximum Drill Depth (mm): 114.46 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1 | Shank Diameter (Decimal Inch): 1.0000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | Maximum Drill Depth Range (mm): 100.00 to 150.00 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 0403W05; 040305 | Drill Depth by Diameter Ratio: 5xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 7.4177 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 4.5060 |
| Flute Length (mm): 127.39 | Body Length (mm): 114.45 |
| Body Length (Decimal Inch): 5.1979 | Shank Length (Decimal Inch): 2.2198 |
| Shank Length (mm): 56.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2680; 0.2910 |
| Insert Size (mm): 2.80 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM | Insert Lock Screw: 5513 020-58 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 22.23 | |
| Maximum Drill Diameter (Decimal Inch): 0.9206 | |
| Maximum Drill Depth (Decimal Inch): 4.3901 | |
| Maximum Drill Depth (mm): 114.46 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | |
| Maximum Drill Depth Range (mm): 100.00 to 150.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 0403W05; 040305 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 7.4177 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 4.5060 | |
| Flute Length (mm): 127.39 | |
| Body Length (mm): 114.45 | |
| Body Length (Decimal Inch): 5.1979 | |
| Shank Length (Decimal Inch): 2.2198 | |
| Shank Length (mm): 56.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2680; 0.2910 | |
| Insert Size (mm): 2.80 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-040305H-C-GM; 880-0403W05H-P-GM | |
| Insert Lock Screw: 5513 020-58 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 58148164 |
| Mfr# | 5723665 |
