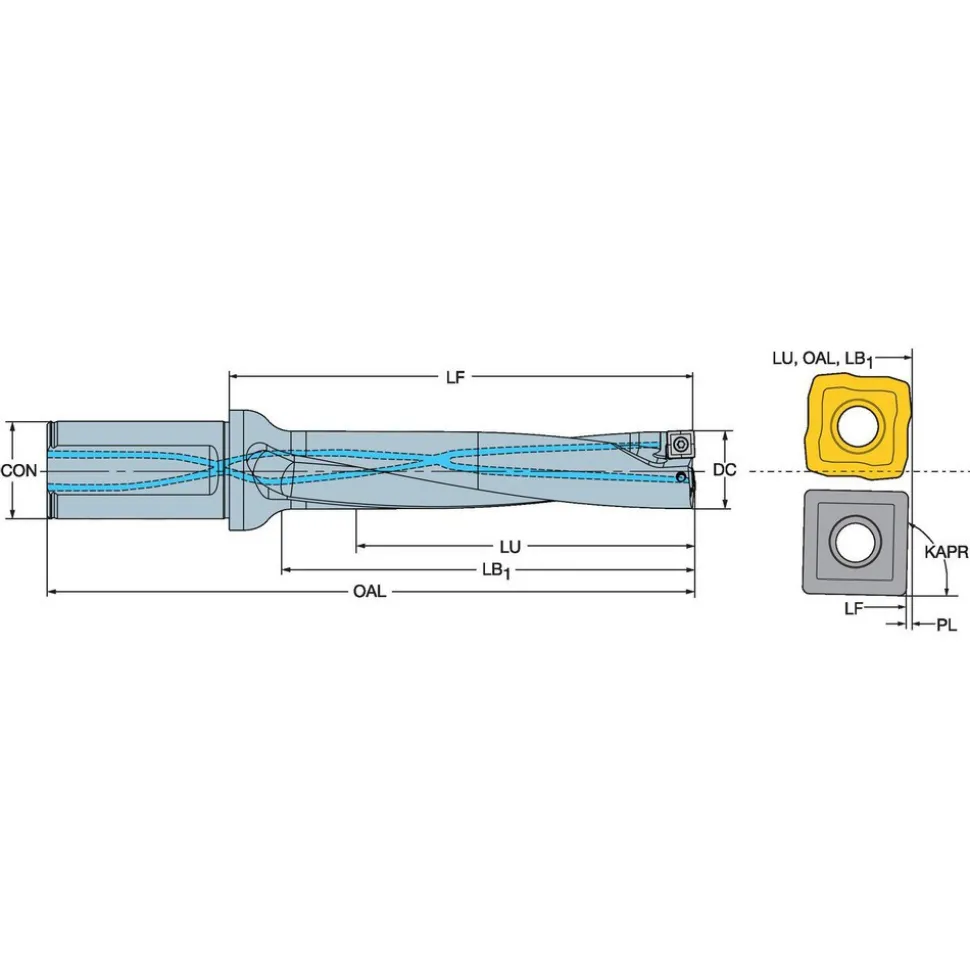

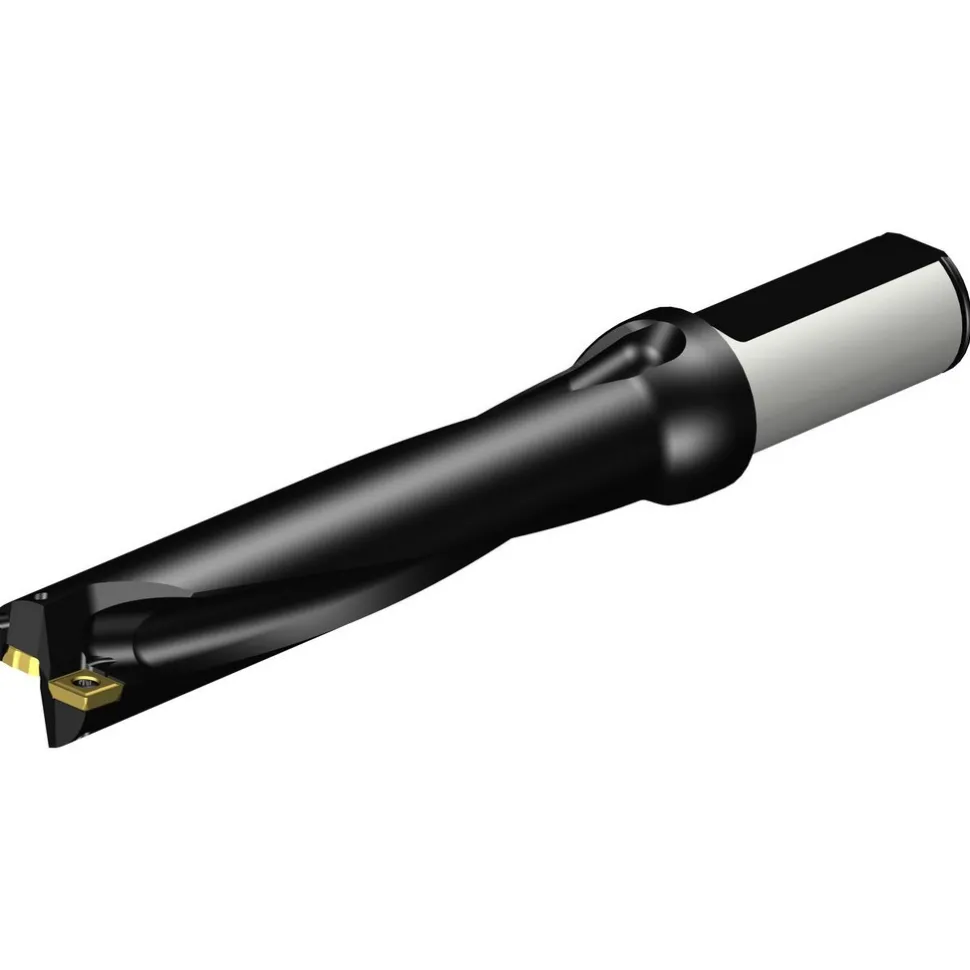

Indexable Insert Drill: A880-D1000LX25-05, 25.40 mm Max Dia, 5xD
132,99 $
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 25.40 |
| Maximum Drill Diameter (Decimal Inch): 1.0748 | Maximum Drill Depth (Decimal Inch): 5.0176 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 050305; 0503W05 | Drill Depth by Diameter Ratio: 5xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 8.1367 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 5.1500 |
| Flute Length (mm): 145.65 | Body Length (mm): 130.81 |
| Body Length (Decimal Inch): 5.9144 | Shank Length (Decimal Inch): 2.2223 |
| Shank Length (mm): 56.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.3310; 0.3500 |
| Insert Size (mm): 3.00 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-050305H-C-GM; 880-0503W05H-P-GM | Insert Lock Screw: 5513 020-57 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 25.40 | |
| Maximum Drill Diameter (Decimal Inch): 1.0748 | |
| Maximum Drill Depth (Decimal Inch): 5.0176 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 050305; 0503W05 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 8.1367 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 5.1500 | |
| Flute Length (mm): 145.65 | |
| Body Length (mm): 130.81 | |
| Body Length (Decimal Inch): 5.9144 | |
| Shank Length (Decimal Inch): 2.2223 | |
| Shank Length (mm): 56.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3310; 0.3500 | |
| Insert Size (mm): 3.00 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-050305H-C-GM; 880-0503W05H-P-GM | |
| Insert Lock Screw: 5513 020-57 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 91084541 |
| Mfr# | 5723833 |
