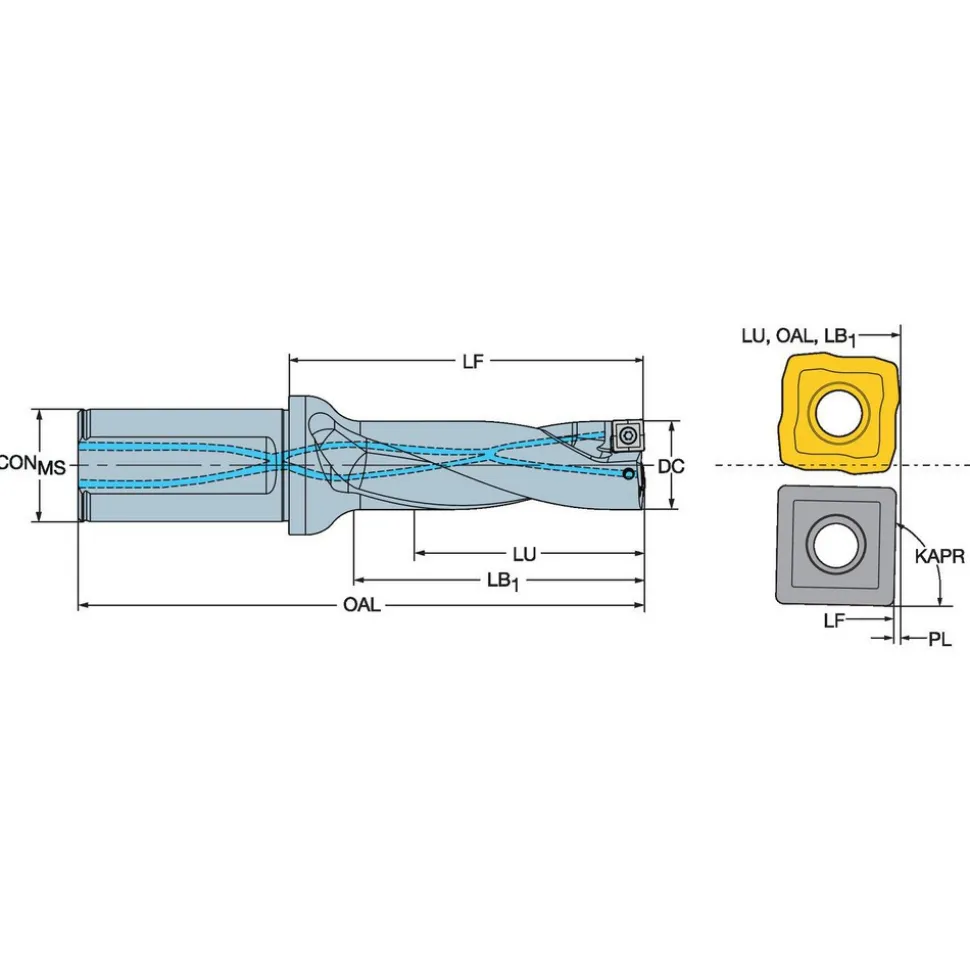

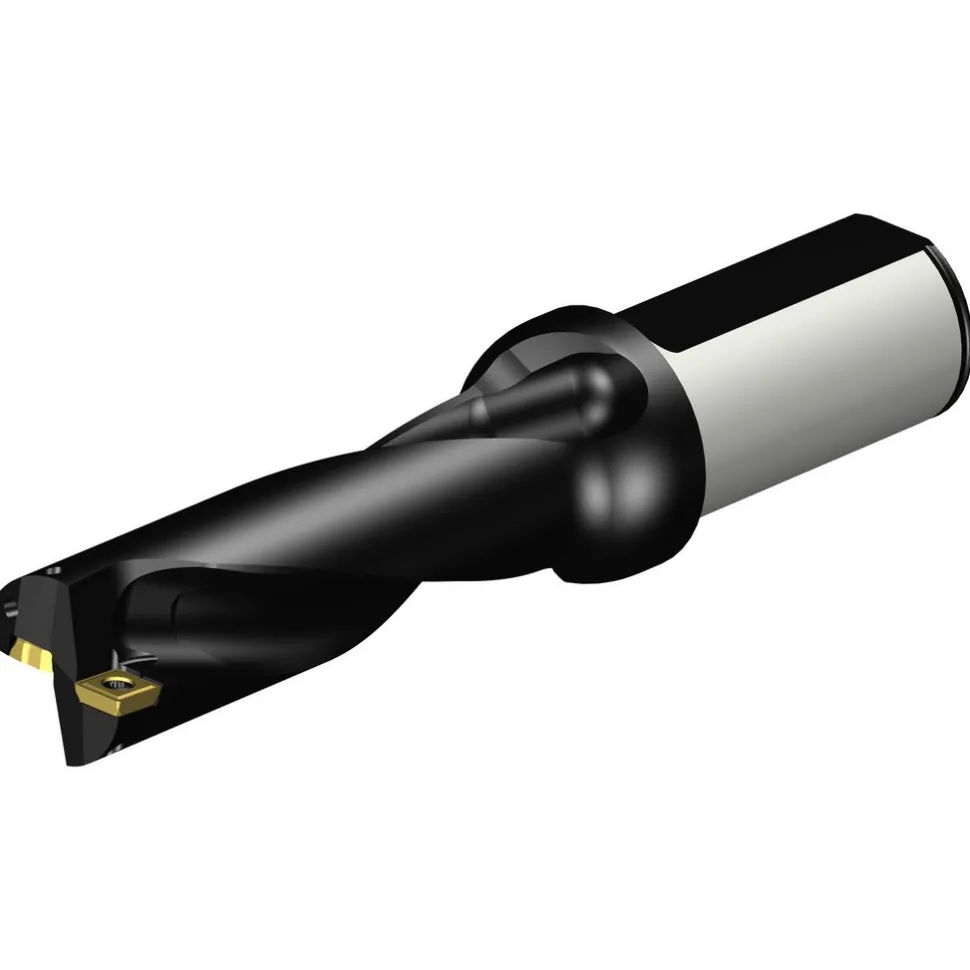

Indexable Insert Drill: A880-D1125LX31-03, 28.57 mm Max Dia, 3xD
126,89 $
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 28.57 |
| Maximum Drill Diameter (Decimal Inch): 1.1644 | Maximum Drill Depth (Decimal Inch): 3.3964 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1-1/4 |
| Shank Diameter (Decimal Inch): 1.2500 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 050305; 0503W05 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 6.7632 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 3.5440 |
| Flute Length (mm): 106.76 | Body Length (mm): 90.02 |
| Body Length (Decimal Inch): 4.3796 | Shank Length (Decimal Inch): 2.3836 |
| Shank Length (mm): 60.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.3310; 0.3500 |
| Insert Size (mm): 3.00 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-050305H-C-GM; 880-0503W05H-P-GM | Insert Lock Screw: 5513 020-57 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 28.57 | |
| Maximum Drill Diameter (Decimal Inch): 1.1644 | |
| Maximum Drill Depth (Decimal Inch): 3.3964 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 050305; 0503W05 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 6.7632 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 3.5440 | |
| Flute Length (mm): 106.76 | |
| Body Length (mm): 90.02 | |
| Body Length (Decimal Inch): 4.3796 | |
| Shank Length (Decimal Inch): 2.3836 | |
| Shank Length (mm): 60.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3310; 0.3500 | |
| Insert Size (mm): 3.00 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-050305H-C-GM; 880-0503W05H-P-GM | |
| Insert Lock Screw: 5513 020-57 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 01098623 |
| Mfr# | 5723794 |
