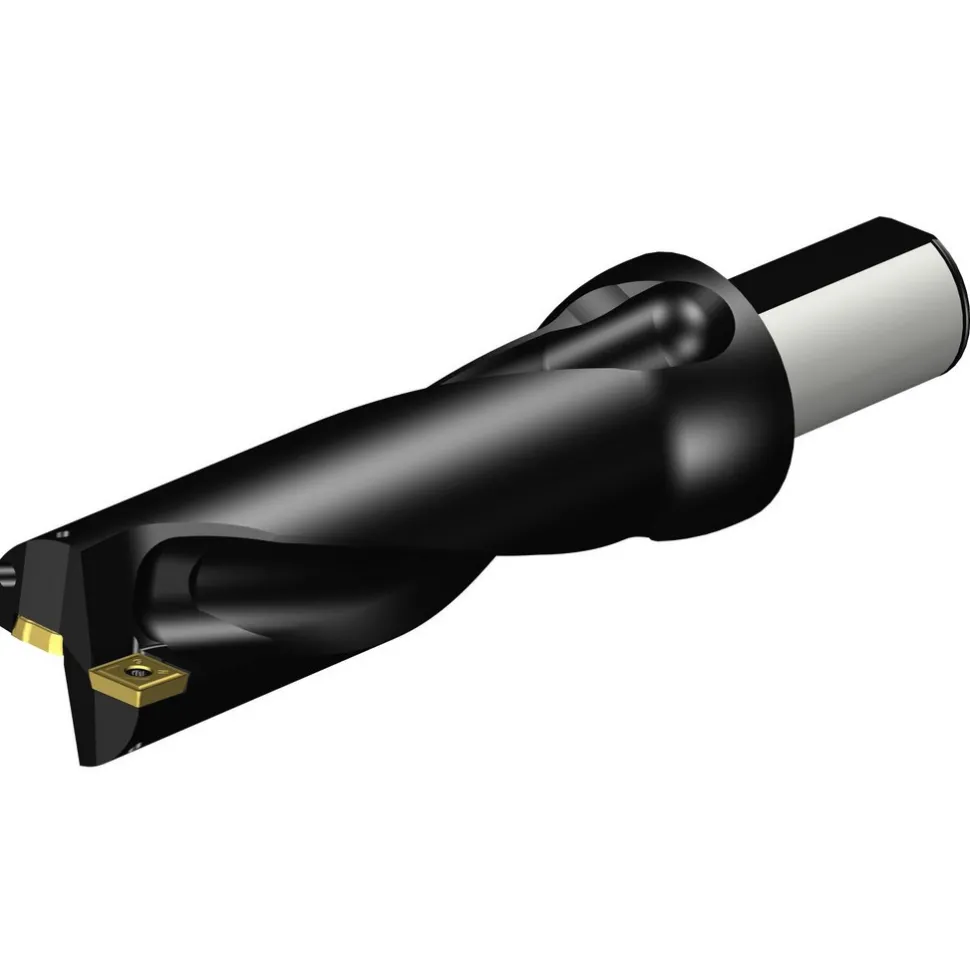

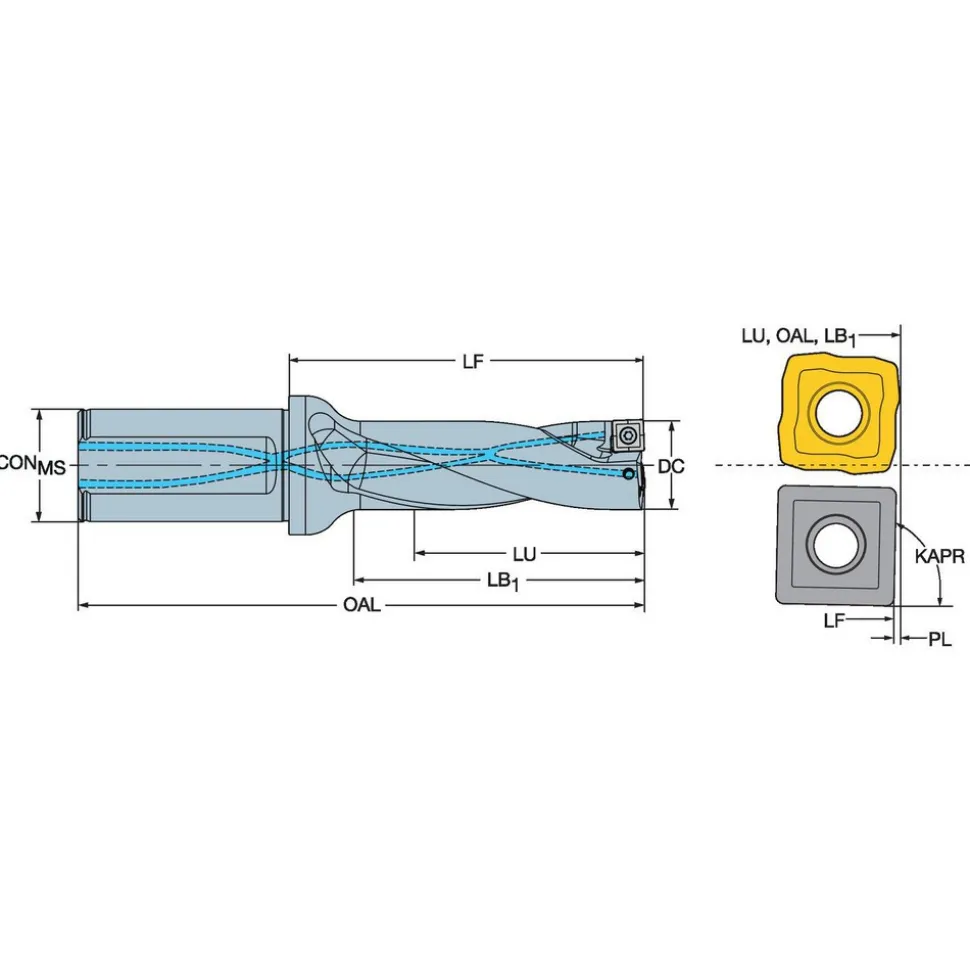

Indexable Insert Drill: A880-D2000LX38-03, 50.80 mm Max Dia, 157.48 mm Max Depth, 3xD
124,89 $
Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 50.80 |
| Maximum Drill Diameter (Decimal Inch): 2.0512 | Maximum Drill Depth (Decimal Inch): 6.0322 |
| Maximum Drill Depth (mm): 157.48 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/2 | Shank Diameter (Decimal Inch): 1.5000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 | Maximum Drill Depth Range (mm): 150.00 to 200.00 |
| Tool Material: Steel | Compatible Insert Style: 880 |
| Compatible Insert Size Code: 080508; 0805W08 | Drill Depth by Diameter Ratio: 3xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 10.3379 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 6.2000 |
| Flute Length (mm): 187.56 | Body Length (mm): 157.48 |
| Body Length (Decimal Inch): 7.5498 | Shank Length (Decimal Inch): 2.7881 |
| Shank Length (mm): 70.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.5850; 0.6080 |
| Insert Size (mm): 4.50 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-080508H-C-GM; 880-0805W08H-P-GM | Insert Lock Screw: 416.1-834 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 50.80 | |
| Maximum Drill Diameter (Decimal Inch): 2.0512 | |
| Maximum Drill Depth (Decimal Inch): 6.0322 | |
| Maximum Drill Depth (mm): 157.48 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/2 | |
| Shank Diameter (Decimal Inch): 1.5000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 | |
| Maximum Drill Depth Range (mm): 150.00 to 200.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 080508; 0805W08 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 10.3379 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 6.2000 | |
| Flute Length (mm): 187.56 | |
| Body Length (mm): 157.48 | |
| Body Length (Decimal Inch): 7.5498 | |
| Shank Length (Decimal Inch): 2.7881 | |
| Shank Length (mm): 70.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.5850; 0.6080 | |
| Insert Size (mm): 4.50 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-080508H-C-GM; 880-0805W08H-P-GM | |
| Insert Lock Screw: 416.1-834 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 30803902 |
| Mfr# | 5723443 |
