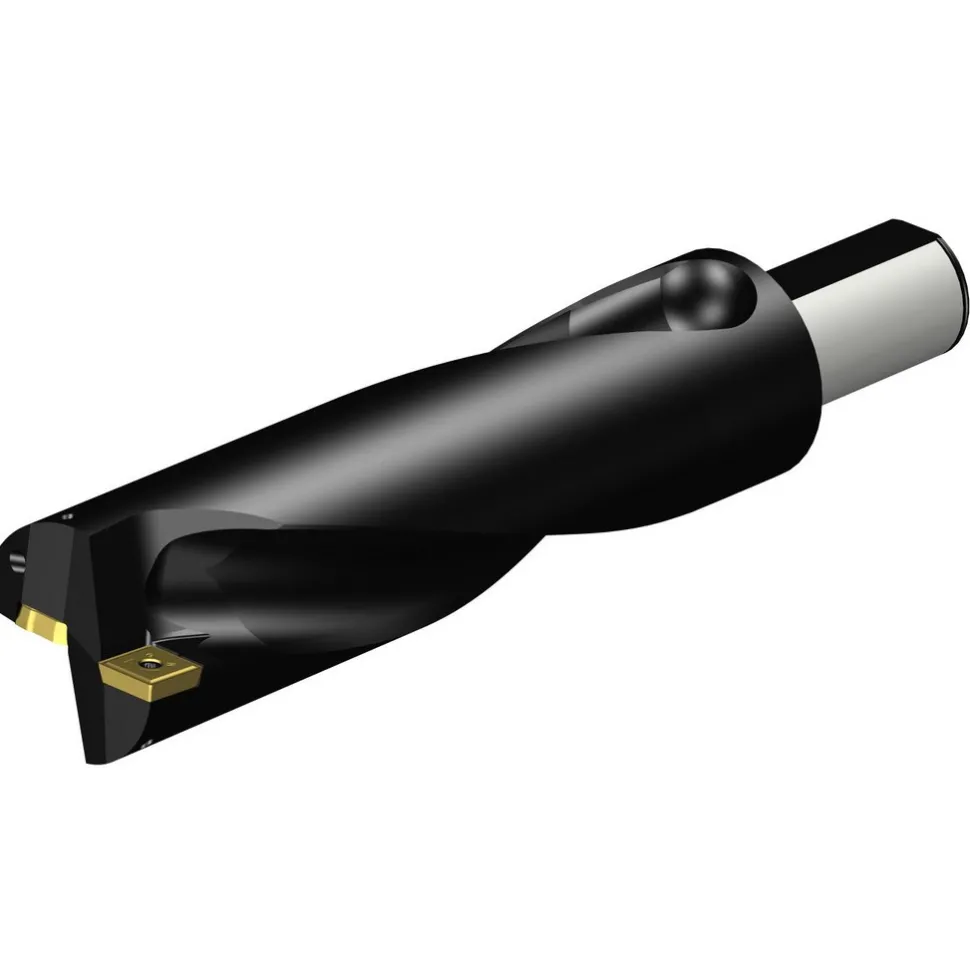

Indexable Insert Drill: A880-D2500LX38-03, 63.50 mm Max Dia, 3xD
Original price was: 1 319,00 $.120,99 $Current price is: 120,99 $.

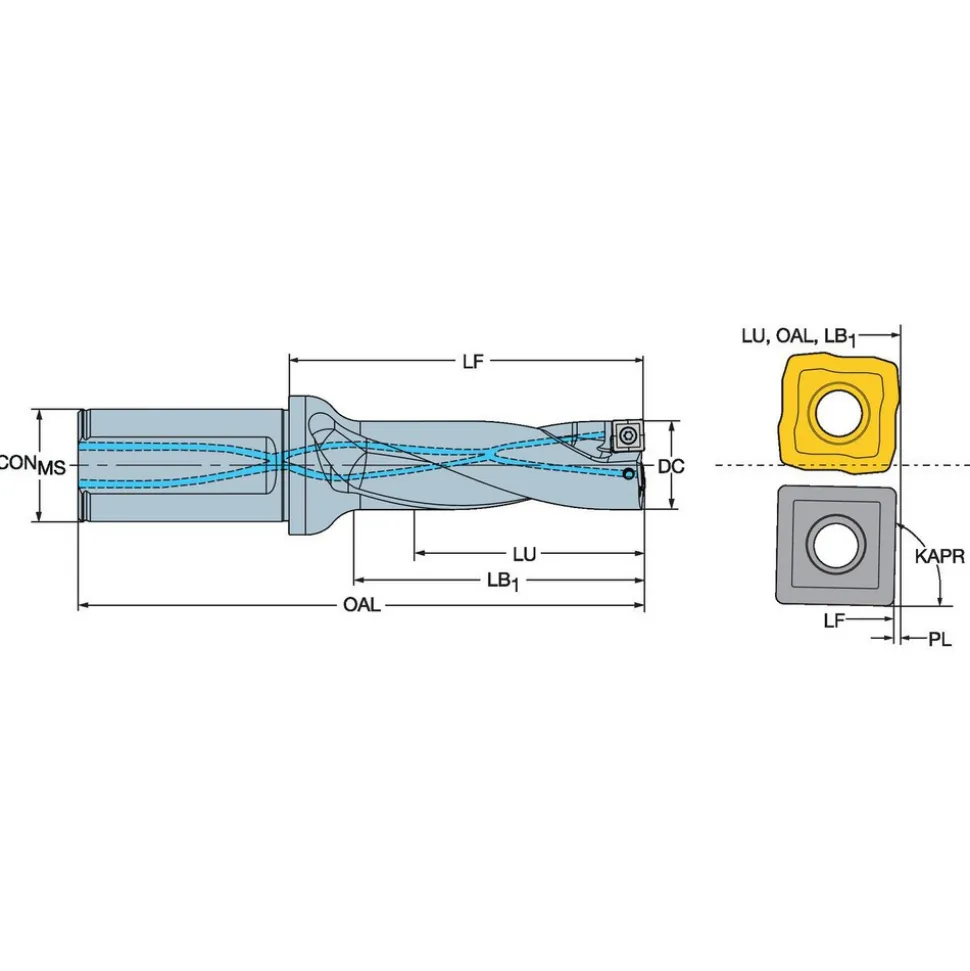

Specifications
| Compatible Drill Style: A880 | Maximum Drill Diameter (mm): 63.50 |
| Maximum Drill Diameter (Decimal Inch): 2.5512 | Maximum Drill Depth (Inch): 7-3/4 |
| Maximum Drill Depth (Decimal Inch): 7.5378 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/2 | Shank Diameter (Decimal Inch): 1.5000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 7.0000 to 10.0000 | Tool Material: Steel |
| Compatible Insert Style: 880 | Compatible Insert Size Code: 090608; 0906W08 |
| Drill Depth by Diameter Ratio: 3xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 12.1879 | Overall Length (Inch): 12-3/16 |
| Series: CoroDrill 880 | Flute Length (Decimal Inch): 7.7500 |
| Flute Length (mm): 234.55 | Body Length (mm): 196.85 |
| Body Length (Decimal Inch): 9.3942 | Shank Length (Decimal Inch): 2.7937 |
| Shank Length (mm): 70.00 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.7320; 0.7050 |
| Insert Size (mm): 5.50 | UNSPSC Code: 23291503 |
| Insert Compatibility: 880-0906W08H-P-GM; 880-090608H-C-GM | Insert Lock Screw: 416.1-834 |
| Coolant Through: Yes | Country of Origin: Sweden |
| Compatible Drill Style: A880 | |
| Maximum Drill Diameter (mm): 63.50 | |
| Maximum Drill Diameter (Decimal Inch): 2.5512 | |
| Maximum Drill Depth (Inch): 7-3/4 | |
| Maximum Drill Depth (Decimal Inch): 7.5378 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/2 | |
| Shank Diameter (Decimal Inch): 1.5000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 7.0000 to 10.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: 880 | |
| Compatible Insert Size Code: 090608; 0906W08 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 12.1879 | |
| Overall Length (Inch): 12-3/16 | |
| Series: CoroDrill 880 | |
| Flute Length (Decimal Inch): 7.7500 | |
| Flute Length (mm): 234.55 | |
| Body Length (mm): 196.85 | |
| Body Length (Decimal Inch): 9.3942 | |
| Shank Length (Decimal Inch): 2.7937 | |
| Shank Length (mm): 70.00 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.7320; 0.7050 | |
| Insert Size (mm): 5.50 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: 880-0906W08H-P-GM; 880-090608H-C-GM | |
| Insert Lock Screw: 416.1-834 | |
| Coolant Through: Yes | |
| Country of Origin: Sweden |
| MSC# | 52071420 |
| Mfr# | 5723243 |
