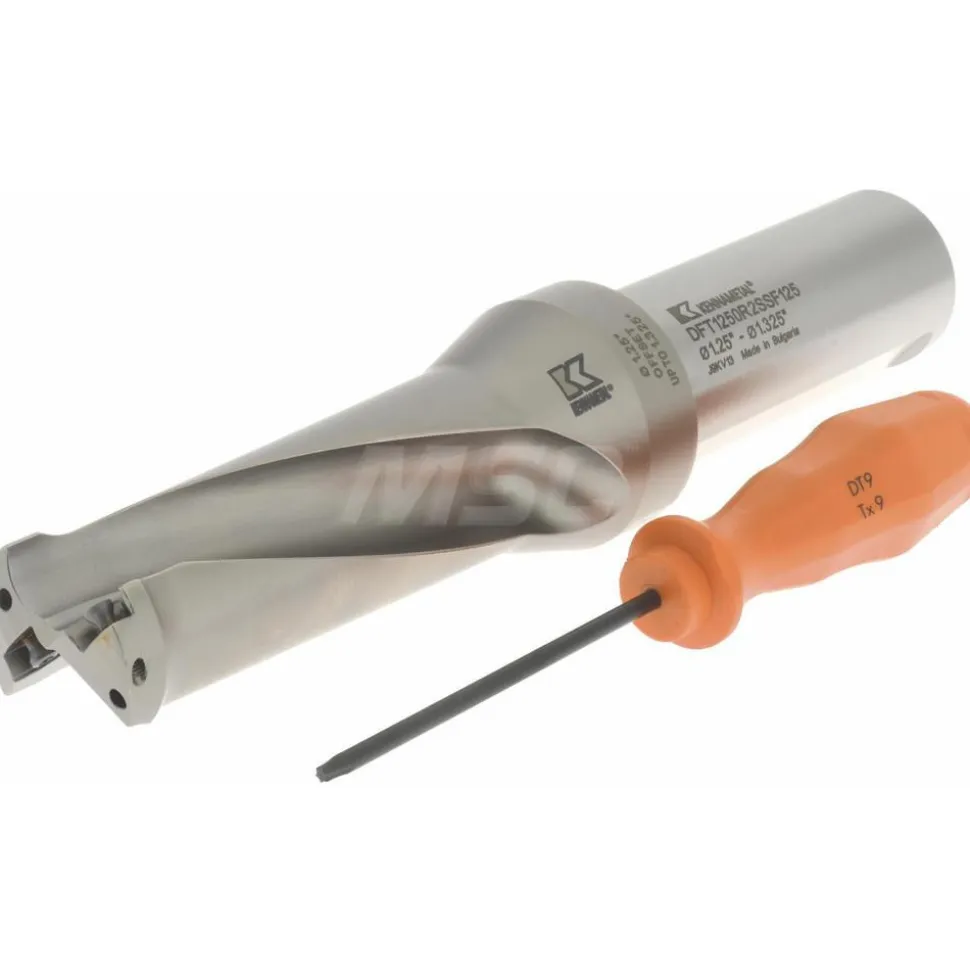

Indexable Insert Drill: DFT1250R2SSF125, 33.66 mm Max Dia, 79.50 mm Max Depth, 2.5xD
120,89 $
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 33.66 |
| Maximum Drill Diameter (Decimal Inch): 1.3250 | Maximum Drill Depth (Decimal Inch): 3.1300 |
| Maximum Drill Depth (mm): 79.50 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/4 | Shank Diameter (Decimal Inch): 1.2500 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | Maximum Drill Depth Range (mm): 75.00 to 100.00 |
| Tool Material: Steel | Compatible Insert Style: DFT |
| Compatible Insert Size Code: 05T3.. | Drill Depth by Diameter Ratio: 2.5xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 8.0000 |
| Overall Length (Inch): 8 | Series: DFT |
| Flute Length (Decimal Inch): 3.1300 | Body Length (mm): 120.65 |
| Body Length (Decimal Inch): 4.7500 | Shank Length (Decimal Inch): 3.2500 |
| Shank Length (mm): 82.55 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2080×0.1480 |
| Insert Size (mm): 5.29×3.75 | UNSPSC Code: 23291503 |
| Insert Compatibility: DFT05T3. | Body Side Coolant Hole Thread Size (Inch): 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | Insert Lock Screw: M3-0.5×7.2T9 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 33.66 | |
| Maximum Drill Diameter (Decimal Inch): 1.3250 | |
| Maximum Drill Depth (Decimal Inch): 3.1300 | |
| Maximum Drill Depth (mm): 79.50 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Maximum Drill Depth Range (mm): 75.00 to 100.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 05T3.. | |
| Drill Depth by Diameter Ratio: 2.5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 8.0000 | |
| Overall Length (Inch): 8 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 3.1300 | |
| Body Length (mm): 120.65 | |
| Body Length (Decimal Inch): 4.7500 | |
| Shank Length (Decimal Inch): 3.2500 | |
| Shank Length (mm): 82.55 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2080×0.1480 | |
| Insert Size (mm): 5.29×3.75 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT05T3. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M3-0.5×7.2T9 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 01246768 |
| Mfr# | 1528347 |
| Big Book# | 172 |
