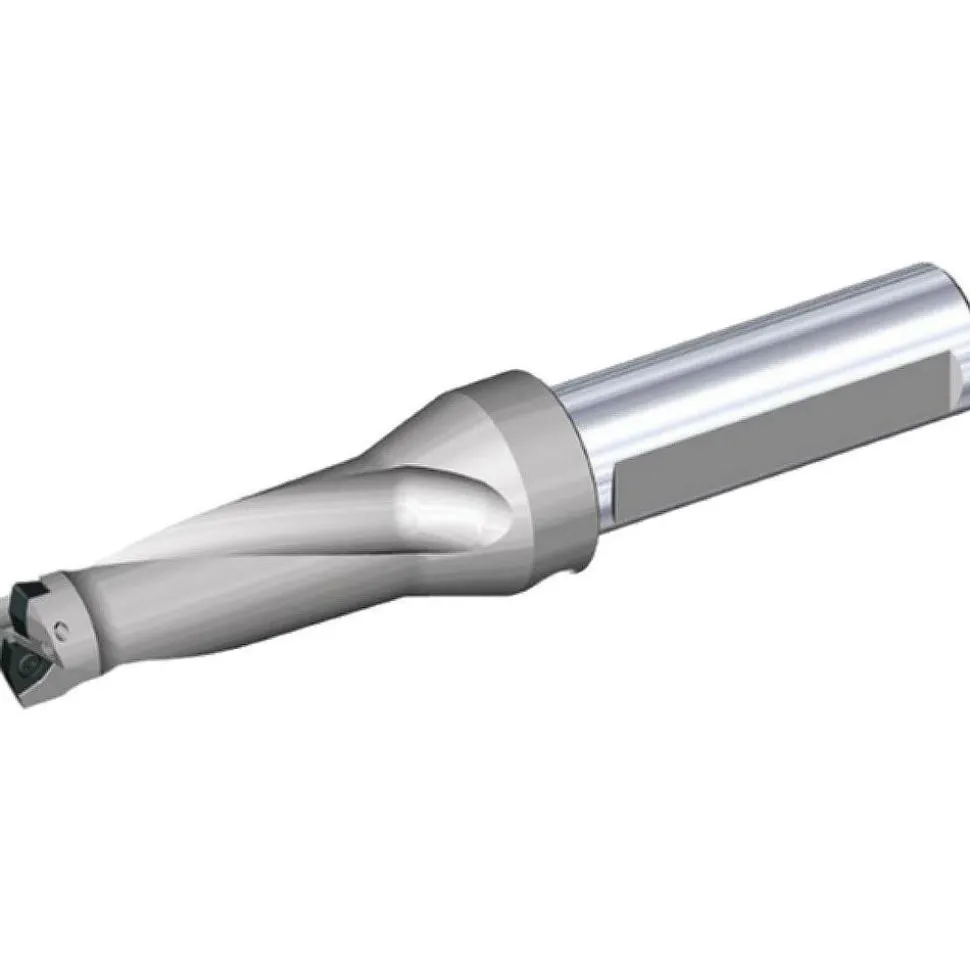

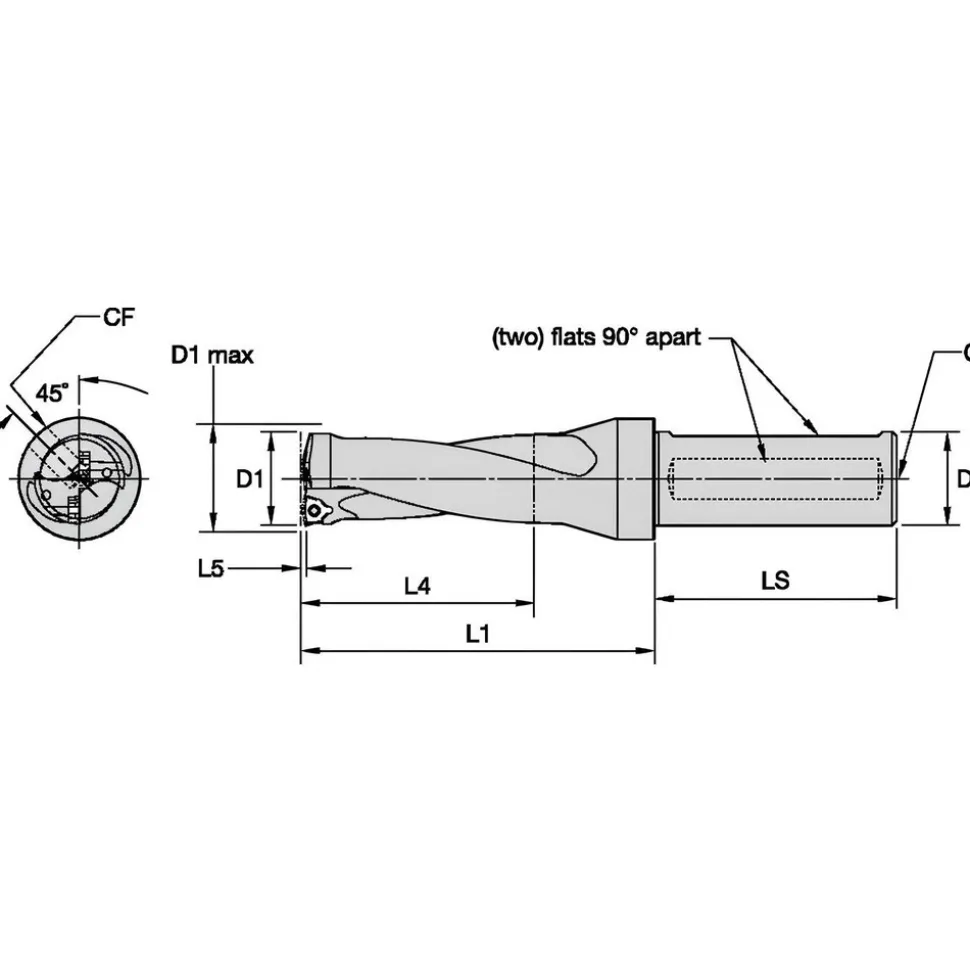

Indexable Insert Drill: DFT1500R2SSF150, 1-5/8″ Max Dia, 3-3/4″ Max Depth, 2.5xD, 1-1/2″ Shank Dia
120,99 $
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 41.28 |
| Maximum Drill Diameter (Inch): 1-5/8 | Maximum Drill Diameter (Decimal Inch): 1.6250 |
| Maximum Drill Depth (Inch): 3-3/4 | Maximum Drill Depth (Decimal Inch): 3.7500 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 1-1/2 |
| Shank Diameter (Decimal Inch): 1.5000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 |
| Tool Material: Steel | Compatible Insert Style: DFT |
| Compatible Insert Size Code: 06T3.. | Drill Depth by Diameter Ratio: 2.5xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 9.2500 |
| Overall Length (Inch): 9-1/4 | Series: DFT |
| Flute Length (Decimal Inch): 3.7500 | Body Length (mm): 139.70 |
| Body Length (Decimal Inch): 5.5000 | Shank Length (Decimal Inch): 3.7500 |
| Shank Length (mm): 95.25 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2600×0.1480 |
| Insert Size (mm): 6.62×3.75 | UNSPSC Code: 23291503 |
| Insert Compatibility: DFT06T3. | Body Side Coolant Hole Thread Size (Inch): 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | Insert Lock Screw: M3.5-0.6×8.3T15 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 41.28 | |
| Maximum Drill Diameter (Inch): 1-5/8 | |
| Maximum Drill Diameter (Decimal Inch): 1.6250 | |
| Maximum Drill Depth (Inch): 3-3/4 | |
| Maximum Drill Depth (Decimal Inch): 3.7500 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/2 | |
| Shank Diameter (Decimal Inch): 1.5000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 06T3.. | |
| Drill Depth by Diameter Ratio: 2.5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 9.2500 | |
| Overall Length (Inch): 9-1/4 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 3.7500 | |
| Body Length (mm): 139.70 | |
| Body Length (Decimal Inch): 5.5000 | |
| Shank Length (Decimal Inch): 3.7500 | |
| Shank Length (mm): 95.25 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2600×0.1480 | |
| Insert Size (mm): 6.62×3.75 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT06T3. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M3.5-0.6×8.3T15 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 83961979 |
| Mfr# | 1528398 |
| Big Book# | 172 |
