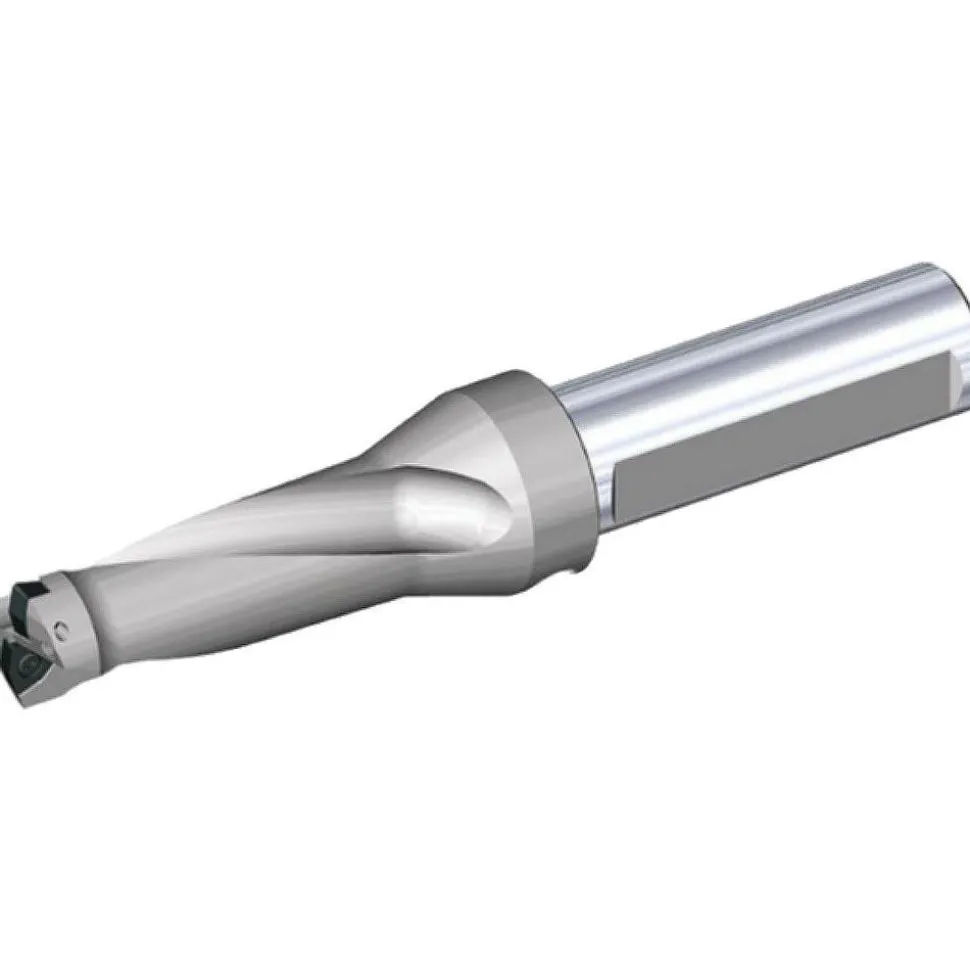

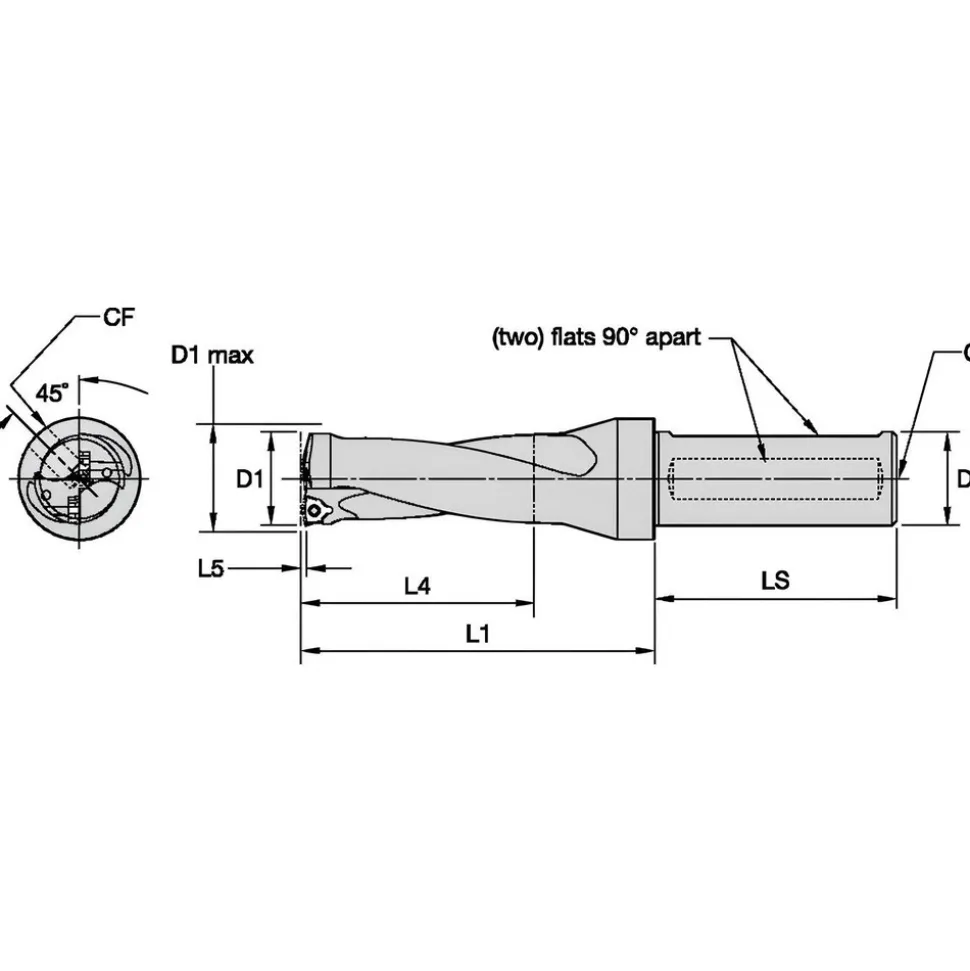

Indexable Insert Drill: DFT1625R2SSF125, 1-3/4″ Max Dia, 2.5xD, 1-1/4″ Shank Dia
140,99 $
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 44.45 |
| Maximum Drill Diameter (Inch): 1-3/4 | Maximum Drill Diameter (Decimal Inch): 1.7500 |
| Maximum Drill Depth (Decimal Inch): 4.1000 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1-1/4 | Shank Diameter (Decimal Inch): 1.2500 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | Tool Material: Steel |
| Compatible Insert Style: DFT | Compatible Insert Size Code: 0704.. |
| Drill Depth by Diameter Ratio: 2.5xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 9.1250 | Overall Length (Inch): 9-1/8 |
| Series: DFT | Flute Length (Decimal Inch): 4.1000 |
| Body Length (mm): 149.23 | Body Length (Decimal Inch): 5.8750 |
| Shank Length (Decimal Inch): 3.2500 | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.3130×0.1870 |
| Insert Size (mm): 7.94×4.75 | UNSPSC Code: 23291503 |
| Insert Compatibility: DFT0704. | Body Side Coolant Hole Thread Size (Inch): 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | Insert Lock Screw: M3.5-0.6x12T15 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 44.45 | |
| Maximum Drill Diameter (Inch): 1-3/4 | |
| Maximum Drill Diameter (Decimal Inch): 1.7500 | |
| Maximum Drill Depth (Decimal Inch): 4.1000 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 4.0000 to 5.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 0704.. | |
| Drill Depth by Diameter Ratio: 2.5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 9.1250 | |
| Overall Length (Inch): 9-1/8 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 4.1000 | |
| Body Length (mm): 149.23 | |
| Body Length (Decimal Inch): 5.8750 | |
| Shank Length (Decimal Inch): 3.2500 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3130×0.1870 | |
| Insert Size (mm): 7.94×4.75 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT0704. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M3.5-0.6x12T15 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 04785572 |
| Mfr# | 1528367 |
| Big Book# | 172 |
