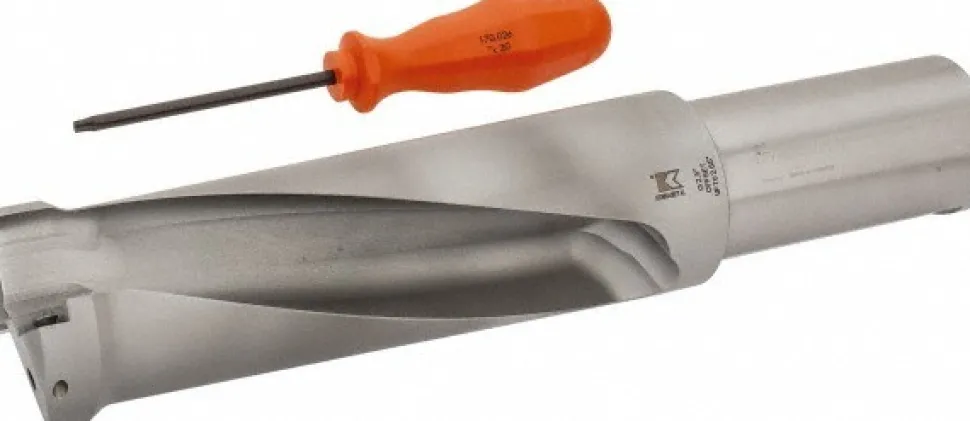

Indexable Insert Drill: DFT2500R2SSF200, 67.31 mm Max Dia, 158.75 mm Max Depth, 2.5xD
134,99 $
Specifications
| Compatible Drill Style: DFT | Maximum Drill Diameter (mm): 67.31 |
| Maximum Drill Diameter (Decimal Inch): 2.6500 | Maximum Drill Depth (Inch): 6-1/4 |
| Maximum Drill Depth (Decimal Inch): 6.2500 | Maximum Drill Depth (mm): 158.75 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 2 |
| Shank Diameter (Decimal Inch): 2.0000 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm): 150.00 to 200.00 | Tool Material: Steel |
| Compatible Insert Style: DFT | Compatible Insert Size Code: 0905.. |
| Drill Depth by Diameter Ratio: 2.5xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 12.5000 | Overall Length (Inch): 12-1/2 |
| Series: DFT | Flute Length (Decimal Inch): 6.2500 |
| Body Length (mm): 215.90 | Body Length (Decimal Inch): 8.5000 |
| Shank Length (Decimal Inch): 4.0000 | Shank Length (mm): 101.60 |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3910×0.2070 | Insert Size (mm): 9.92×5.25 |
| UNSPSC Code: 23291503 | Insert Compatibility: DFT0905. |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | Shank End Coolant Hole Thread Size (Inch): 1/4-18 |
| Insert Lock Screw: M5-0.8×12.5T20 | Coolant Through: Yes |
| Country of Origin: Bulgaria | |
| Compatible Drill Style: DFT | |
| Maximum Drill Diameter (mm): 67.31 | |
| Maximum Drill Diameter (Decimal Inch): 2.6500 | |
| Maximum Drill Depth (Inch): 6-1/4 | |
| Maximum Drill Depth (Decimal Inch): 6.2500 | |
| Maximum Drill Depth (mm): 158.75 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 2 | |
| Shank Diameter (Decimal Inch): 2.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 5.0000 to 7.0000 | |
| Maximum Drill Depth Range (mm): 150.00 to 200.00 | |
| Tool Material: Steel | |
| Compatible Insert Style: DFT | |
| Compatible Insert Size Code: 0905.. | |
| Drill Depth by Diameter Ratio: 2.5xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 12.5000 | |
| Overall Length (Inch): 12-1/2 | |
| Series: DFT | |
| Flute Length (Decimal Inch): 6.2500 | |
| Body Length (mm): 215.90 | |
| Body Length (Decimal Inch): 8.5000 | |
| Shank Length (Decimal Inch): 4.0000 | |
| Shank Length (mm): 101.60 | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3910×0.2070 | |
| Insert Size (mm): 9.92×5.25 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: DFT0905. | |
| Body Side Coolant Hole Thread Size (Inch): 1/8-27 | |
| Shank End Coolant Hole Thread Size (Inch): 1/4-18 | |
| Insert Lock Screw: M5-0.8×12.5T20 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 01264514 |
| Mfr# | 1528423 |
| Big Book# | 172 |
