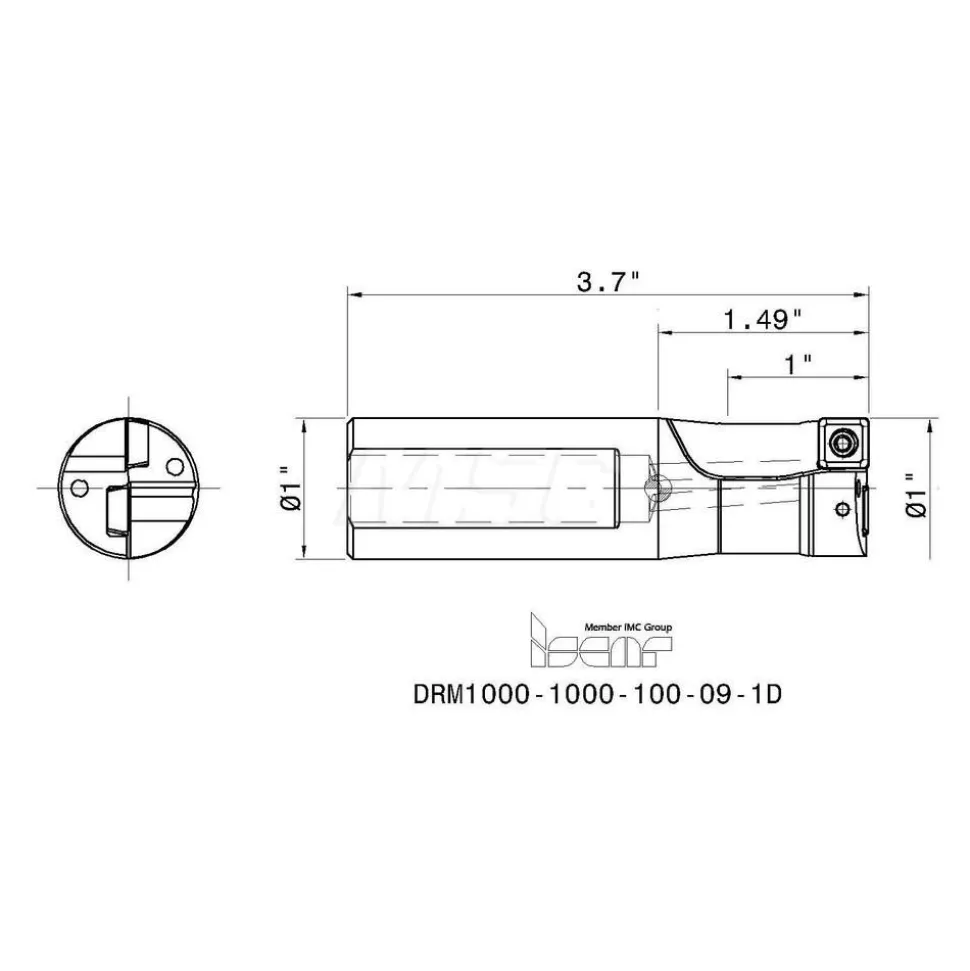

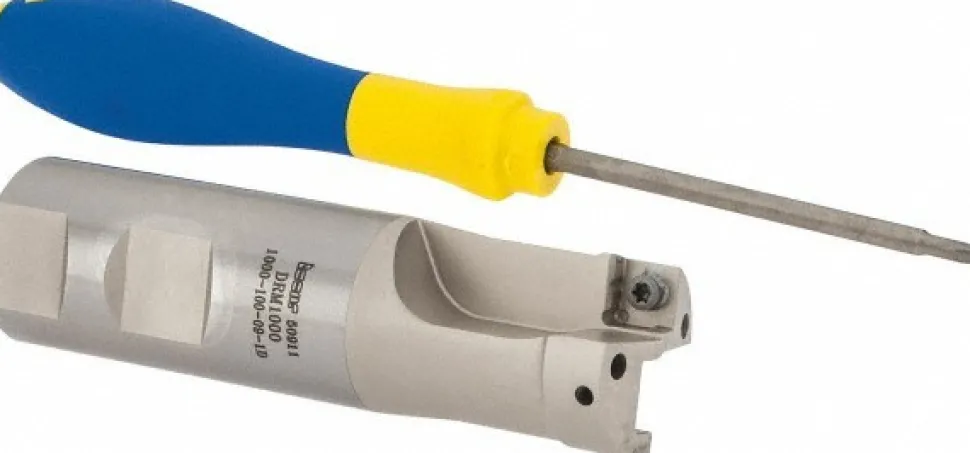

Indexable Insert Drill: DRM1000-1000-100-09-1D, 1″ Max Dia, 1″ Max Depth, 1xD, 1″ Shank Dia
Original price was: 389,00 $.122,89 $Current price is: 122,89 $.
Specifications
| Compatible Drill Style: DRM | Maximum Drill Diameter (Inch): 1 |
| Maximum Drill Diameter (Decimal Inch): 1.0000 | Maximum Drill Depth (Inch): 1 |
| Maximum Drill Depth (Decimal Inch): 1.0000 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1 | Shank Diameter (Decimal Inch): 1.0000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | Tool Material: Steel |
| Compatible Insert Style: SO.. | Compatible Insert Size Code: 09T306 |
| Drill Depth by Diameter Ratio: 1xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 3.7000 | Series: DRM-1D |
| Flute Length (Decimal Inch): 1.0000 | Body Length (Decimal Inch): 1.5000 |
| Shank Length (Decimal Inch): 2.2000 | Modular Connection Size: 1 in |
| Tool Application: Drilling; Plunging; Spot Facing; Milling; Shouldering; Slotting | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.3540 | UNSPSC Code: 23291503 |
| Insert Compatibility: SO..09T306 | Insert Lock Screw: SR 34-506 M3X0.5 |
| Coolant Through: Yes | Country of Origin: Israel |
| Compatible Drill Style: DRM | |
| Maximum Drill Diameter (Inch): 1 | |
| Maximum Drill Diameter (Decimal Inch): 1.0000 | |
| Maximum Drill Depth (Inch): 1 | |
| Maximum Drill Depth (Decimal Inch): 1.0000 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SO.. | |
| Compatible Insert Size Code: 09T306 | |
| Drill Depth by Diameter Ratio: 1xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 3.7000 | |
| Series: DRM-1D | |
| Flute Length (Decimal Inch): 1.0000 | |
| Body Length (Decimal Inch): 1.5000 | |
| Shank Length (Decimal Inch): 2.2000 | |
| Modular Connection Size: 1 in | |
| Tool Application: Drilling; Plunging; Spot Facing; Milling; Shouldering; Slotting | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.3540 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SO..09T306 | |
| Insert Lock Screw: SR 34-506 M3X0.5 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 75066522 |
| Mfr# | 3260042 |
