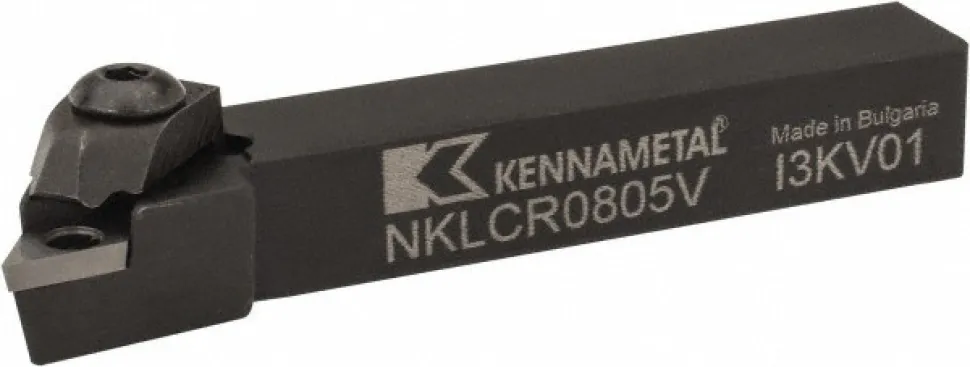

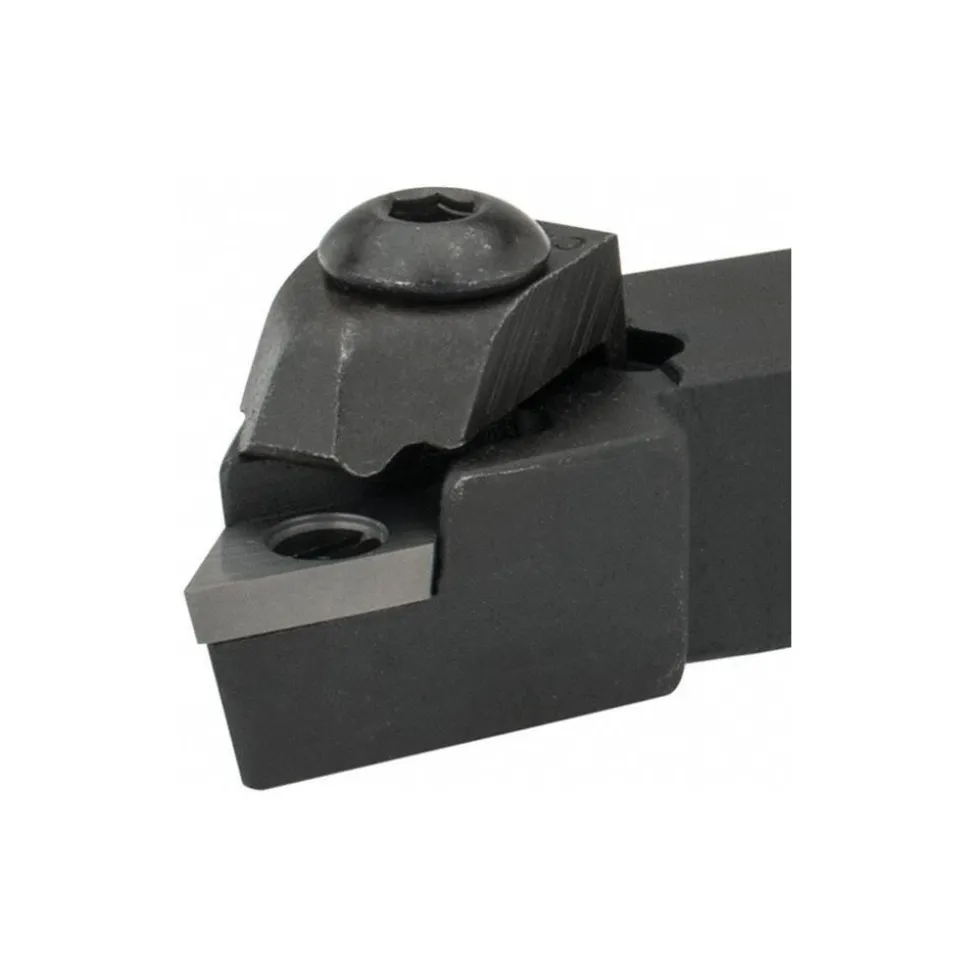

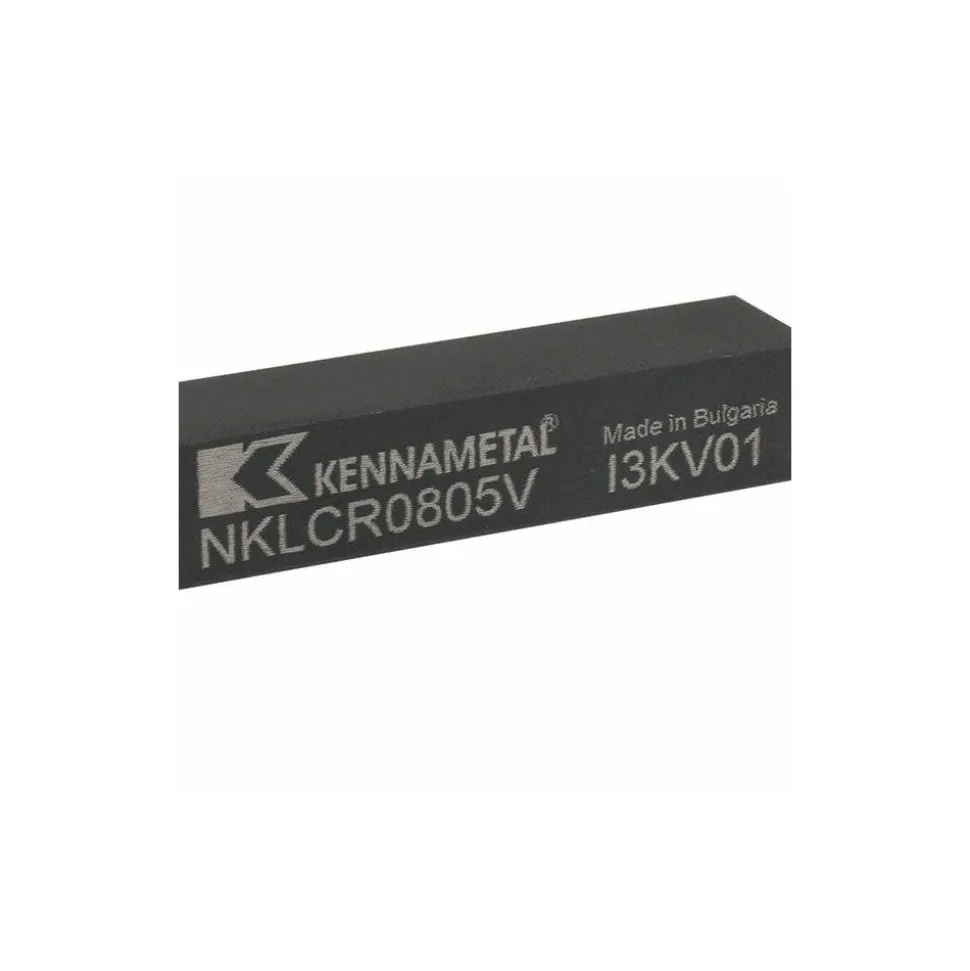

Indexable Profiling Toolholder: External, -5 ° Lead Angle
97,99 $
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Compatible Insert Size Code: NP.. | Toolholder Style: NKLC |
| Rake: Neutral | Insert Holding Method: Clamp |
| Toolholder Material: Steel | Shank Height (mm): 12.70 |
| Shank Height (Decimal Inch): 0.5000 | Shank Width/Diameter (Decimal Inch): 0.5000 |
| Overall Length (mm): 88.90 | Shank Width/Diameter (mm): 12.70 |
| Overall Length (Decimal Inch): 3.5000 | Series: Top Notch |
| Lead Angle: -5.000 | Head Length (Decimal Inch): 0.8800 |
| Head Length (mm): 22.23 | Back of Bar to Cutting Edge (mm): 19.05 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7500 | Insert Inscribed Circle (Inch): 5/8 |
| Insert Inscribed Circle (mm): 15.88 | Insert Inscribed Circle (Decimal Inch): 0.6250 |
| UNSPSC Code: 23153308 | Complete Insert Compatibility: NP.. 51R |
| MSC/Manufacturer Number: NKLCR/L0805V | Coolant Through: No |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Compatible Insert Size Code: NP.. | |
| Toolholder Style: NKLC | |
| Rake: Neutral | |
| Insert Holding Method: Clamp | |
| Toolholder Material: Steel | |
| Shank Height (mm): 12.70 | |
| Shank Height (Decimal Inch): 0.5000 | |
| Shank Width/Diameter (Decimal Inch): 0.5000 | |
| Overall Length (mm): 88.90 | |
| Shank Width/Diameter (mm): 12.70 | |
| Overall Length (Decimal Inch): 3.5000 | |
| Series: Top Notch | |
| Lead Angle: -5.000 | |
| Head Length (Decimal Inch): 0.8800 | |
| Head Length (mm): 22.23 | |
| Back of Bar to Cutting Edge (mm): 19.05 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7500 | |
| Insert Inscribed Circle (Inch): 5/8 | |
| Insert Inscribed Circle (mm): 15.88 | |
| Insert Inscribed Circle (Decimal Inch): 0.6250 | |
| UNSPSC Code: 23153308 | |
| Complete Insert Compatibility: NP.. 51R | |
| MSC/Manufacturer Number: NKLCR/L0805V | |
| Coolant Through: No |
| MSC# | 64922933 |
| Mfr# | 1097515 |
| Big Book# | 920 |
