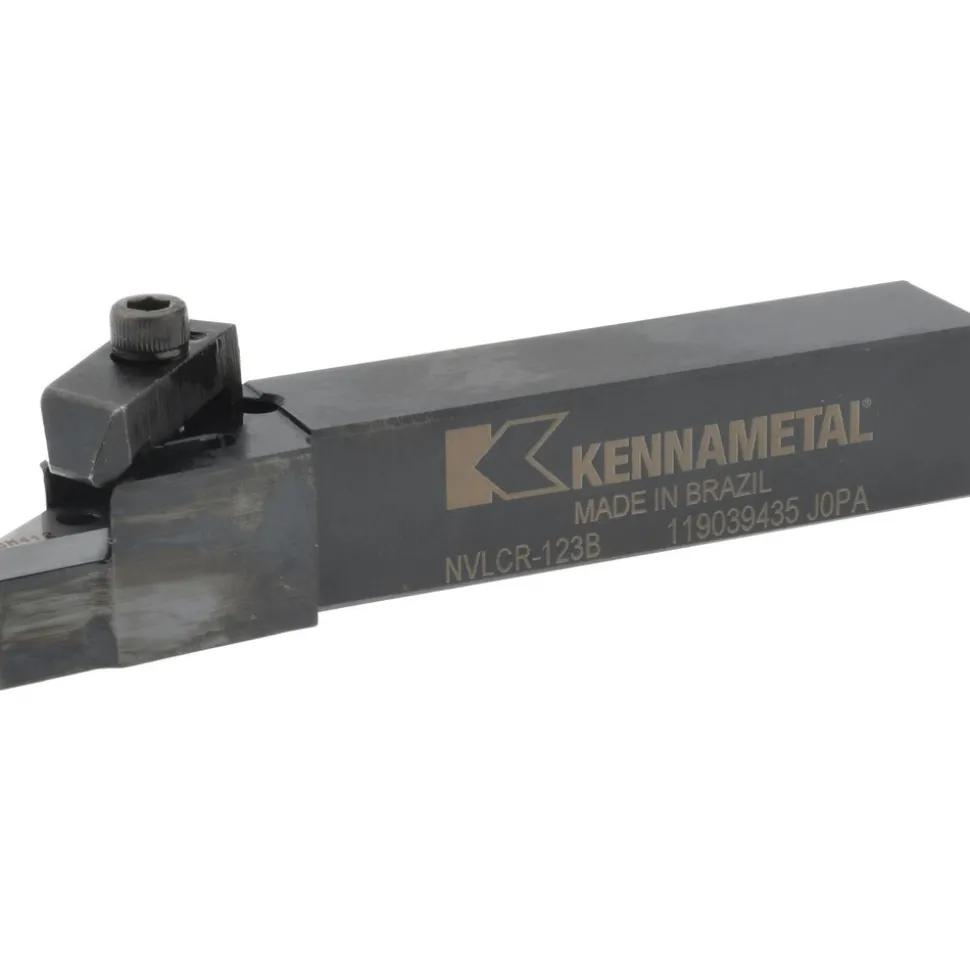

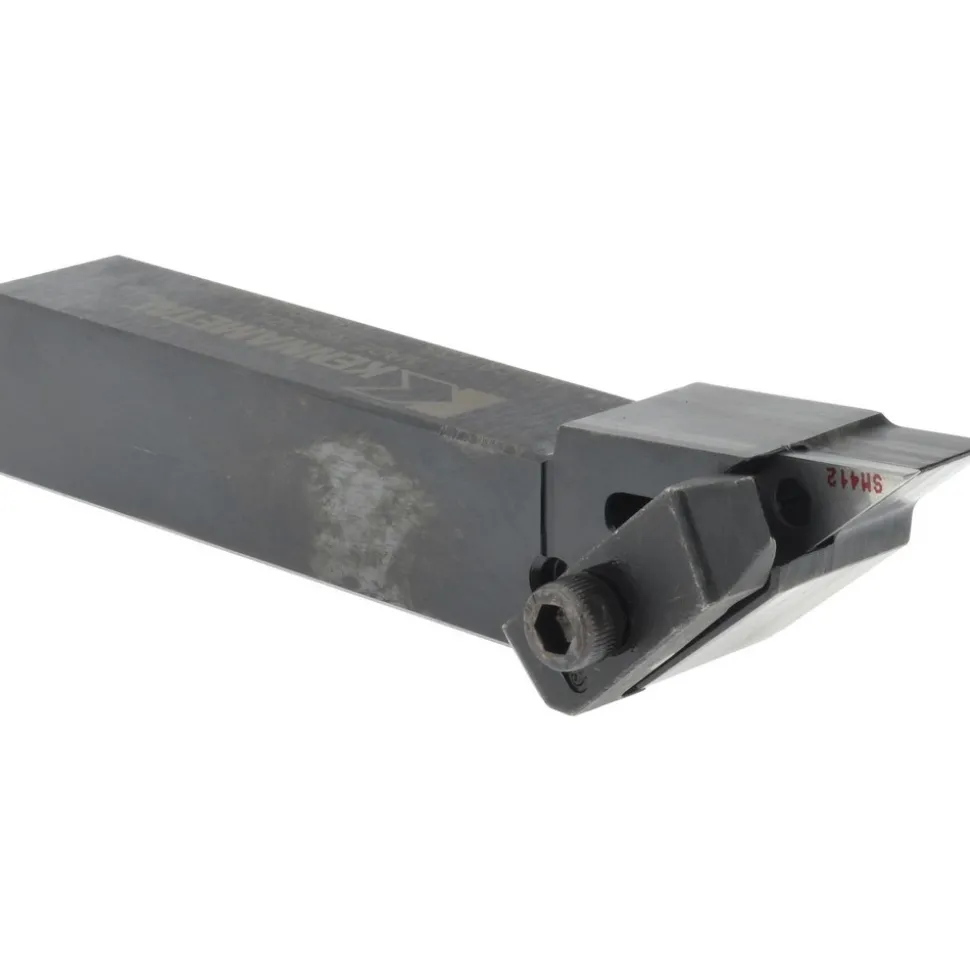

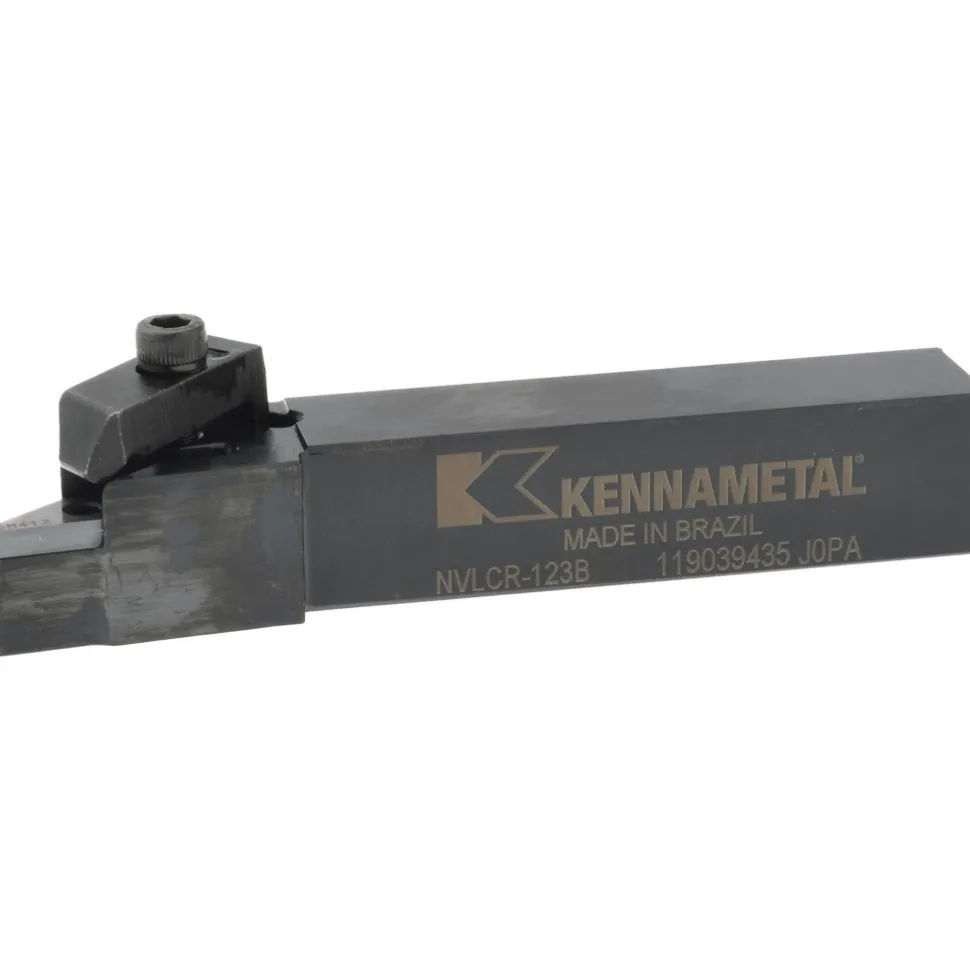

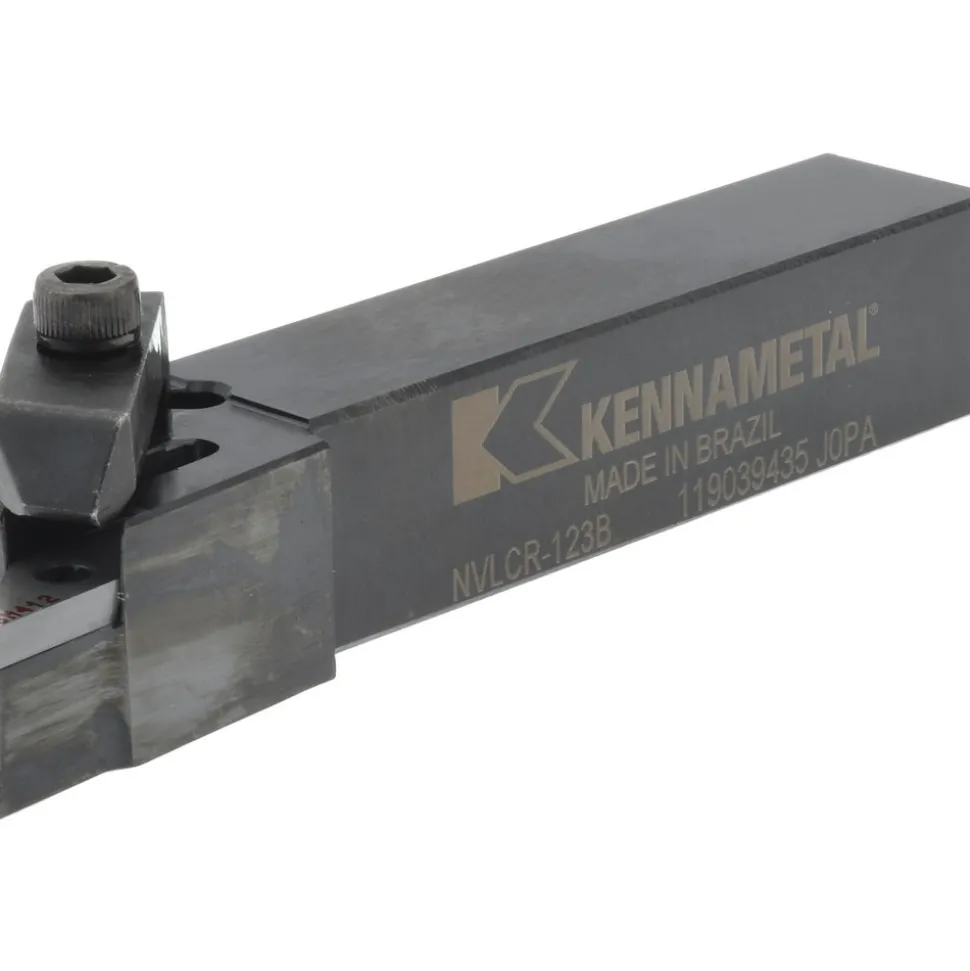

Indexable Profiling Toolholder: External, -5 ° Lead Angle
Original price was: 161,00 $.107,99 $Current price is: 107,99 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Compatible Insert Size Code: VP.. | Toolholder Style: NVLC |
| Rake: Neutral | Insert Holding Method: Clamp |
| Toolholder Material: Steel | Shank Height (mm): 19.05 |
| Shank Height (Decimal Inch): 0.7500 | Shank Width/Diameter (Decimal Inch): 0.7500 |
| Overall Length (mm): 114.30 | Shank Width/Diameter (mm): 19.05 |
| Overall Length (Decimal Inch): 4.5000 | Series: Top Notch |
| Lead Angle: -5.000 | Head Length (Decimal Inch): 1.4400 |
| Head Length (mm): 36.53 | Back of Bar to Cutting Edge (mm): 25.40 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | Insert Inscribed Circle (Inch): 3/8 |
| Insert Inscribed Circle (mm): 9.53 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| UNSPSC Code: 23153308 | Complete Insert Compatibility: VP.. 332 |
| MSC/Manufacturer Number: NVLCR/L123B | Coolant Through: No |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Compatible Insert Size Code: VP.. | |
| Toolholder Style: NVLC | |
| Rake: Neutral | |
| Insert Holding Method: Clamp | |
| Toolholder Material: Steel | |
| Shank Height (mm): 19.05 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Overall Length (mm): 114.30 | |
| Shank Width/Diameter (mm): 19.05 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Series: Top Notch | |
| Lead Angle: -5.000 | |
| Head Length (Decimal Inch): 1.4400 | |
| Head Length (mm): 36.53 | |
| Back of Bar to Cutting Edge (mm): 25.40 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Insert Inscribed Circle (mm): 9.53 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| UNSPSC Code: 23153308 | |
| Complete Insert Compatibility: VP.. 332 | |
| MSC/Manufacturer Number: NVLCR/L123B | |
| Coolant Through: No |
| MSC# | 64922867 |
| Mfr# | 1097118 |
| Big Book# | 918 |
