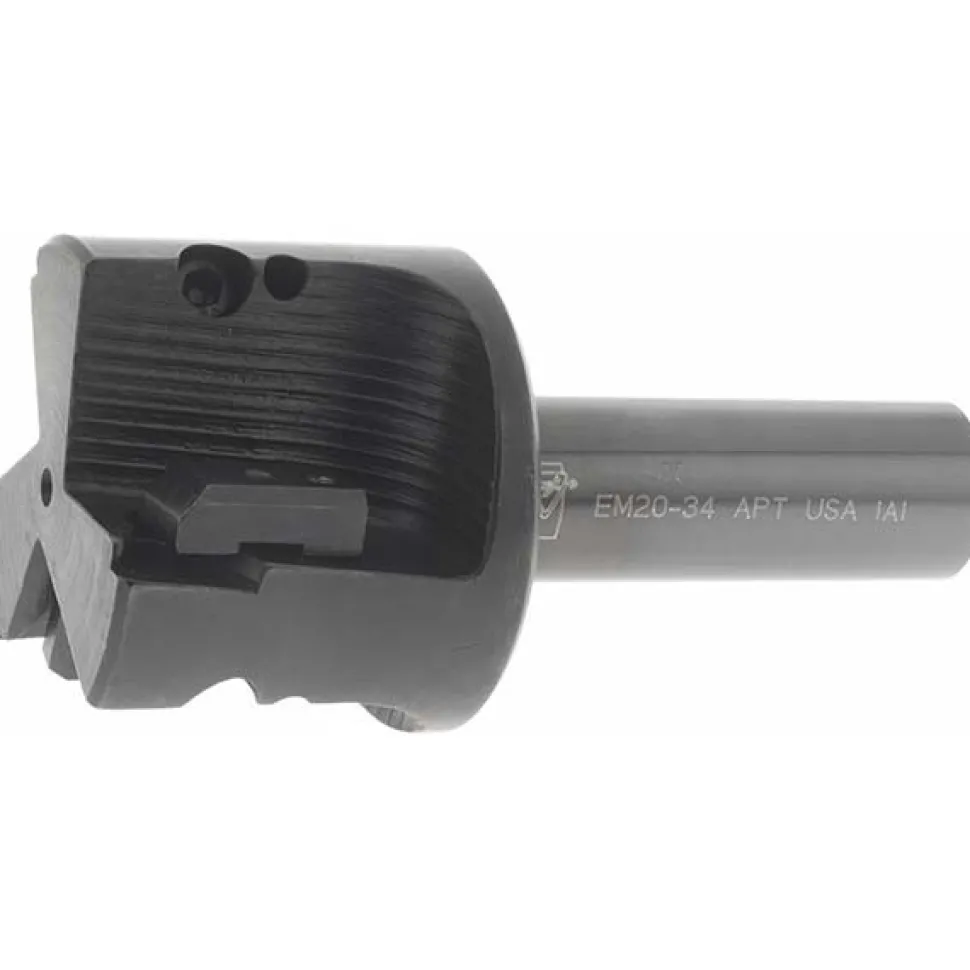

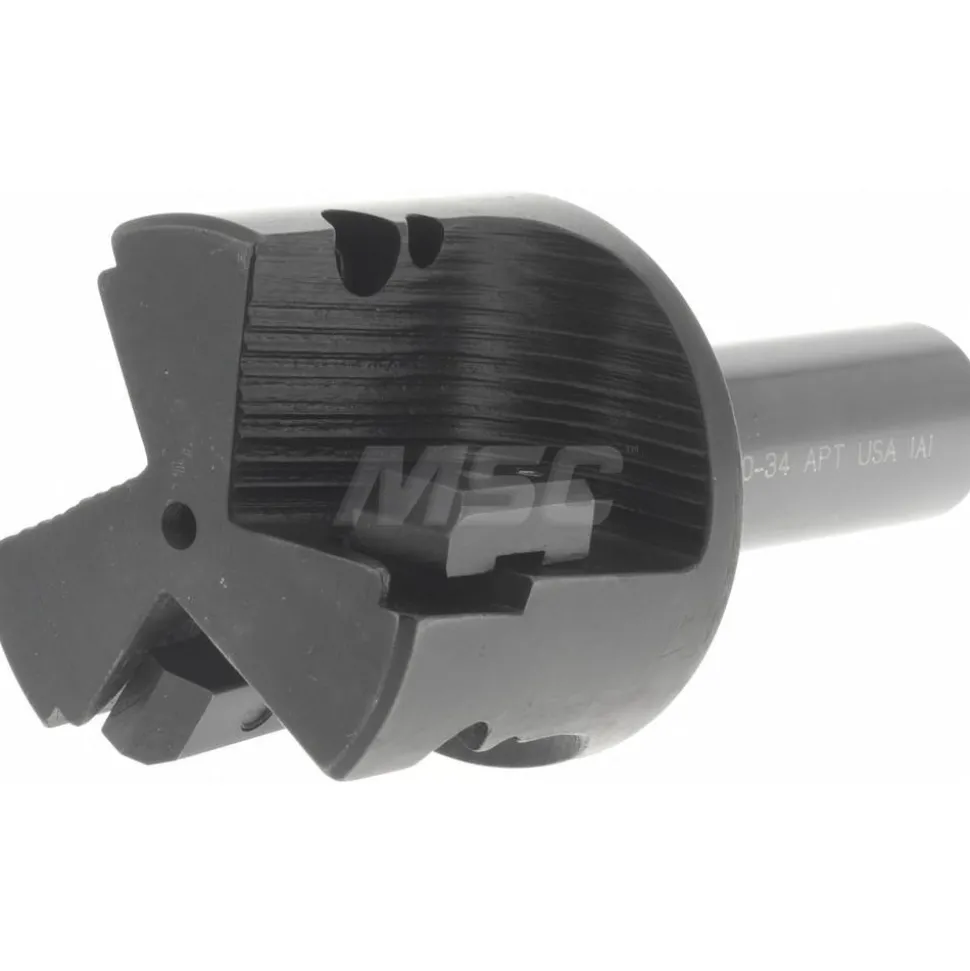

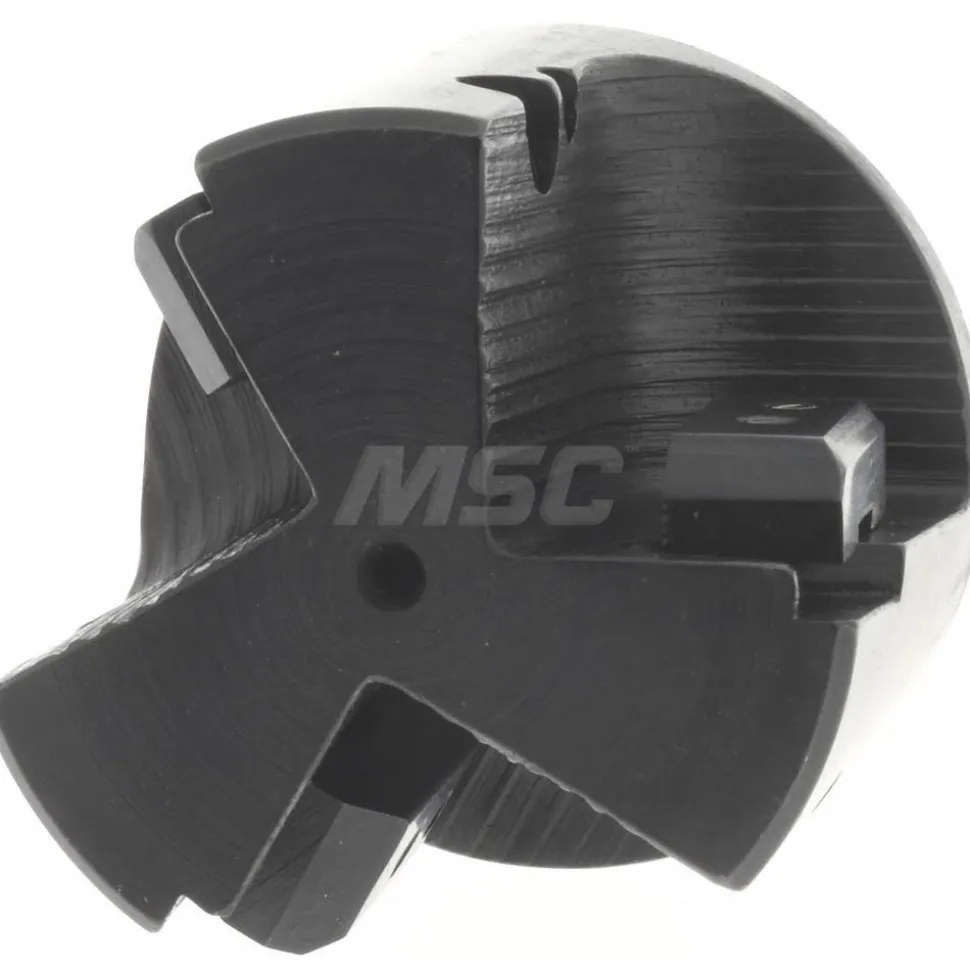

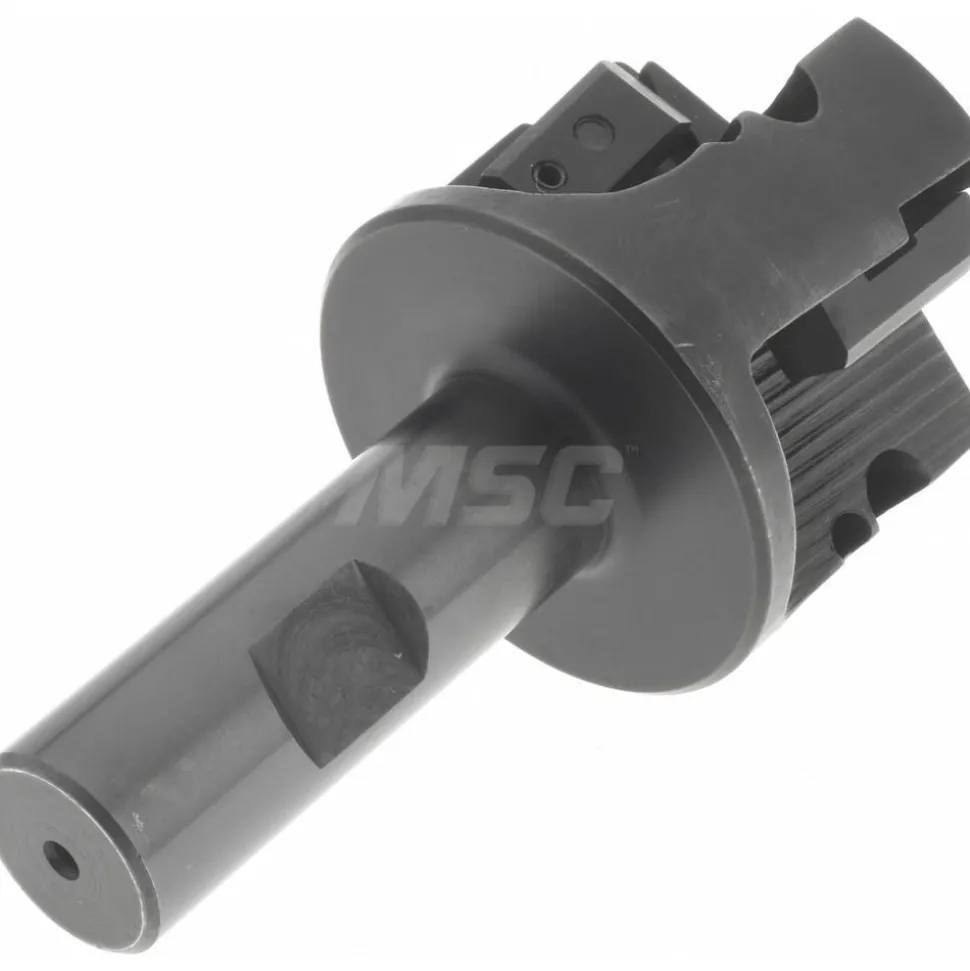

Indexable Square-Shoulder End Mill: EM-20-34 2X3/4, 2″ Cut Dia, 0.65″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank

124,89 $

SKU: SKUgR8FskDP4H Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: APT Brand: APT

Description
Reviews (0)

Specifications

Cutting Diameter (Decimal Inch): 2.0000 in	Cutting Diameter: 2
Overall Length (Inch): 3-7/8	Maximum Depth of Cut (Decimal Inch): 0.6500
Cutter Style: EM	Shank Type: Weldon Flat
Shank Diameter (Inch): 3/4	Series: Tri-Dex
Lead Angle: 90	Head Length (Inch): 1-5/8
Rake: Positive	Insert Compatibility: TPC 32…; TPU 32.; TPG 32.
UNSPSC Code: 27112803	Number Of Flutes: 3
Number Of Cutter Inserts: 3	Coolant Through: No
Country of Origin: UNITED STATES
Cutting Diameter (Decimal Inch): 2.0000 in
Cutting Diameter: 2
Overall Length (Inch): 3-7/8
Maximum Depth of Cut (Decimal Inch): 0.6500
Cutter Style: EM
Shank Type: Weldon Flat
Shank Diameter (Inch): 3/4
Series: Tri-Dex
Lead Angle: 90
Head Length (Inch): 1-5/8
Rake: Positive
Insert Compatibility: TPC 32…; TPU 32.; TPG 32.
UNSPSC Code: 27112803
Number Of Flutes: 3
Number Of Cutter Inserts: 3
Coolant Through: No
Country of Origin: UNITED STATES


MSC#	03121969
Mfr#	EM20-34
Big Book#	731
