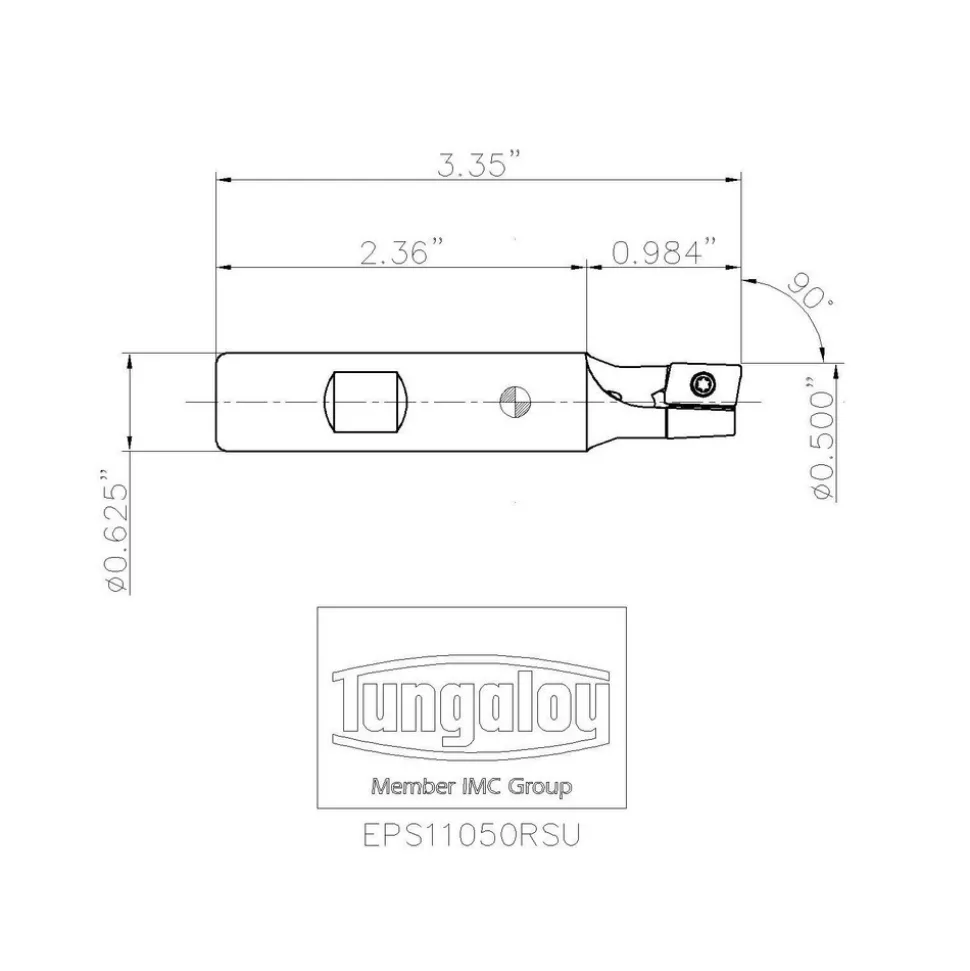

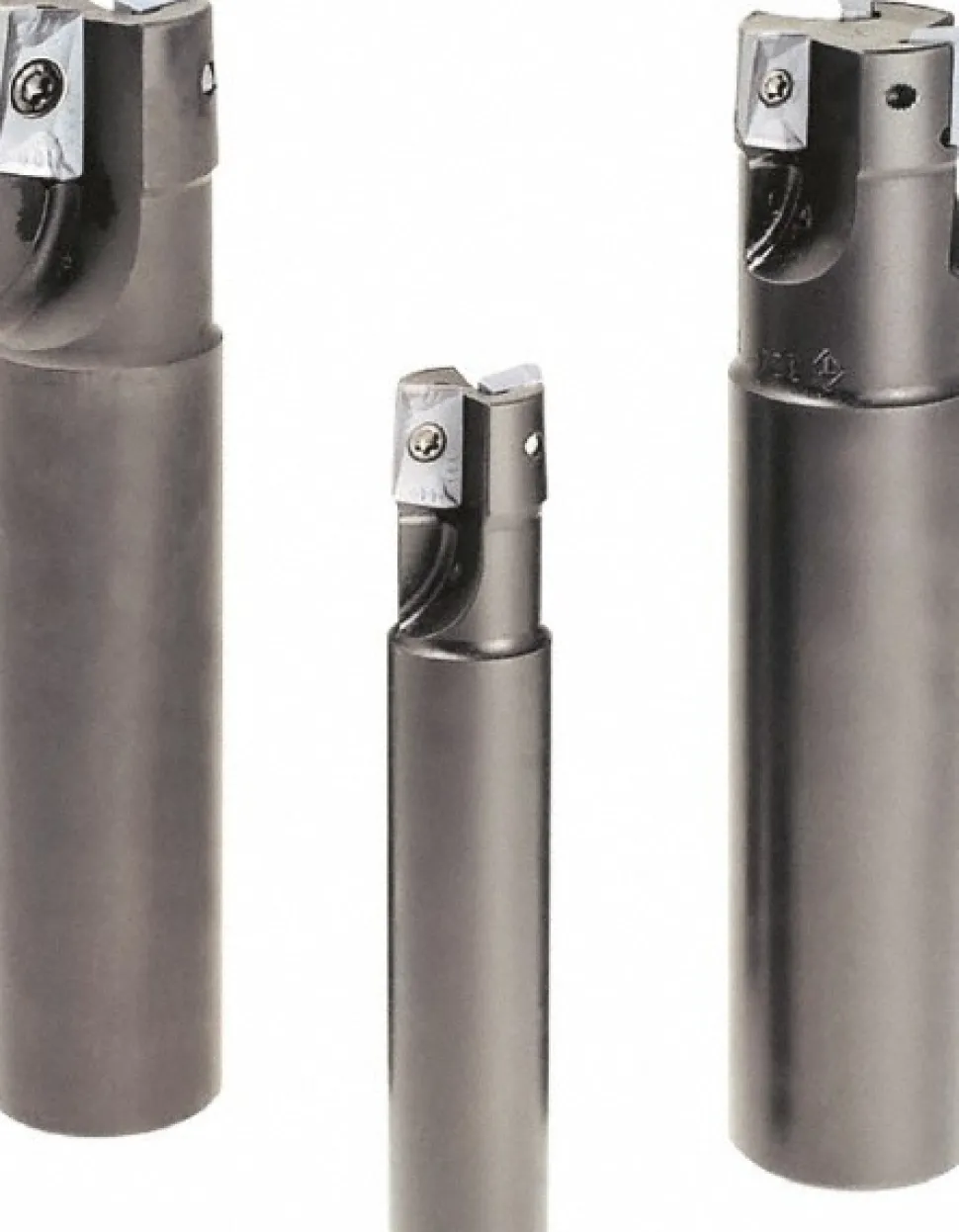

Indexable Square-Shoulder End Mill: EPS11050RSU, 1/2″ Cut Dia, 0.433″ Max Depth of Cut, 5/8″ Dia Weldon Flat Shank
Original price was: 224,00 $.134,99 $Current price is: 134,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.5000 in | Cutting Diameter: 1/2 |
| Overall Length (Decimal Inch): 3.3500 | Maximum Depth of Cut (Decimal Inch): 0.4330 |
| Cutter Style: EPS | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.6250 | Shank Diameter (Inch): 5/8 |
| Insert Holding Method: Screw | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.3600 | Head Length (Decimal Inch): 1.0000 |
| Tool Application: Milling | Standards: ISO |
| Insert Compatibility: ASMT 11T3.. | ISO Number: EPS11050RSU |
| UNSPSC Code: 27112803 | Number Of Flutes: 1 |
| Usable Length (Decimal Inch): 3.3460 | Number Of Cutter Inserts: 1 |
| Coolant Through: No | Country of Origin: Japan |
| Cutting Diameter (Decimal Inch): 0.5000 in | |
| Cutting Diameter: 1/2 | |
| Overall Length (Decimal Inch): 3.3500 | |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | |
| Cutter Style: EPS | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Shank Diameter (Inch): 5/8 | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.3600 | |
| Head Length (Decimal Inch): 1.0000 | |
| Tool Application: Milling | |
| Standards: ISO | |
| Insert Compatibility: ASMT 11T3.. | |
| ISO Number: EPS11050RSU | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 1 | |
| Usable Length (Decimal Inch): 3.3460 | |
| Number Of Cutter Inserts: 1 | |
| Coolant Through: No | |
| Country of Origin: Japan |
| MSC# | 01682285 |
| Mfr# | 6829498 |
| Big Book# | 725 |
