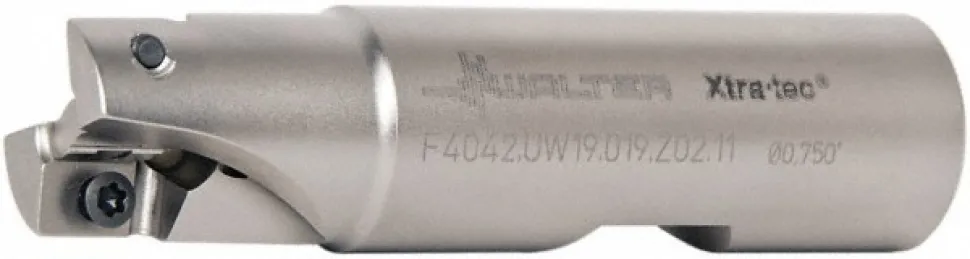

Indexable Square-Shoulder End Mill: F4042.UW19.019.Z02.11, 3/4″ Cut Dia, 11 mm Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
136,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter (mm): 19.00 |
| Cutting Diameter: 3/4 | Overall Length (Decimal Inch): 3.0610 |
| Maximum Depth of Cut (mm): 11.00 | Maximum Depth of Cut (Decimal Inch): 0.4610 |
| Cutter Style: F4042 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Shank Diameter (mm): 19.05 | Insert Holding Method: Screw |
| Lead Angle: 90 | Primary Workpiece Material: Universal |
| Primary Workpiece Material Code: P; S; K; M; N | Secondary Workpiece Material: Hard Material; Glass; Graphite |
| Secondary Workpiece Material Code: H; O | Standards: ISO:ANSI |
| Insert Compatibility: AD.T 1204.. | ISO Number: F4042.UW19.019.Z02.11 |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: F4042.UW19.019.Z02.11 |
| Number Of Flutes: 2 | Number Of Cutter Inserts: 2 |
| Coolant Through: Yes | Country of Origin: VARIOUS |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter (mm): 19.00 | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.0610 | |
| Maximum Depth of Cut (mm): 11.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.4610 | |
| Cutter Style: F4042 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (mm): 19.05 | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Secondary Workpiece Material: Hard Material; Glass; Graphite | |
| Secondary Workpiece Material Code: H; O | |
| Standards: ISO:ANSI | |
| Insert Compatibility: AD.T 1204.. | |
| ISO Number: F4042.UW19.019.Z02.11 | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: F4042.UW19.019.Z02.11 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: VARIOUS |
| MSC# | 43486901 |
| Mfr# | 5205206 |
| Big Book# | 721 |
