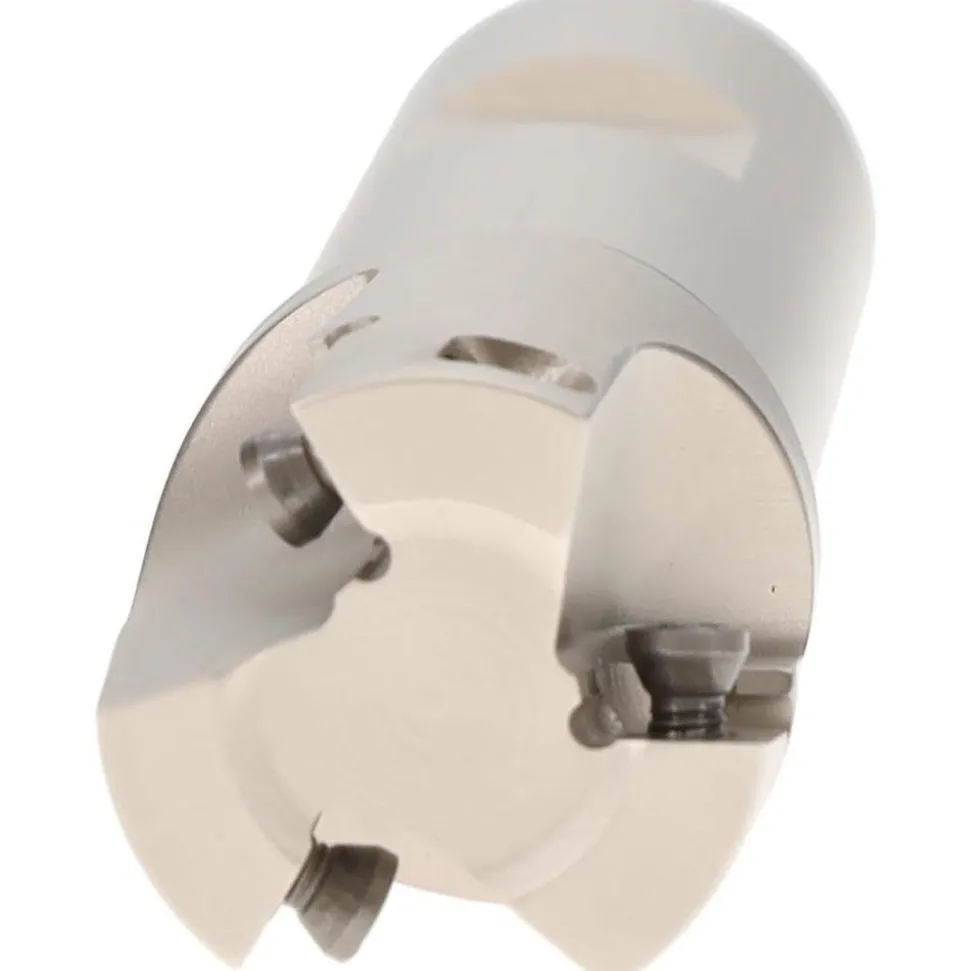

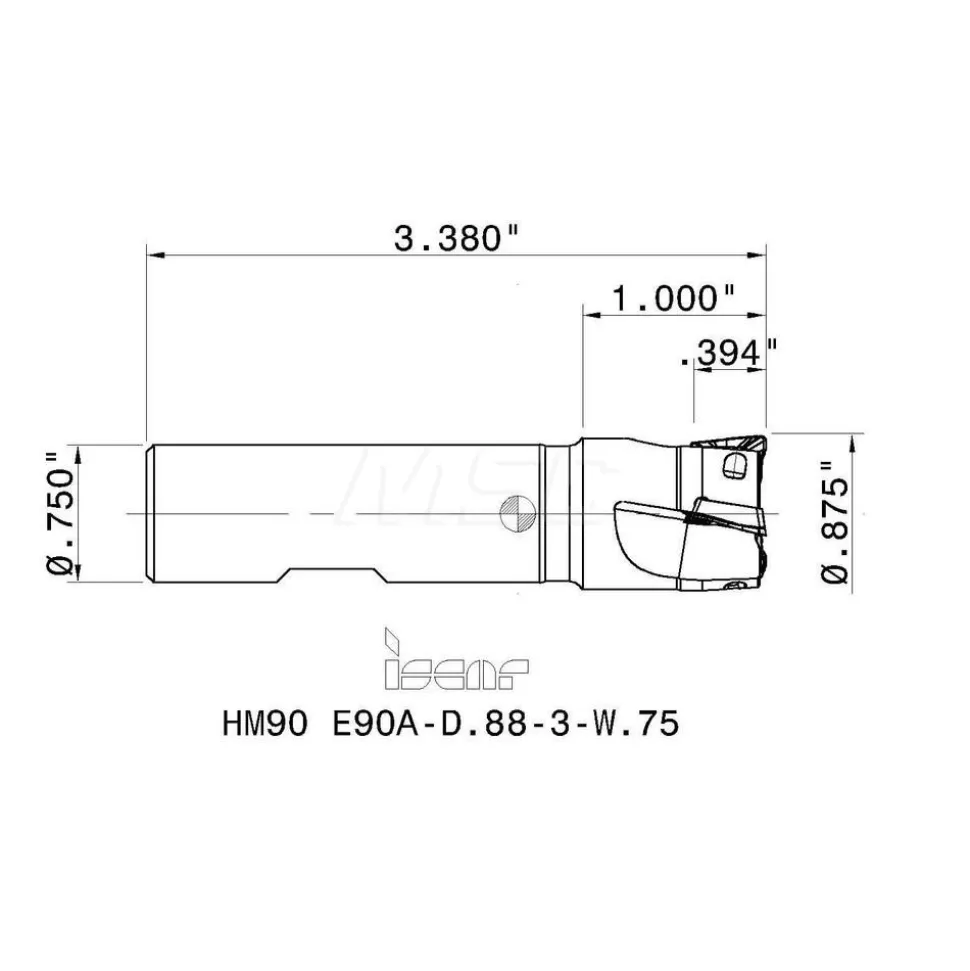

Indexable Square-Shoulder End Mill: HM90 E90A-D.88-3-W.75, 7/8″ Cut Dia, 0.394″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
120,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.8750 in | Cutting Diameter: 7/8 |
| Overall Length (Decimal Inch): 3.3800 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Cutter Style: HM90 E90A-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Maximum Ramping Angle: 7.5 |
| Series: Heli2000 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.3800 | Head Length (Decimal Inch): 1.0000 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Complete Insert Compatibility: APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT | Insert Compatibility: AP..1003..; HM90 AP..1003.. |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Usable Length (Decimal Inch): 0.9600 | Number Of Cutter Inserts: 3 |
| Coolant Through: No | Country of Origin: Germany |
| Cutting Diameter (Decimal Inch): 0.8750 in | |
| Cutting Diameter: 7/8 | |
| Overall Length (Decimal Inch): 3.3800 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: HM90 E90A-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 7.5 | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.3800 | |
| Head Length (Decimal Inch): 1.0000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Complete Insert Compatibility: APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT | |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Usable Length (Decimal Inch): 0.9600 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: No | |
| Country of Origin: Germany |
| MSC# | 60841061 |
| Mfr# | 3101928 |
| Big Book# | 691 |
