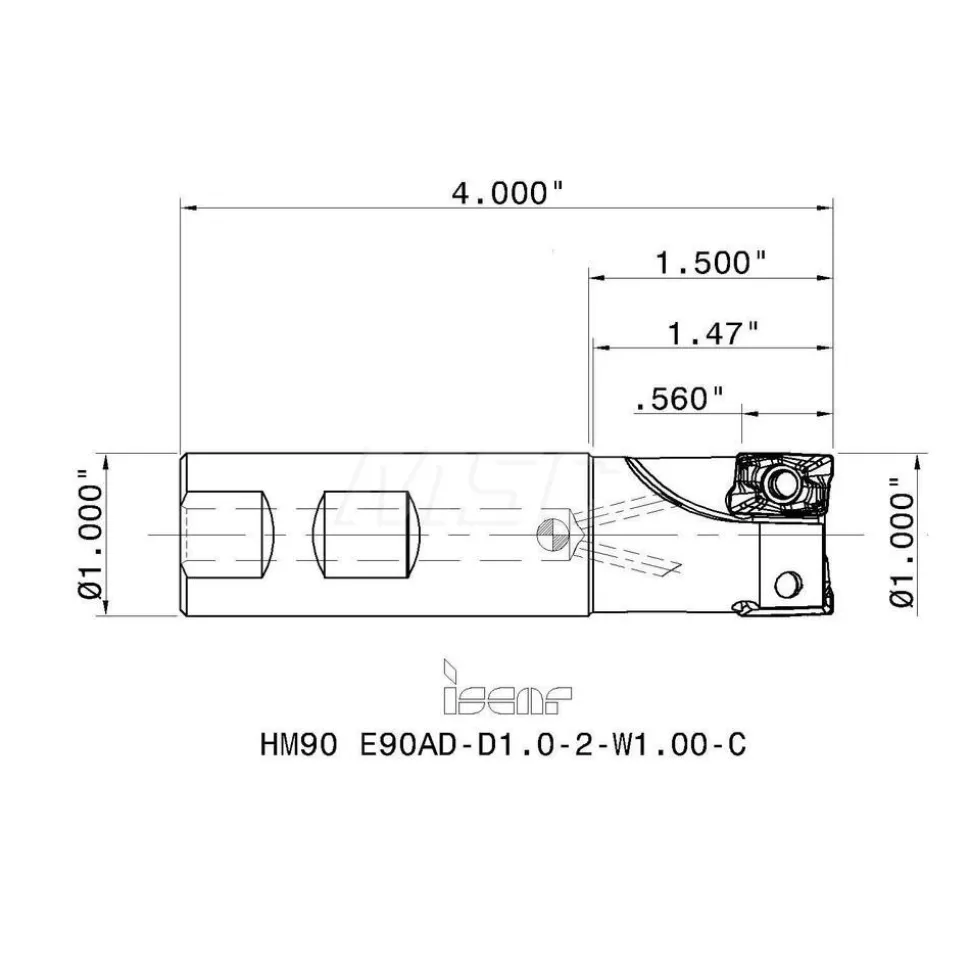

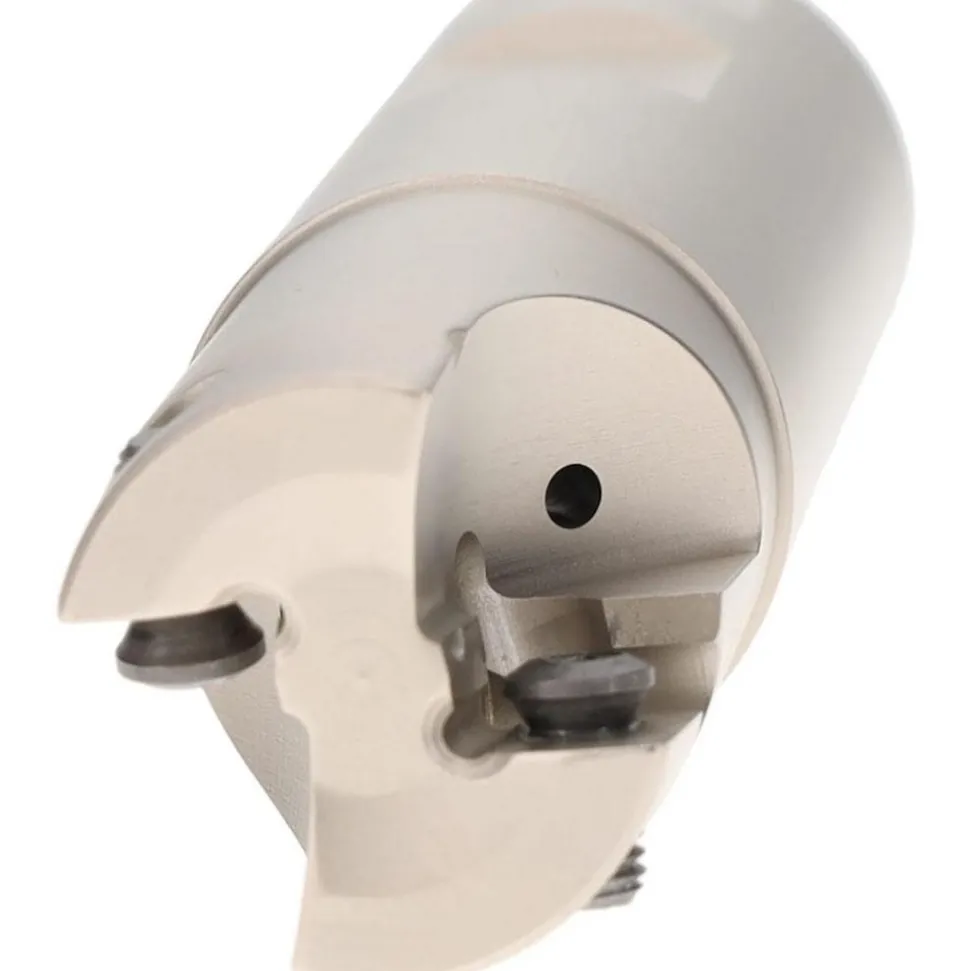

Indexable Square-Shoulder End Mill: HM90 E90AD-D1.0-2-W1.0, 1″ Cut Dia, 0.56″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
130,99 $
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 4.0000 | Overall Length (Inch): 4 |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | Cutter Style: HM90 E90AD-15 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Insert Holding Method: Screw |
| Maximum Ramping Angle: 11.5 | Series: Heli2000 |
| Flute Type: Helical | Lead Angle: 90 |
| Shank Length (Inch): 2-1/2 | Shank Length (Decimal Inch): 2.5000 |
| Head Length (Decimal Inch): 1.5000 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Complete Insert Compatibility: ADKT; HM90ADKW 1505; HM90ADKT; ADKR; ADMT; ADCT; HM90ADCT; ADCR |
| Insert Compatibility: HM90 AD..1505; AD..1505.. | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 E90AD-D1.0-2-W1.0-C | Number Of Flutes: 2 |
| Usable Length (Decimal Inch): 1.4700 | Number Of Cutter Inserts: 2 |
| Coolant Through: Yes | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (Inch): 4 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Cutter Style: HM90 E90AD-15 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 11.5 | |
| Series: Heli2000 | |
| Flute Type: Helical | |
| Lead Angle: 90 | |
| Shank Length (Inch): 2-1/2 | |
| Shank Length (Decimal Inch): 2.5000 | |
| Head Length (Decimal Inch): 1.5000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Complete Insert Compatibility: ADKT; HM90ADKW 1505; HM90ADKT; ADKR; ADMT; ADCT; HM90ADCT; ADCR | |
| Insert Compatibility: HM90 AD..1505; AD..1505.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90AD-D1.0-2-W1.0-C | |
| Number Of Flutes: 2 | |
| Usable Length (Decimal Inch): 1.4700 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 65192874 |
| Mfr# | 3101764 |
| Big Book# | 691 |
