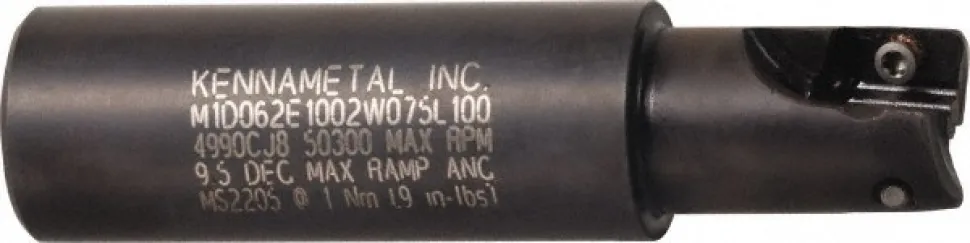

Indexable Square-Shoulder End Mill: M1D062E1002W075L100, 5/8″ Cut Dia, 0.396″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
126,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.6250 in | Cutting Diameter: 5/8 |
| Overall Length (Decimal Inch): 3.0300 | Maximum Depth of Cut (Decimal Inch): 0.3960 |
| Cutter Style: Mill 1-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Head Length (Decimal Inch): 1.0000 | Maximum RPM: 50300 |
| Coolant Hole Diameter (Decimal Inch): 0.1960 | Insert Compatibility: EP10..; EC10.. |
| ISO Number: M1D062E1002W075L100 | UNSPSC Code: 27112803 |
| Number Of Flutes: 2 | Number Of Cutter Inserts: 2 |
| Coolant Through: Yes | |
| Cutting Diameter (Decimal Inch): 0.6250 in | |
| Cutting Diameter: 5/8 | |
| Overall Length (Decimal Inch): 3.0300 | |
| Maximum Depth of Cut (Decimal Inch): 0.3960 | |
| Cutter Style: Mill 1-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Head Length (Decimal Inch): 1.0000 | |
| Maximum RPM: 50300 | |
| Coolant Hole Diameter (Decimal Inch): 0.1960 | |
| Insert Compatibility: EP10..; EC10.. | |
| ISO Number: M1D062E1002W075L100 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: Yes |
| MSC# | 57561805 |
| Mfr# | 3742552 |
| Big Book# | 709 |
