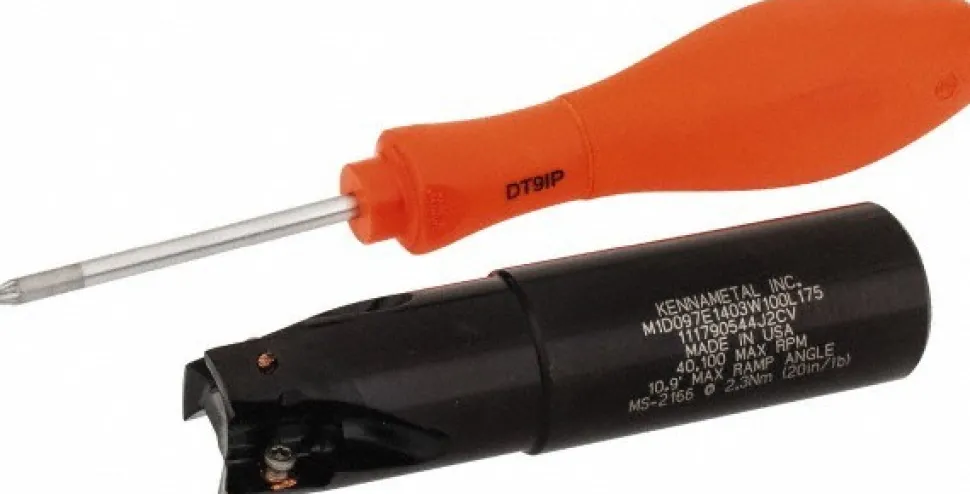

Indexable Square-Shoulder End Mill: M1D097E1403W100L175, 0.9701″ Cut Dia, 14.73 mm Max Depth of Cut, 1″ Dia Weldon Flat Shank
132,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.9701 in | Overall Length (Decimal Inch): 4.0300 |
| Overall Length (mm): 102.36 | Maximum Depth of Cut (mm): 14.73 |
| Maximum Depth of Cut (Decimal Inch): 0.5800 | Cutter Style: Mill 1 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Shank Diameter (mm): 25.40 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Shank Length (Decimal Inch): 2.2799 | Shank Length (mm): 57.91 |
| Head Length (Decimal Inch): 1.7500 | Head Length (mm): 44.45 |
| Maximum RPM: 40100 | Coolant Hole Diameter (mm): 6.35 |
| Coolant Hole Diameter (Inch): 1/4 | Coolant Hole Diameter (Decimal Inch): 0.2500 |
| Insert Compatibility: EP14..; EC14.. | ISO Number: M1D097E1403W100L175 |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Number Of Cutter Inserts: 3 | Coolant Through: Yes |
| Country of Origin: Brazil | |
| Cutting Diameter (Decimal Inch): 0.9701 in | |
| Overall Length (Decimal Inch): 4.0300 | |
| Overall Length (mm): 102.36 | |
| Maximum Depth of Cut (mm): 14.73 | |
| Maximum Depth of Cut (Decimal Inch): 0.5800 | |
| Cutter Style: Mill 1 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (mm): 25.40 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 2.2799 | |
| Shank Length (mm): 57.91 | |
| Head Length (Decimal Inch): 1.7500 | |
| Head Length (mm): 44.45 | |
| Maximum RPM: 40100 | |
| Coolant Hole Diameter (mm): 6.35 | |
| Coolant Hole Diameter (Inch): 1/4 | |
| Coolant Hole Diameter (Decimal Inch): 0.2500 | |
| Insert Compatibility: EP14..; EC14.. | |
| ISO Number: M1D097E1403W100L175 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Brazil |
| MSC# | 01032192 |
| Mfr# | 2624189 |
| Big Book# | 710 |
