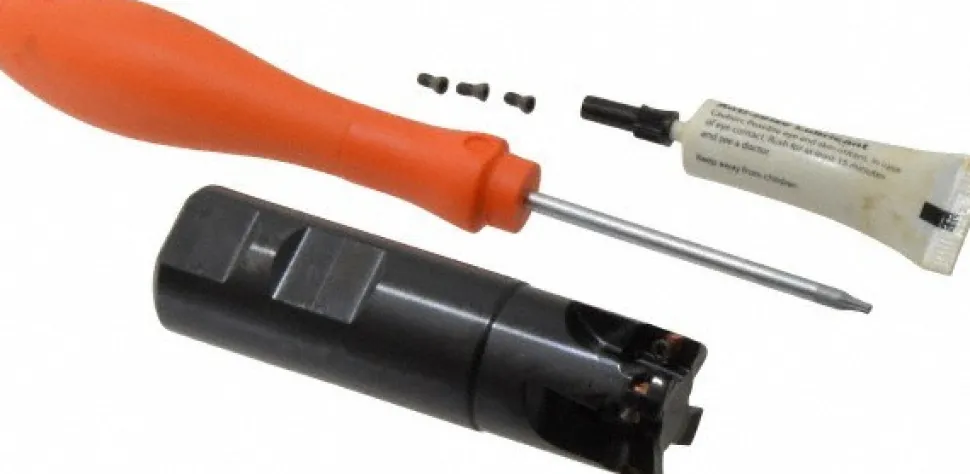

Indexable Square-Shoulder End Mill: M1D100E1004W100L125, 1″ Cut Dia, 0.395″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
Original price was: 554,00 $.128,89 $Current price is: 128,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 3.5300 | Maximum Depth of Cut (Decimal Inch): 0.3950 |
| Cutter Style: Mill 1-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.0000 | Shank Diameter (Inch): 1 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Head Length (Decimal Inch): 1.2500 | Maximum RPM: 39700 |
| Coolant Hole Diameter (Decimal Inch): 0.2360 | Insert Compatibility: EP10..; EC10.. |
| ISO Number: M1D100E1004W100L125 | UNSPSC Code: 27112803 |
| Number Of Flutes: 4 | Number Of Cutter Inserts: 4 |
| Coolant Through: Yes | Country of Origin: Bulgaria |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 3.5300 | |
| Maximum Depth of Cut (Decimal Inch): 0.3950 | |
| Cutter Style: Mill 1-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Head Length (Decimal Inch): 1.2500 | |
| Maximum RPM: 39700 | |
| Coolant Hole Diameter (Decimal Inch): 0.2360 | |
| Insert Compatibility: EP10..; EC10.. | |
| ISO Number: M1D100E1004W100L125 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 4 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: Yes | |
| Country of Origin: Bulgaria |
| MSC# | 74022963 |
| Mfr# | 3742556 |
| Big Book# | 709 |
