Sale!

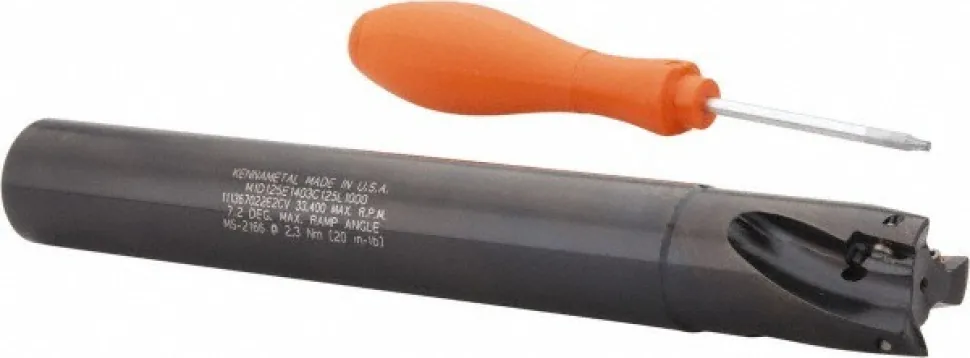

Indexable Square-Shoulder End Mill: M1D125E1403C125L1000, 1-1/4″ Cut Dia, 14.48 mm Max Depth of Cut, 1-1/4″ Dia Cylindrical Shank
Original price was: 548,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.2500 in | Cutting Diameter: 1-1/4 |
| Overall Length (Decimal Inch): 10.0000 | Overall Length (mm): 254.00 |
| Overall Length (Inch): 10 | Maximum Depth of Cut (mm): 14.48 |
| Maximum Depth of Cut (Decimal Inch): 0.5700 | Cutter Style: Mill 1 |
| Shank Type: Cylindrical | Shank Diameter (Decimal Inch): 1.2500 |
| Shank Diameter (Inch): 1-1/4 | Shank Diameter (mm): 31.75 |
| Insert Holding Method: Screw | Lead Angle: 0 |
| Shank Length (Decimal Inch): 7.7500 | Shank Length (mm): 196.85 |
| Head Length (Decimal Inch): 2.2500 | Head Length (mm): 57.15 |
| Maximum RPM: 33400 | Coolant Hole Diameter (mm): 6.35 |
| Coolant Hole Diameter (Inch): 1/4 | Coolant Hole Diameter (Decimal Inch): 0.2500 |
| Insert Compatibility: EP14..; EC14.. | ISO Number: M1D125E1403C125L1000 |
| UNSPSC Code: 27112803 | Number Of Flutes: 3 |
| Number Of Cutter Inserts: 3 | Coolant Through: Yes |
| Cutting Diameter (Decimal Inch): 1.2500 in | |
| Cutting Diameter: 1-1/4 | |
| Overall Length (Decimal Inch): 10.0000 | |
| Overall Length (mm): 254.00 | |
| Overall Length (Inch): 10 | |
| Maximum Depth of Cut (mm): 14.48 | |
| Maximum Depth of Cut (Decimal Inch): 0.5700 | |
| Cutter Style: Mill 1 | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (mm): 31.75 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 7.7500 | |
| Shank Length (mm): 196.85 | |
| Head Length (Decimal Inch): 2.2500 | |
| Head Length (mm): 57.15 | |
| Maximum RPM: 33400 | |
| Coolant Hole Diameter (mm): 6.35 | |
| Coolant Hole Diameter (Inch): 1/4 | |
| Coolant Hole Diameter (Decimal Inch): 0.2500 | |
| Insert Compatibility: EP14..; EC14.. | |
| ISO Number: M1D125E1403C125L1000 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes |
| MSC# | 01032267 |
| Mfr# | 2624200 |
| Big Book# | 711 |
