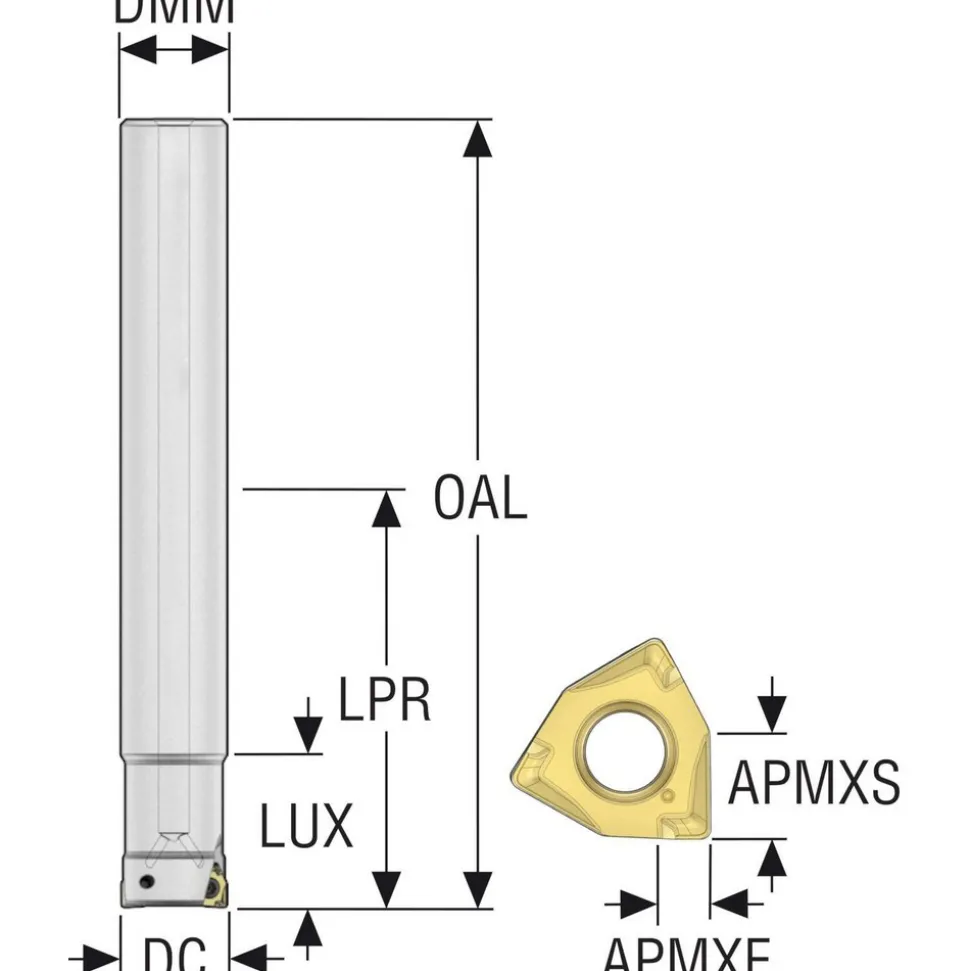

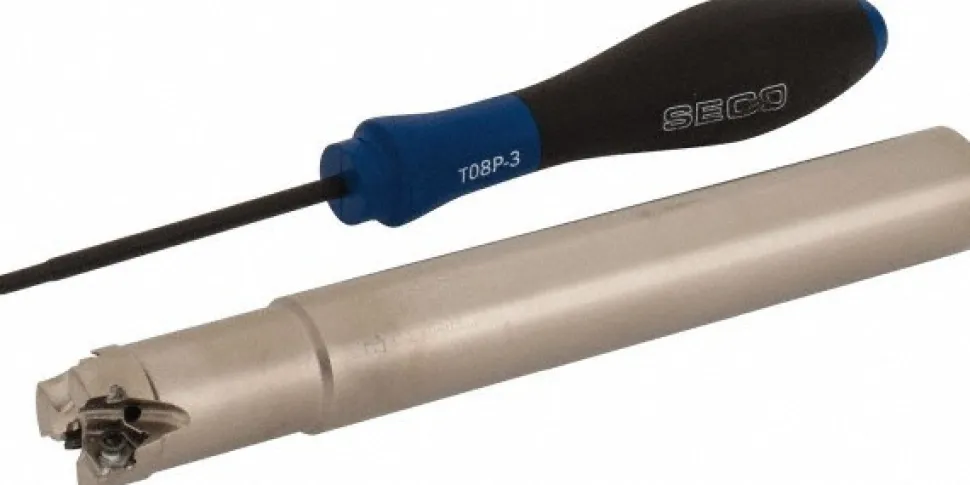

Indexable Square-Shoulder End Mill: R217.96-00.750-0-04-3A, 3/4″ Cut Dia, 0.157″ Max Depth of Cut, 3/4″ Dia Cylindrical Shank
130,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 5.9100 | Maximum Depth of Cut (Decimal Inch): 0.1570 |
| Cutter Style: R217.96-04 | Shank Type: Cylindrical |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Tool Material: Steel |
| Series: Square 6 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 4.5200 | Head Length (Decimal Inch): 1.3800 |
| Maximum RPM: 29400 | Tool Application: Milling |
| Rake: Negative | Complete Insert Compatibility: XNEX |
| Insert Compatibility: XNEX 04.. | ISO Number: R217.96-00.750-0-04-3A |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: R217.96-00.750-0-04-3A |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: India |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 5.9100 | |
| Maximum Depth of Cut (Decimal Inch): 0.1570 | |
| Cutter Style: R217.96-04 | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Tool Material: Steel | |
| Series: Square 6 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 4.5200 | |
| Head Length (Decimal Inch): 1.3800 | |
| Maximum RPM: 29400 | |
| Tool Application: Milling | |
| Rake: Negative | |
| Complete Insert Compatibility: XNEX | |
| Insert Compatibility: XNEX 04.. | |
| ISO Number: R217.96-00.750-0-04-3A | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: R217.96-00.750-0-04-3A | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 44849115 |
| Mfr# | 02770505 |
| Big Book# | 671 |
