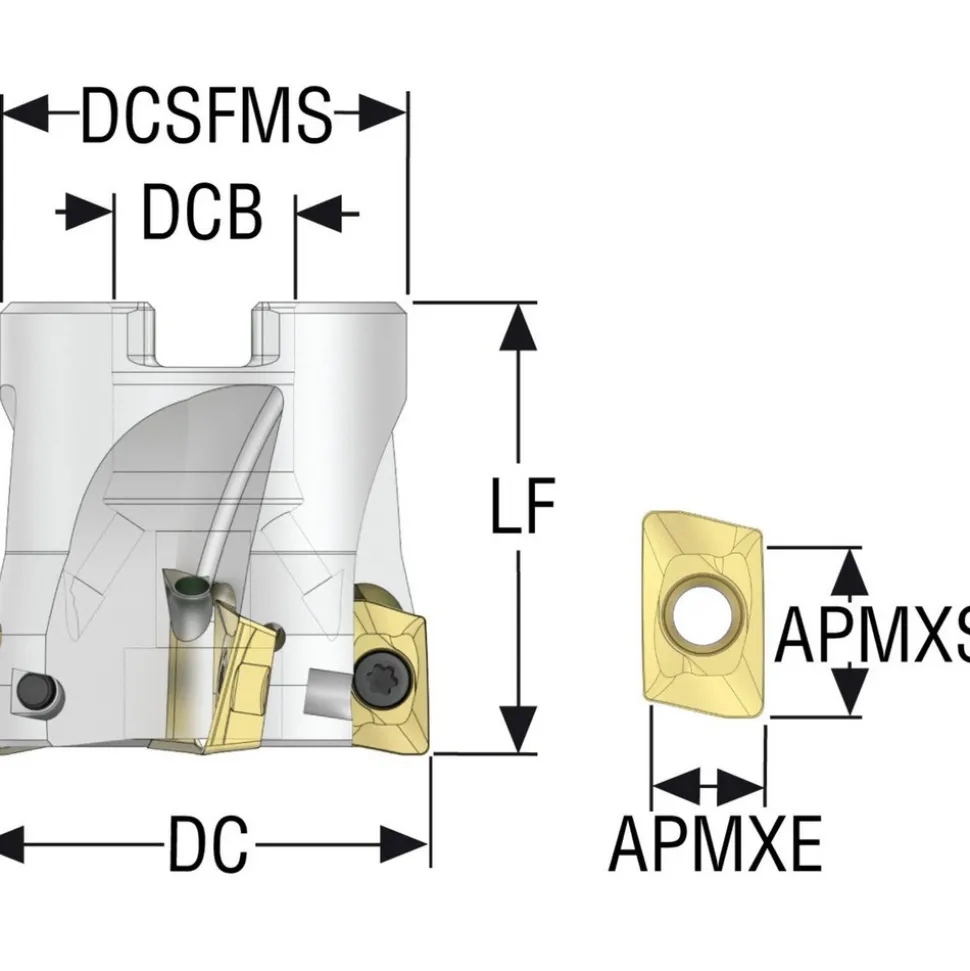

Indexable Square-Shoulder Face Mill: R220.69-01.50-12-5AN, 1-1/2” Cut Dia, 0.4330″ Max Cutting Depth
126,99 $
Specifications
| Maximum Cutting Diameter (Inch): 1-1/2 | Maximum Depth of Cut (Decimal Inch): 0.4330 |
| Arbor Hole Diameter (Inch): 3/4 | Compatible Insert Size Code: XO X1204 |
| Cutter Style: R220.69 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 90 |
| Rake: Positive (Axial); Negative (Radial) | Series: Super Turbo |
| Maximum Ramping Angle: 2.50 | Overall Height (Decimal Inch): 1.5700 |
| Keyway Width (mm): 8.20 | Hub Diameter (mm): 35.00 |
| Tool Application: Ramping | UNSPSC Code: 27112803 |
| Coolant Through: Yes | Number Of Cutter Inserts: 5 |
| Number Of Flutes: 5 | Country of Origin: India |
| Maximum Cutting Diameter (Inch): 1-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.4330 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Compatible Insert Size Code: XO X1204 | |
| Cutter Style: R220.69 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 90 | |
| Rake: Positive (Axial); Negative (Radial) | |
| Series: Super Turbo | |
| Maximum Ramping Angle: 2.50 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (mm): 8.20 | |
| Hub Diameter (mm): 35.00 | |
| Tool Application: Ramping | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: India |
| MSC# | 83251363 |
| Mfr# | 02689809 |
