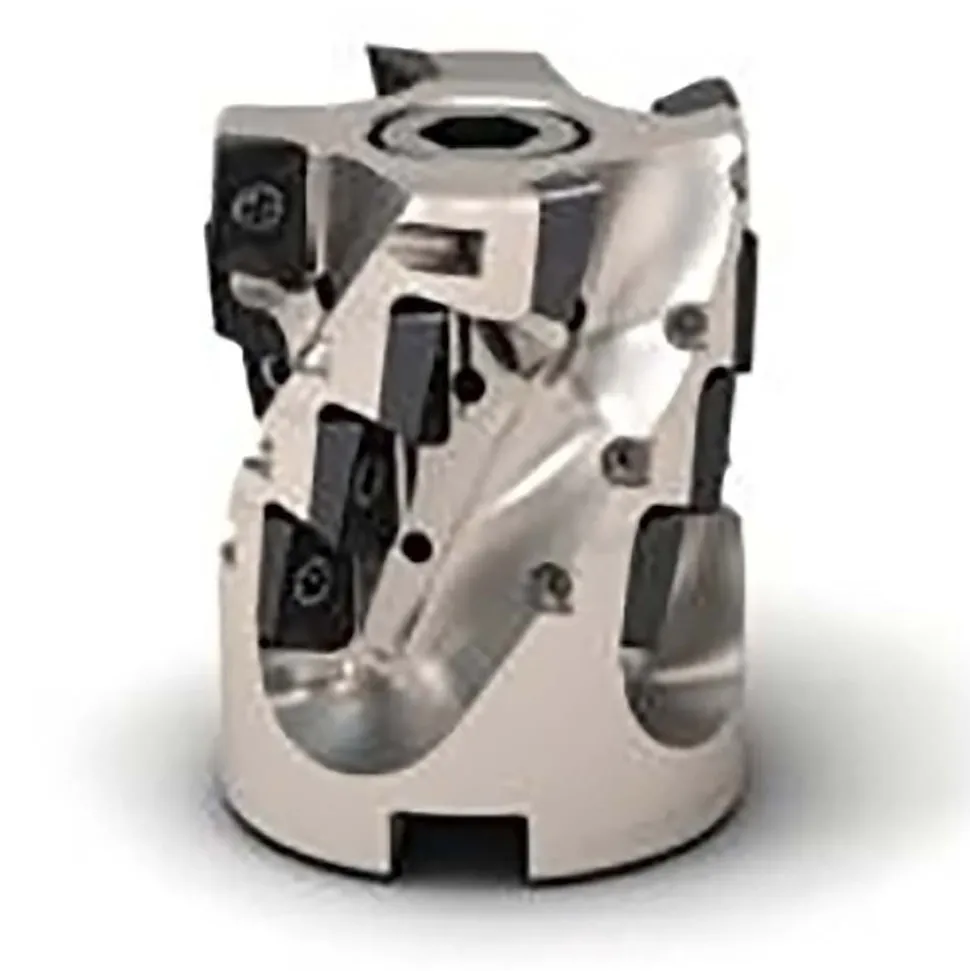

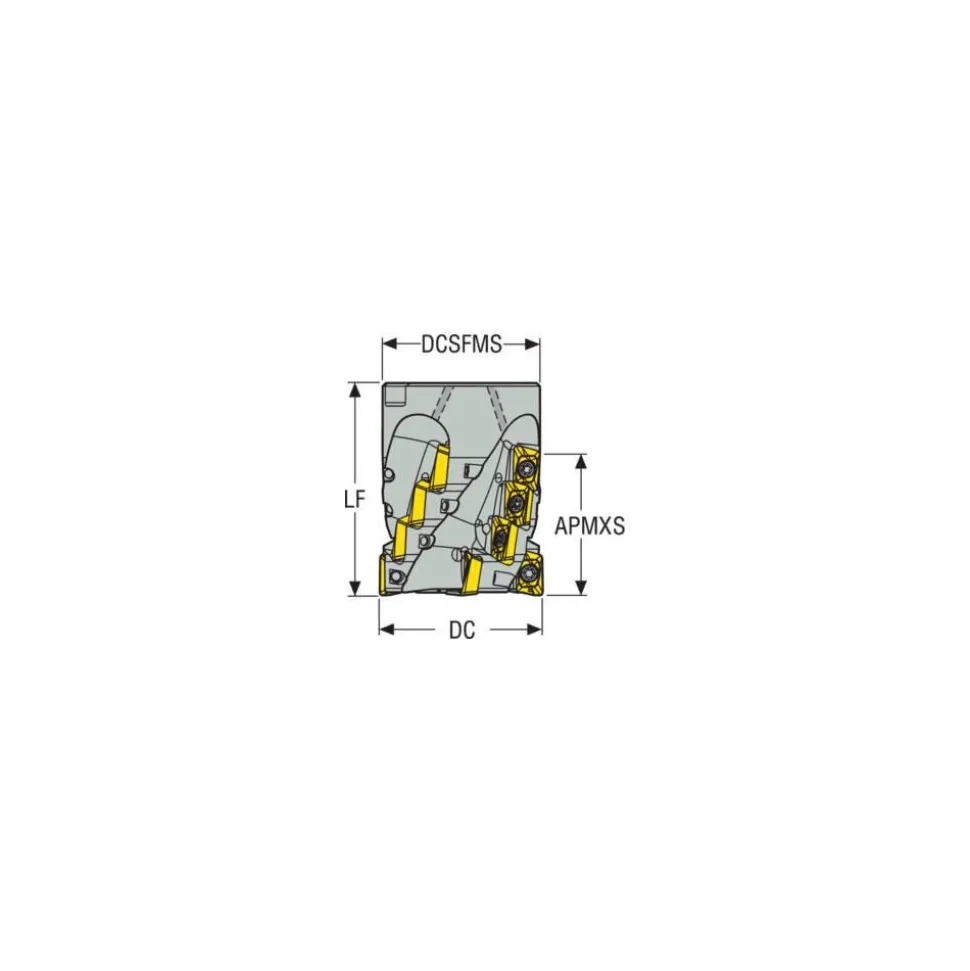

Indexable Square-Shoulder Face Mill: R220.69-03.00-18M5AN, 3” Cut Dia, 1.2500″ Arbor Hole Dia, 2.4800″ Max Cutting Depth
Original price was: 2 516,00 $.122,99 $Current price is: 122,99 $.
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (Decimal Inch): 2.4800 | Arbor Hole Diameter (Inch): 1-1/4 |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | Compatible Insert Size Code: XO 1806 |
| Cutter Style: R220.69 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0 |
| Rake: Negative | Rake Angle: -4.00 |
| Series: Power Turbo | Maximum Ramping Angle: 1.60 |
| Overall Height (Decimal Inch): 3.5000 | Keyway Width (Decimal Inch): 0.5100 |
| Hub Diameter (mm): 73.40 | Pitch Type: Fine |
| Tool Application: Helical Interpolation; Ramping; Slotting | Cutting Edge Length (Decimal Inch): 2.4800 |
| Counterbore Diameter (Decimal Inch): 0.5100 | Complete Insert Compatibility: XOEX 180604FR-E10; XOEX 180608FR-E10; XOMX 180608TR-D16; XOEX 180663FR-E10; XOMX 180608TR-M14; XOMX 180608R-M10; XOMX 180604TR-ME13; XOEX 180616FR-E10; XOEX 180624FR-E10; XOEX 180640FR-E10; XOMX 180604R-M10; XOEX 180650FR-E10; XOEX 180631FR-E10; XOEX 180620FR-E10 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Manufacturers Catalog Number: R220.69-03.00-18M5AN | Coolant Through: Yes |
| Number Of Cutter Inserts: 20 | Number Of Flutes: 5 |
| Country of Origin: France | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 2.4800 | |
| Arbor Hole Diameter (Inch): 1-1/4 | |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | |
| Compatible Insert Size Code: XO 1806 | |
| Cutter Style: R220.69 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0 | |
| Rake: Negative | |
| Rake Angle: -4.00 | |
| Series: Power Turbo | |
| Maximum Ramping Angle: 1.60 | |
| Overall Height (Decimal Inch): 3.5000 | |
| Keyway Width (Decimal Inch): 0.5100 | |
| Hub Diameter (mm): 73.40 | |
| Pitch Type: Fine | |
| Tool Application: Helical Interpolation; Ramping; Slotting | |
| Cutting Edge Length (Decimal Inch): 2.4800 | |
| Counterbore Diameter (Decimal Inch): 0.5100 | |
| Complete Insert Compatibility: XOEX 180604FR-E10; XOEX 180608FR-E10; XOMX 180608TR-D16; XOEX 180663FR-E10; XOMX 180608TR-M14; XOMX 180608R-M10; XOMX 180604TR-ME13; XOEX 180616FR-E10; XOEX 180624FR-E10; XOEX 180640FR-E10; XOMX 180604R-M10; XOEX 180650FR-E10; XOEX 180631FR-E10; XOEX 180620FR-E10 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Manufacturers Catalog Number: R220.69-03.00-18M5AN | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 20 | |
| Number Of Flutes: 5 | |
| Country of Origin: France |
| MSC# | 74157686 |
| Mfr# | 02710942 |
