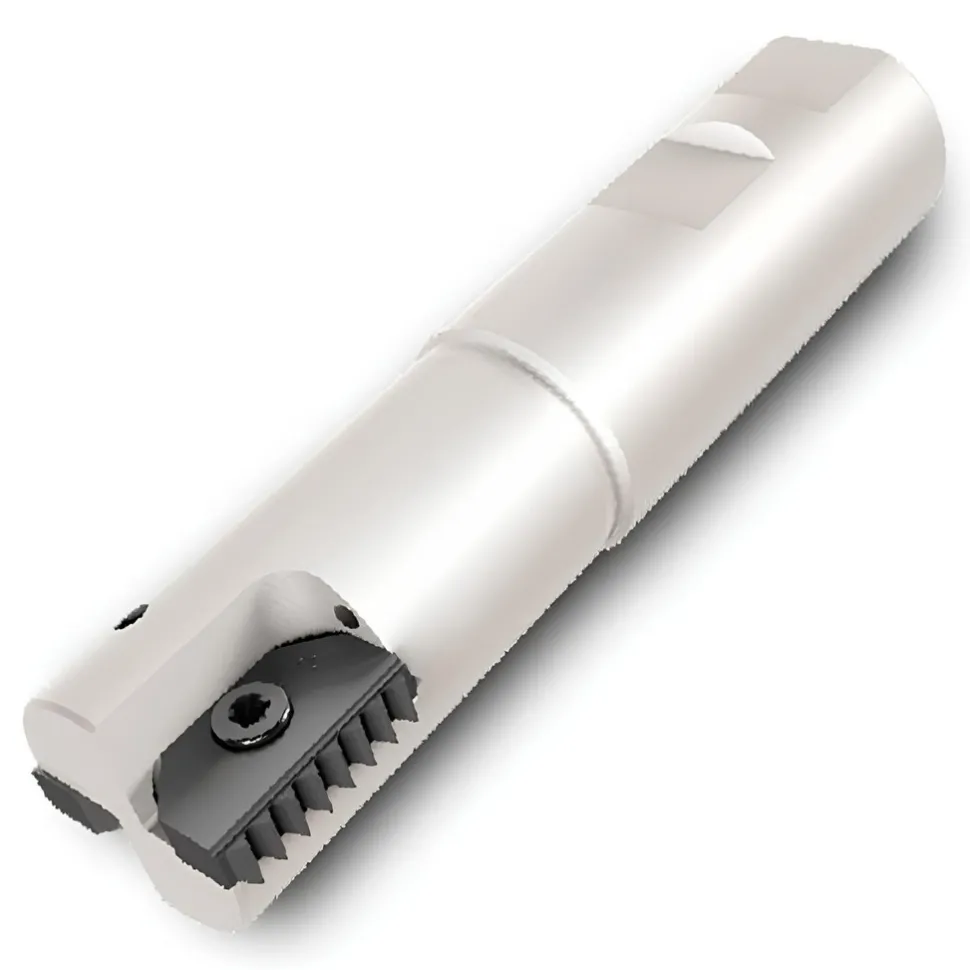

Indexable Thread Mill: 0.79″ Cut Dia, 1.54″ Max Hole Depth, Internal & External, Steel
126,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7900 | Maximum Hole Depth (Decimal Inch): 1.5400 |
| Maximum Cutting Length (Decimal Inch): 0.5510 | Compatible Insert Style: LYEU |
| Compatible Insert Size Code: 14 | Toolholder Style: MTED-2 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Insert Holding Method: Screw |
| Number of Threading Inserts: 2 | Overall Length (Decimal Inch): 3.6600 |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Cutting Direction: Right Hand |
| Toolholder Material: Steel | Thread Type: Internal; External |
| Series: MTED-2 | Flute Type: Straight |
| Cutting Tool Application: Threading | Neck Diameter (Decimal Inch): 0.6300 |
| Tool Application: Thread Milling | Tool Performance: General Purpose |
| Primary Workpiece Material: Universal | Number Of Flutes: 2 |
| Coolant Through: Yes | UNSPSC Code: 23291800 |
| Cutting Diameter (Decimal Inch): 0.7900 | |
| Maximum Hole Depth (Decimal Inch): 1.5400 | |
| Maximum Cutting Length (Decimal Inch): 0.5510 | |
| Compatible Insert Style: LYEU | |
| Compatible Insert Size Code: 14 | |
| Toolholder Style: MTED-2 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Insert Holding Method: Screw | |
| Number of Threading Inserts: 2 | |
| Overall Length (Decimal Inch): 3.6600 | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Cutting Direction: Right Hand | |
| Toolholder Material: Steel | |
| Thread Type: Internal; External | |
| Series: MTED-2 | |
| Flute Type: Straight | |
| Cutting Tool Application: Threading | |
| Neck Diameter (Decimal Inch): 0.6300 | |
| Tool Application: Thread Milling | |
| Tool Performance: General Purpose | |
| Primary Workpiece Material: Universal | |
| Number Of Flutes: 2 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291800 |
| MSC# | 98109747 |
| Mfr# | 2945175 |
